MAT & CARPET

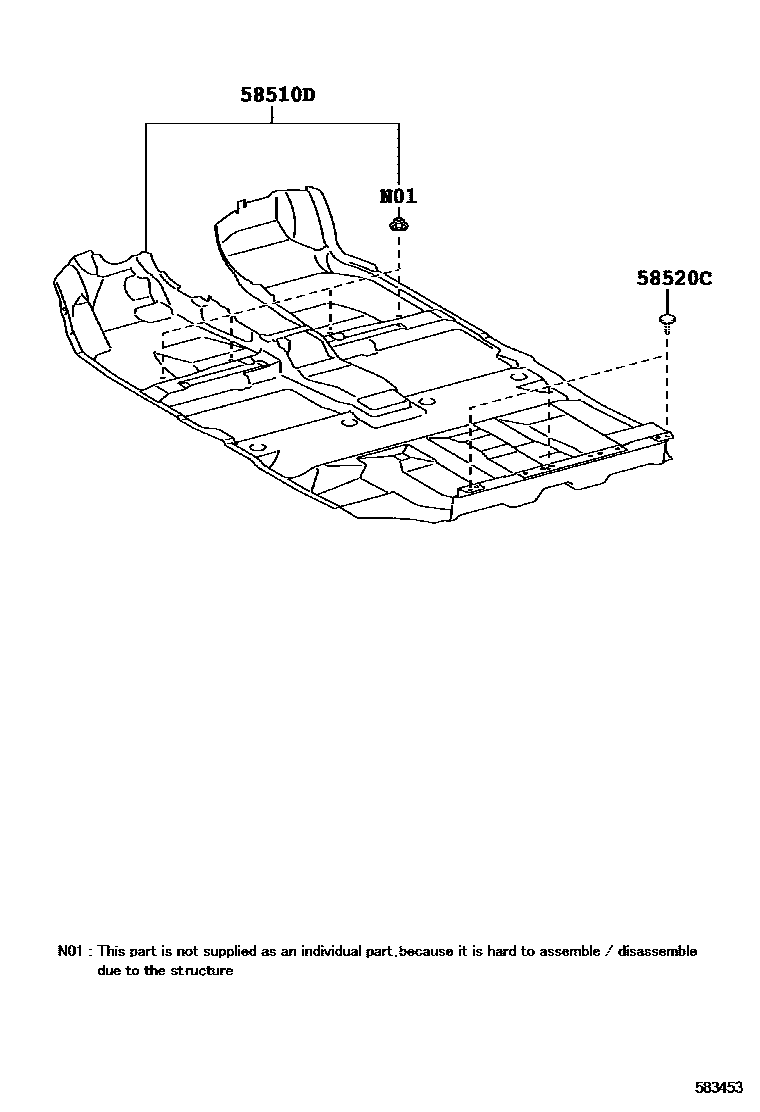

Parts diagram

58510DCARPET ASSY, FLOOR, FRONT

main58510-0E020-A0i200901-201204

IVORY,TRIM0#

main58510-0E020-B0i200901-201204

LT.GRAY,TRIM1#

main58510-0E020-C0i200901-201204

BLACK,TRIM2#

main58510-0E160-A0i201204

IVORY,TRIM0#

main58510-0E160-B0i201204

LT GRAY,TRIM1#

main58510-0E160-C0i201204

BLACK,TRIM2#,4#

main58510-0E170-C0i201207

BLACK,TRIM2#,3#

main58510-0E280-A0i201403

IVORY,TRIM0#

main58510-0E280-B0i201403

LT.GRAY,TRIM1#

main58510-0E280-C0i201403

BLACK,TRIM2#,4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0×3i200901-201204

BLACK

2 parts on this diagram · 3 diagrams in section
