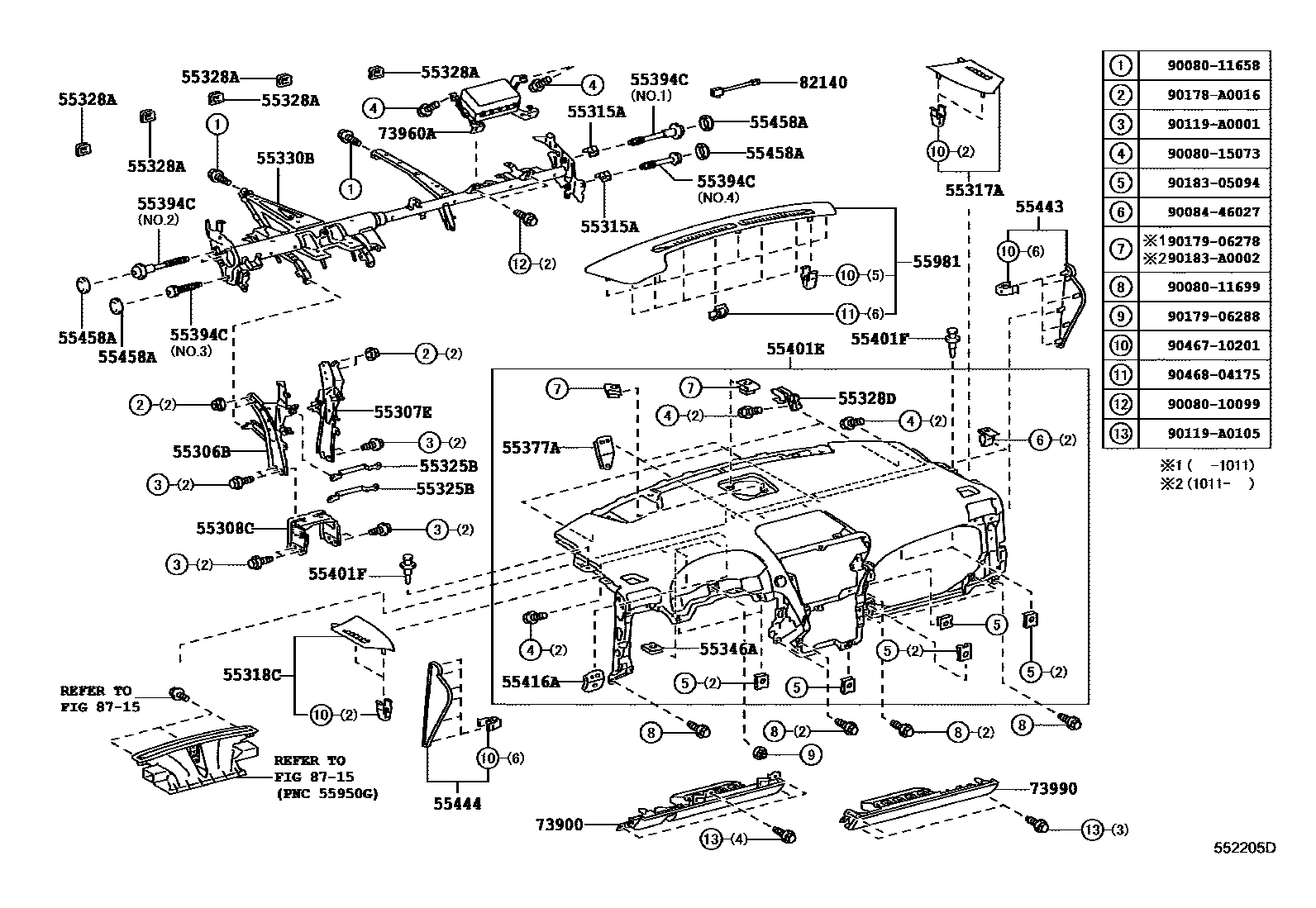

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-0E020iGGL1#..NAP200901-201204

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0E020iGGL1#..NAP200901-201204

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0E020iGGL1#,GYL1#..NAP201204

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iGGL1#..NAP200901-201204

55317APANEL, INSTRUMENT SIDE, RH

main55317-0E020-C0iGGL15..NAP..8FC201310

BLACK,TRIM2#,3#

main55317-0E020-E0iGGL15..NAP..6FC;GGL10,GYL1#..NAP201204

DK. BROWN,TRIM0#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0E030-C0iGGL15..NAP..8FC201310

BLACK,TRIM2#,3#

main55318-0E030-E0iGGL1#..NAP..6FC201204

DK. BROWN,TRIM0#

main55318-0E100-C0iGYL1#..NAP201403

BLACK,TRIM1#,2#,4#

main55318-0E100-E0iGYL1#..NAP201403

DK. BROWN,TRIM0#

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-0E020×2iGYL1#..NAP201204-201506

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-48110×5iGGL1#..NAP200901-201204

55328DPIN, INSTRUMENT PANEL, NO.3

main55328-50160×2iGGL1#..NAP200901-201204

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0E020iGGL1#..NAP200901-201204

main55330-0E050iGGL1#,GYL1#..NAP201204

55346ACLIP, INSTRUMENT PANEL, NO.2

main55345-12060×2iGGL1#..NAP200901-201204

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-0E030×2iGGL1#..NAP200901-201204

55394CBOLT, INSTRUMENT PANEL

main55394-48030iGGL1#..NAP200901-201204

NO.1

main55394-48040×2iGGL1#..NAP200901-201204

NO.2

main55394-48050iGGL1#,GYL1#..NAP201204

NO.3

main55394-48060iGGL1#..NAP200901-201204

NO.4

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0E030-C0iGGL1#..NAP201204

BLACK,TRIM1#,2#,3#,4#

main55401-0E030-E0iGGL1#..NAP200901-201204

DK. BROWN,TRIM0#

main55401-0E080-C0iGYL1#..NAP201403

BLACK,TRIM1#,2#,4#

main55401-0E080-E0iGYL1#..NAP201403

DK. BROWN,TRIM0#

55401FCLIP(FOR SAFETY PAD)

main52161-02020×2iGGL1#,GYL1#..NAP201204

55416ARETAINER, METER HOOD, NO.1

main55416-0E010×2iGGL1#..NAP200901-201204

55443GARNISH, INSTRUMENT PANEL, RH

main55443-0E010-C0iGGL1#..NAP200901-201204

BLACK,TRIM1#,2#

main55443-0E010-E0iGGL1#..NAP200901-201204

DK. BROWN,TRIM0#

55444GARNISH, INSTRUMENT PANEL, LH

main55444-0E020-C0iGGL1#..NAP200901-201204

BLACK,TRIM1#,2#

main55444-0E020-E0iGGL1#..NAP200901-201204

DK. BROWN,TRIM0#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×5iGGL1#..NAP200901-201204

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0E020-C0iGGL1#..NAP200901-201204

BLACK,TRIM1#,2#

main55981-0E020-E0iGGL1#..NAP200901-201204

DK. BROWN,TRIM0#

main55981-0E030-C0iGYL15..NAP201403

HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,4#

main55981-0E030-E0iGGL1#,GYL15..NAP201204

HEAD UP DISPLAY-WITH,DK. BROWN,TRIM0#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-0E020-A0iGGL1#..NAP200901-201204

IVORY,TRIM0#

main73900-0E020-B0iGGL1#..NAP200901-201204

LT.GRAY,TRIM1#

main73900-0E020-C0iGGL1#..NAP200901-201204

BLACK,TRIM2#

main73900-0E021-A0iGGL1#,GYL1#..NAP201204

IVORY,TRIM0#

main73900-0E021-C0iGGL1#..NAP201204

BLACK,TRIM1#,2#,3#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0E020iGGL1#..NAP200901-201204

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-0E010-A0iGGL1#..NAP200901-201204

IVORY,TRIM0#

main73990-0E010-B0iGGL1#..NAP200901-201204

LT.GRAY,TRIM1#

main73990-0E010-C0iGGL1#..NAP200901-201204

BLACK,TRIM2#

main73990-0E011-A0iGGL1#,GYL1#..NAP201204

IVORY,TRIM0#

main73990-0E011-C0iGGL1#..NAP201204

BLACK,TRIM1#,2#,3#,4#

82140WIRE ASSY, INSTRUMENT PANEL

main82140-48010iGGL1#..NAP200901-201204

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9008010099

main90080-10099

9008011658

main90080-11658

9008011699

main90080-11699

9008015073

main90080-15073

9008446027

main90084-46027

90119A0001

main90119-A0001

90119A0105

main90119-A0105

90178A0016

main90178-A0016

9017906278

main90179-06278

9017906288

main90179-06288

9018305094

main90183-05094

90183A0002

main90183-A0002

9046710201

main90467-10201

9046804175

main90468-04175

39 parts on this diagram · 4 diagrams in section
