52115JSUPPORT, FRONT BUMPER SIDE, RH

main52115-0E030i200901-201204

52116GSUPPORT, FRONT BUMPER SIDE, LH

main52116-0E020i200901-201204

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0E020i200901-201204

main53201-0E100i201403

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0E020i200901-201204

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0E020i200901-201204

main53203-0E100i201403

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0E020i200901-201204

53216ASUPPORT, RADIATOR, UPPER

main53216-0E020i200901-201204

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0E011i200901-201204

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0E020i200901-201204

main53293-0E070i201204

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0E020i200901-201204

main53294-0E070i201204

53295ESEAL, COOL AIR INTAKE DUCT

main53295-0E021i200901-201204

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0E020i200901-201204

main53701-0E070i201403-201408

main53701-0E071i201409-201411

main53701-0E072i201411

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0E020i200901-201204

main53702-0E021i201305-201408

main53702-0E022i201409-201411

main53702-0E023i201411

53711BAPRON, FRONT FENDER, FRONT RH

main53711-0T010i200901-201112

main53711-0T011i201201-201204

53712BAPRON, FRONT FENDER, FRONT LH

main53712-0T010i200901-201204

53717PLATE, FENDER APRON, RH

main53717-0E020i200901-201204

53718PLATE, FENDER APRON, LH

main53718-0E020i200901-201204

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-0T900i200901-201204

main53731-0T903i201411

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-0T900i200901-201204

main53732-0T902i201411

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-0T010i200901-201204

main53733-0T011i201408

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-0T010i200901-201204

main53734-0T011i201408

53736SEAL, FRONT FENDER APRON, RH

main53736-07021i200901-201204

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10170-C0×2i200901-201204

BLACK

53737BSEAL, FRONT FENDER APRON, LH

main53737-06040i200901-201204

main53737-48060i201403

53737LGUSSET, FRONT FENDER APRON WIND GUIDE, RH

main53707-0T010i200901-201204

53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH

main53738-0T010i200901-201204

main53738-0T011i201305

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-0E010i200901-201204

53784AINSULATOR, APRON FRONT FENDER, LH

main53784-0E010i200901-201204

53795ACOVER, ENGINE ROOM, SIDE

main53795-0E031i200901-201204

main53795-48091i201403

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-0E011i200901-201204

main53796-48091i201403

53835EBRACE, FRONT FENDER TO APRON, RH

main53835-0E020i200901-201204

53836EBRACE, FRONT FENDER TO APRON, LH

main53836-0E020i200901-201204

55101PANEL SUB-ASSY, DASH

main55101-0E020i200901-200908

main55101-0E021i200909-201204

main55101-0E022i201405

main55101-0E090i201403-201404

main55101-0E091i201405

55210INSULATOR ASSY, DASH PANEL

main55210-0E030i200901-201204

55210ACLIP

main90467-13079×4i200901-201204

55210CCLIP

main90467-06197×8i200901-201204

55219APACKING, DASH PANEL HOLE COVER

main55219-0E020i200901-201204

55223AINSULATOR, DASH PANEL, OUTER

main55223-0E020i200901-201204

main55223-0E080i201309

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×4i200901-201204

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-0E020i200901-201204

57167DREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH

main57167-0E020i200901-201204

57168DREINFORCEMENT, FRONT CROSSMEMBER SIDE, LH

main57168-0E020i200901-201204

58191BFOOTREST, FRONT FLOOR

main58191-0E020i200901-201110

main58191-0E021i201111-201204

58441HCOVER, BATTERY SERVICE HOLE

main58441-0E011i200901-201204

7404ASH RECEPTACLE

→ Go to FIG 74-04

9008010342

main90080-10342

9008010343

main90080-10343

9008011544

main90080-11544

9008011726

main90080-11726

9018906150

main90189-06150

9046707211

main90467-07211

9046708180

main90467-08180

90467A0035

main90467-A0035

9054109125

main90541-09125

9054115037

main90541-15037

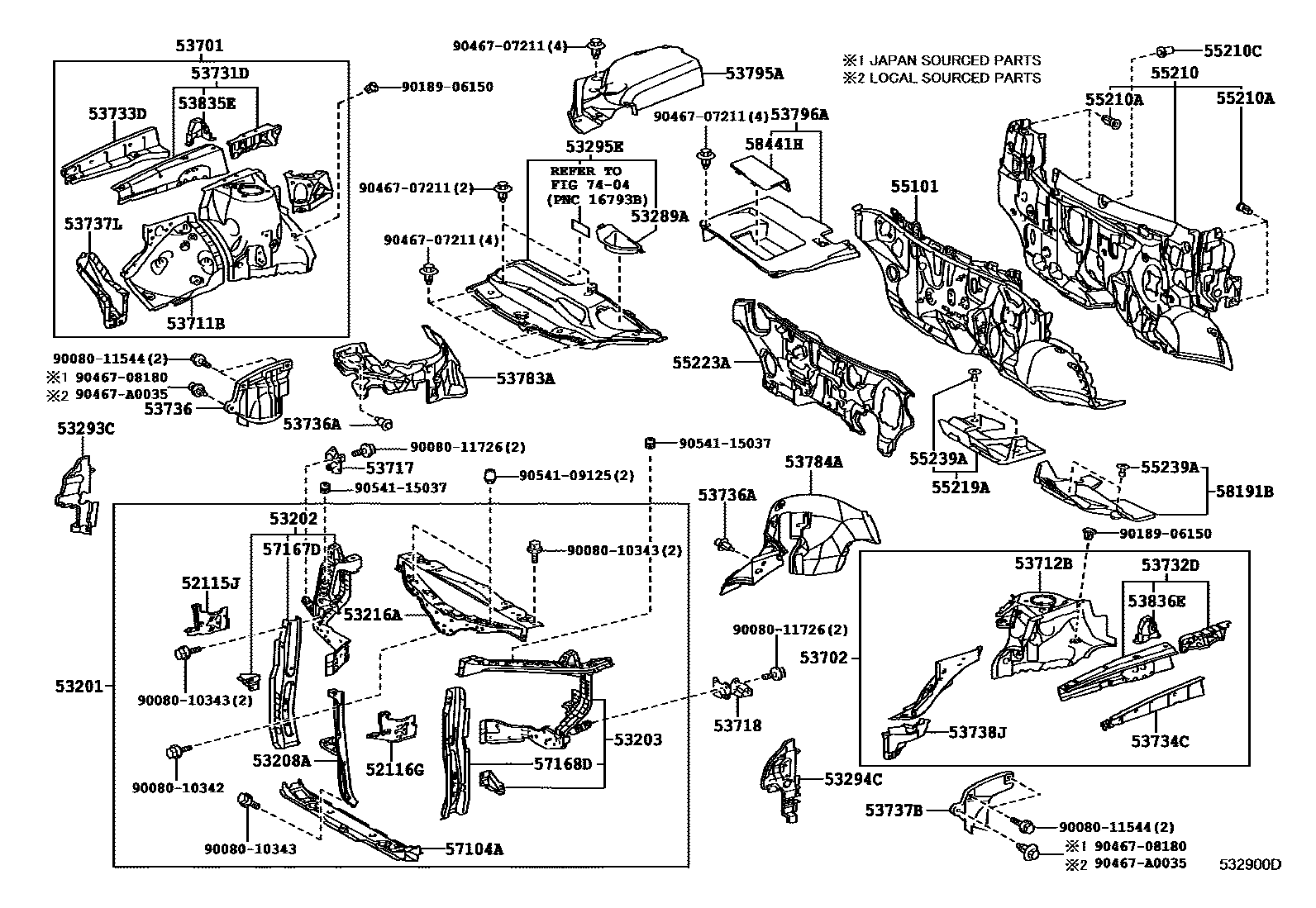

FRONT FENDER APRON & DASH PANEL
