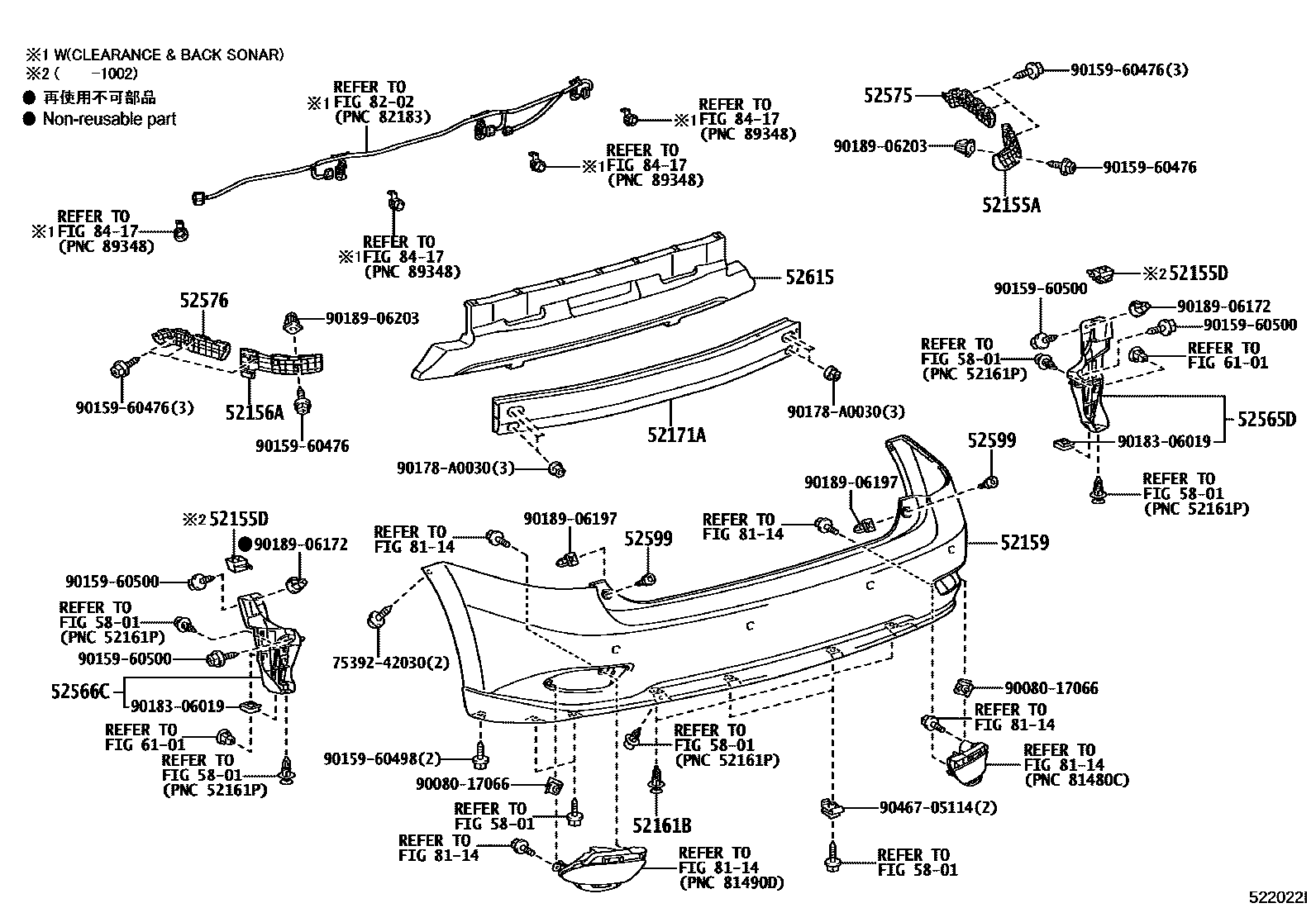

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0E020iGGL1#..NAP200901-201001

main52155-0E021iGGL1#..NAP201001-201204

52155DSUPPORT, REAR BUMPER SIDE

main52154-0E010×2iGGL1#..NAP200901-201002

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0E020iGGL1#..NAP200901-201001

main52156-0E021iGGL1#..NAP201001-201204

52159COVER, REAR BUMPER

main52105-0E901supersedes 52105-0E902iGGL1#..NAP200901-201001

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52105-0E903supersedes 52105-0E902iGGL1#,GYL1#..NAP201204-201510

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

52161BPIECE, REAR BUMPER

main52161-02020×2iGGL1#..NAP200901-201204

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-0E030iGGL1#..NAP200901-201006

main52171-0E031iGGL1#..NAP201007-201204

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-0E010iGGL1#..NAP200901-201202

main52565-0E020iGGL1#..NAP201202-201204

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-0E010iGGL1#..NAP200901-201202

main52566-0E020iGGL1#..NAP201202-201204

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0E020iGGL1#..NAP200901-201204

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0E020iGGL1#..NAP200901-201204

52599STOPPER, REAR BUMPER, UPPER

main52599-48040×2iGGL1#..NAP200901-200902

main52599-48041×2iGGL1#..NAP200903-201204

52615ABSORBER, REAR BUMPER ENERGY

main52615-0E020iGGL1#..NAP200901-201204

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

8114REAR SIDE MARKER LAMP

→ Go to FIG 81-14

8202WIRING & CLAMP

→ Go to FIG 82-02

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9008017066

main90080-17066

9015960476

main90159-60476

9015960498

main90159-60498

9015960500

main90159-60500

90178A0030

main90178-A0030

9018306019

main90183-06019

9018906172

main90189-06172

9018906197

main90189-06197

9018906203

main90189-06203

9046705114

main90467-05114

28 parts on this diagram · 1 diagram in section
