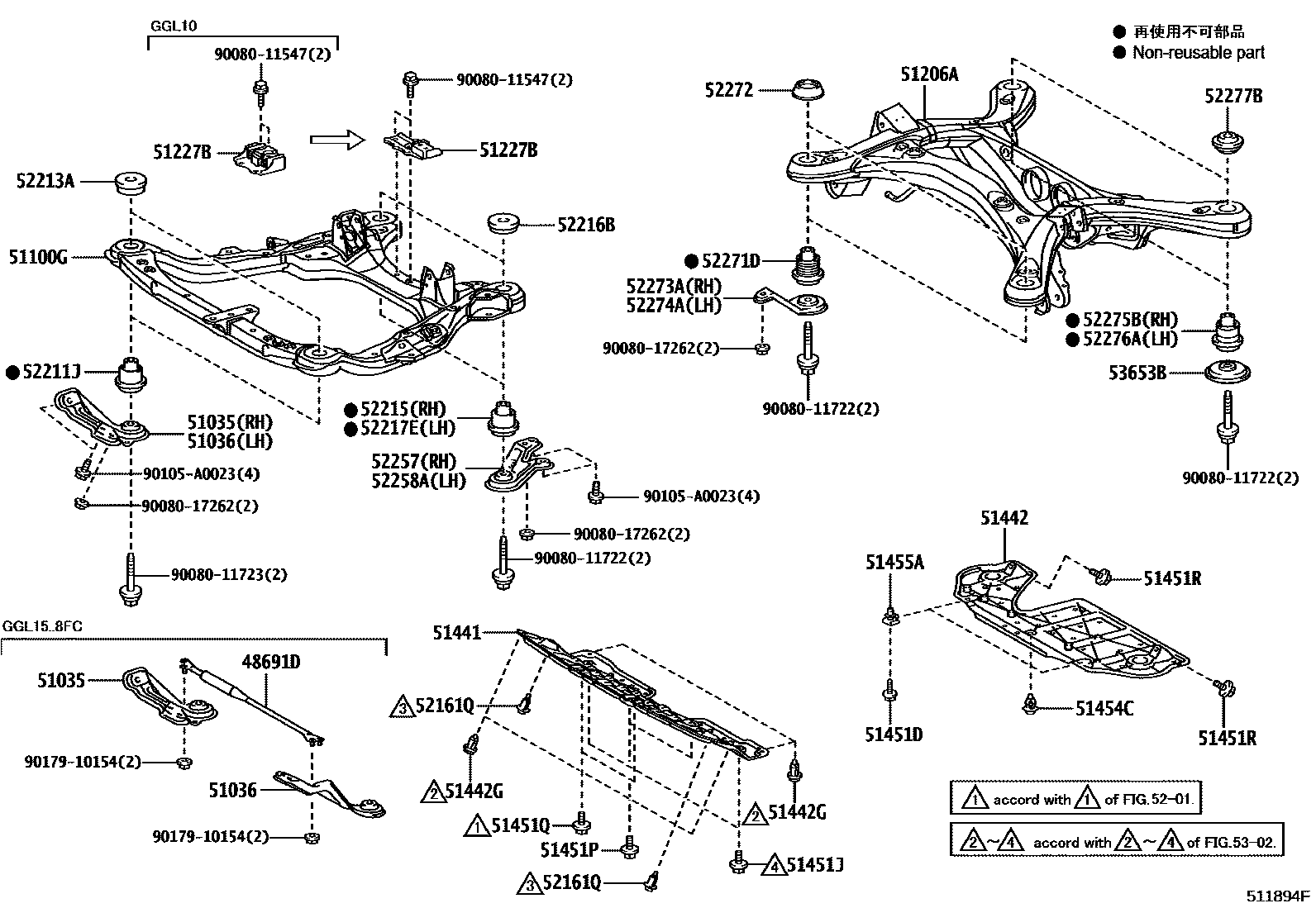

SUSPENSION CROSSMEMBER & UNDER COVER
48691DDAMPER, SUSPENSION TOWER
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51100GFRAME ASSY, FRONT
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51441COVER, ENGINE UNDER, NO.1
51442COVER, ENGINE UNDER, NO.2
51442GCLIP, ENGINE UNDER COVER, NO.1
51451DSCREW, NO.1
51451JBOLT, NO.1
51451PBOLT, NO.2
51451QBOLT, NO.3
51451RBOLT, NO.4
51454CSILENCER, ENGINE UNDER COVER, REAR
51455ASEAL, ENGINE UNDER COVER, NO.1
52161QPIECE, FRONT BUMPER
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
53653BBRACE, REAR SUSPENSION, LOWER
9008011547
main90080-11547
9008011722
main90080-11722
9008011723
main90080-11723
9008017262
main90080-17262
90105A0023
main90105-A0023
9017910154
main90179-10154
39 parts on this diagram · 2 diagrams in section
