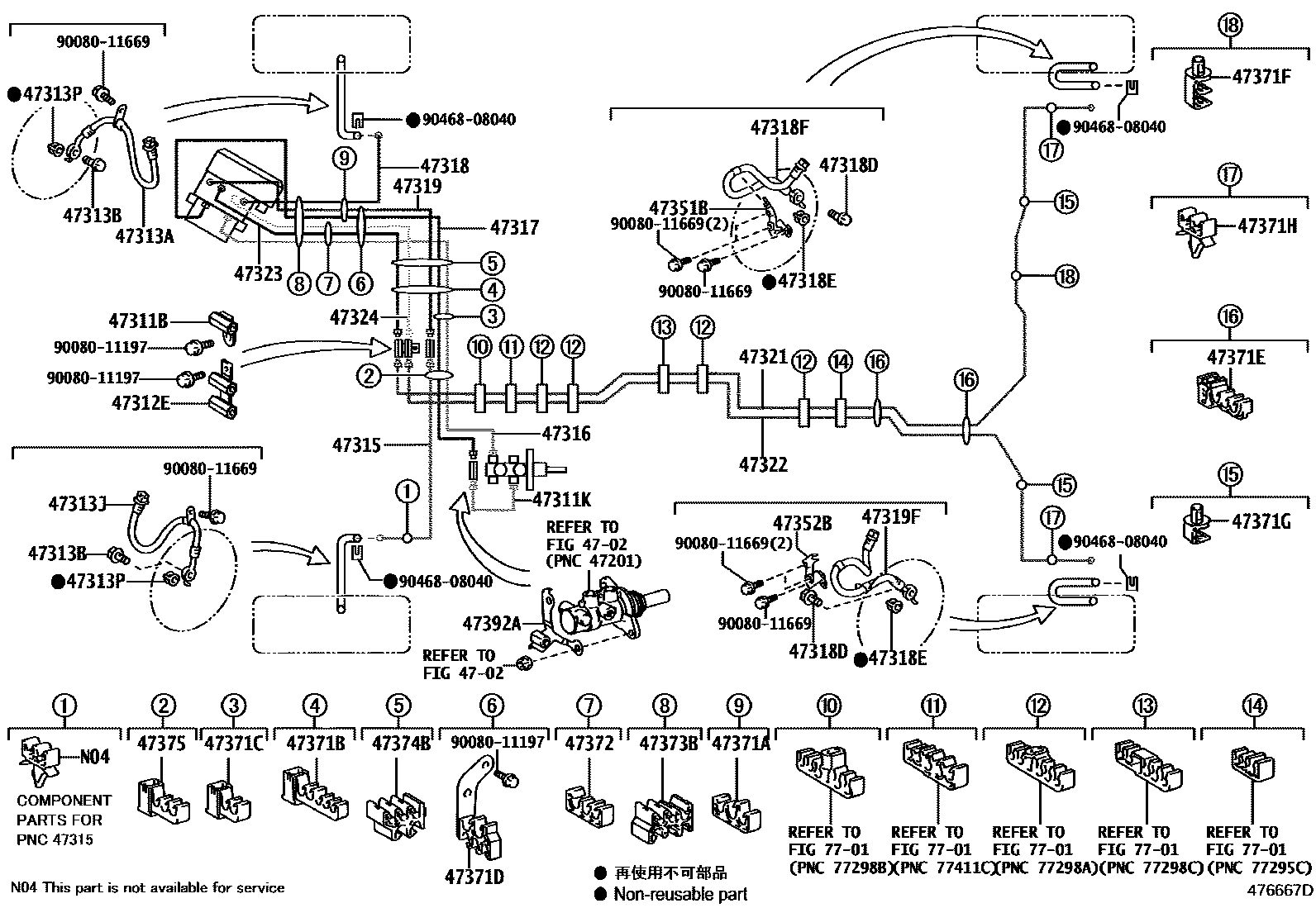

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10213iGGL1#..NAP200901-201204

main90412-10261iGYL1#..NAP201403

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-48040iGGL1#..NAP200901-201204

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10246iGGL1#..NAP200901-201204

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-A2052iGGL1#..NAP200901-201204

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGGL1#..NAP200901-201204

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-A2053iGGL1#..NAP200901-201204

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iGGL1#..NAP200901-201204

47315TUBE, FRONT BRAKE, NO.5

main47315-0E020iGGL1#..NAP200901-201204

main47315-0E110iGYL1#..NAP201403

47316TUBE, FRONT BRAKE, NO.6

main47316-0E030iGGL1#..NAP200901-201204

main47316-0E100iGYL1#..NAP201403

47317TUBE, FRONT BRAKE, NO.7

main47317-0E030iGGL1#..NAP200901-201204

main47317-0E100iGYL1#..NAP201403

47318TUBE, FRONT BRAKE, NO.8

main47318-0E030iGGL1#..NAP201204

main47318-0E100iGYL1#..NAP201403

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGGL1#,GYL1#..NAP201204

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iGGL1#..NAP200901-201204

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-A2041iGGL1#..NAP200901-201204

47319TUBE, FRONT BRAKE, NO.9

main47319-0E030iGGL1#..NAP200901-201204

main47319-0E120iGYL1#..NAP201403

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-A2041iGGL1#..NAP200901-201204

47321TUBE, REAR BRAKE, NO.1

main47321-0E020iGGL1#..NAP200901-201204

main47321-0E090iGYL1#..NAP201403

47322TUBE, REAR BRAKE, NO.2

main47322-0E020iGGL1#..NAP200901-201204

main47322-0E090iGYL1#..NAP201403

47323TUBE, REAR BRAKE, NO.3

main47323-0E030iGGL1#..NAP201204

main47323-0E120iGYL1#..NAP201403

47324TUBE, REAR BRAKE, NO.4

main47324-0E030iGGL1#..NAP200901-201204

main47324-0E120iGYL1#..NAP201403

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-0E010iGGL1#,GYL1#..NAP201204

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-0E010iGGL1#..NAP200901-201204

47371ACLAMP, BRAKE TUBE, NO.1

main90464-A0002×2iGYL1#..NAP201403

main90464-A0006iGGL1#..NAP200901-201204

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D37iGYL1#..NAP201403

main90949-A1019iGGL1#..NAP201204

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00857×2iGYL1#..NAP201403

main90949-A1025iGGL1#..NAP200901-201204

47371DCLAMP, BRAKE TUBE, NO.8

main90949-A4012iGGL1#..NAP200901-201204

47371ECLAMP, BRAKE TUBE, NO.9

main90080-46359×2iGGL1#..NAP200901-201204

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D13iGGL1#..NAP200901-201204

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D17×2iGGL1#..NAP200901-201204

47371HCLAMP, BRAKE TUBE, NO.12

main90949-01D12×2iGGL1#..NAP200901-201204

47372CLAMP, BRAKE TUBE, NO.2

main90464-A0007iGGL1#..NAP200901-201204

main90949-01C85iGYL1#..NAP201403

47373BCLAMP, BRAKE TUBE, NO.3

main90464-A0008iGGL1#..NAP201204

main90949-01D21iGYL1#..NAP201403

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00904iGYL1#..NAP201403

main90949-A1015iGGL1#..NAP200901-201204

47375CLAMP, BRAKE TUBE, NO.5

main90949-04033iGYL1#..NAP201403

main90949-A1018iGGL1#..NAP201204

47392AWAY, BRAKE TUBE, NO.2

main47392-48010iGGL1#..NAP200901-201204

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9008011197

main90080-11197

9008011669

main90080-11669

9046808040

main90468-08040

40 parts on this diagram · 4 diagrams in section
