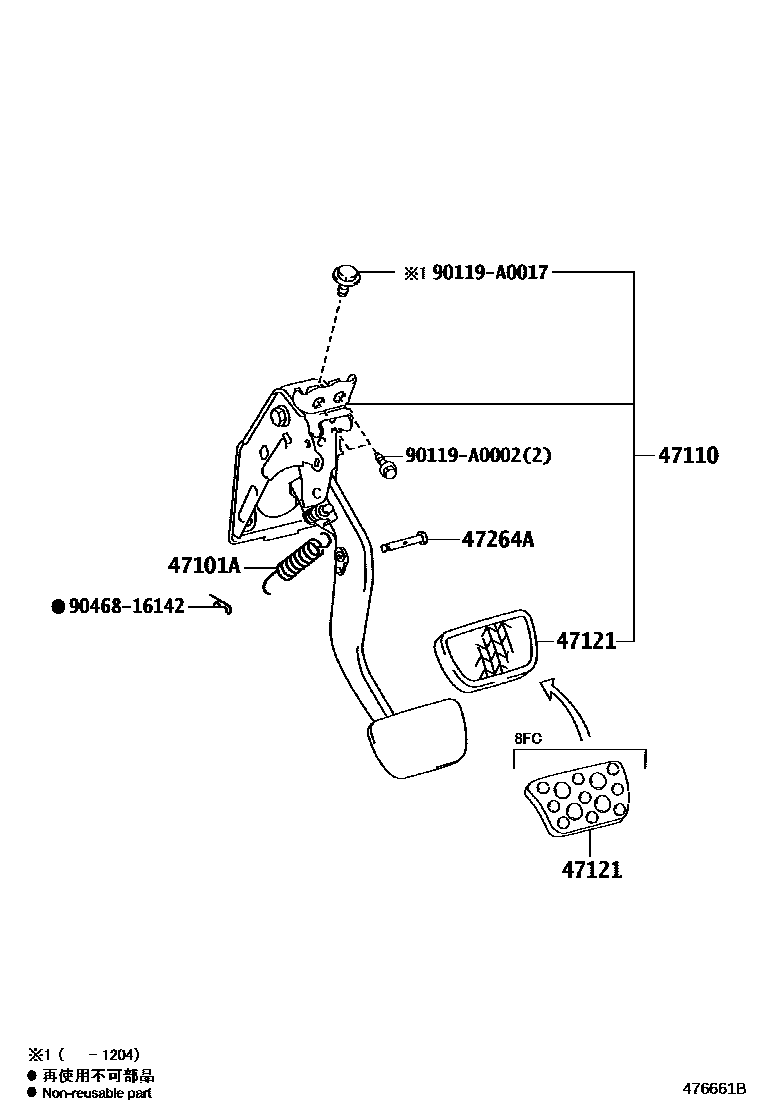

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-48171iGYL1#..NAP201403

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90080-50333iGGL1#..NAP200901-201004

main90507-12011iGYL1#..NAP201403

main90507-15004iGGL1#..NAP201004-201204

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0E020iGGL1#..NAP200901-201204

main47110-0E021iGGL1#..NAP..6FC201403

main47110-0E050iGGL15..NAP..8FC201207-201403

main47110-0E051iGGL15..NAP..8FC201403

47121PAD, BRAKE PEDAL

main47121-0E010iGGL1#..NAP200901-201204

main47121-50020iGYL1#..NAP201403

main47121-53010iGGL15..NAP..8FC201207

47264APIN(FOR PUSH ROD)

main90080-24138iGGL1#..NAP200901-201204

main90249-08051iGYL1#..NAP201403

90119A0002

main90119-A0002

90119A0017

main90119-A0017

9046816142

main90468-16142

8 parts on this diagram · 2 diagrams in section
