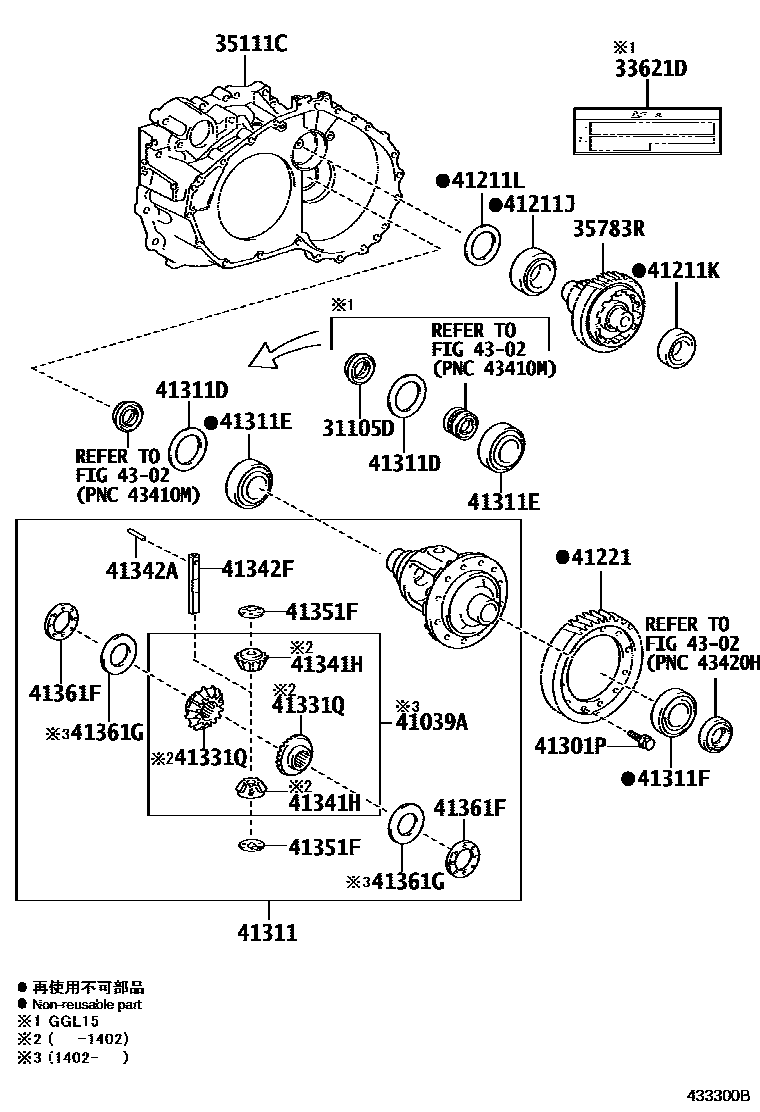

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
33621DLABEL, TRANSAXLE OIL INFORMATION
35783RGEAR, COUNTER DRIVEN
41039AGEAR KIT, DIFFERENTIAL
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=1.10 MARK 10
T=1.13,MARK 11
T=1.16,MARK 12
T=1.19,MARK 13
T=1.22,MARK 14
T=1.25,MARK 15
T=1.28,MARK 16
T=1.31,MARK 17
T=1.34,MARK 18
T=1.37,MARK 19
T=1.40,MARK 20
T=1.43,MARK 21
T=1.46,MARK 22
T=1.49,MARK 23
T=1.52,MARK 24
T=1.55,MARK 25
T=1.58,MARK 26
T=1.61,MARK 27
T=1.64,MARK 28
T=1.67,MARK 29
T=1.70,MARK 30
T=1.73,MARK 31
T=1.76,MARK 32
T=1.79,MARK 33
T=1.82,MARK 34
T=1.85,MARK 35
T=1.88,MARK 36
T=1.91,MARK 37
T=1.94,MARK 38
T=1.97,MARK 39
T=2.00,MARK 40
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.900
T=2.925
T=2.950
T=2.975
T=3.000
41221GEAR, FRONT DIFFERENTIAL RING
sub41221-73050
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
41331QGEAR, DIFFERENTIAL SIDE
41341HPINION, DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
4302
22 parts on this diagram · 2 diagrams in section
