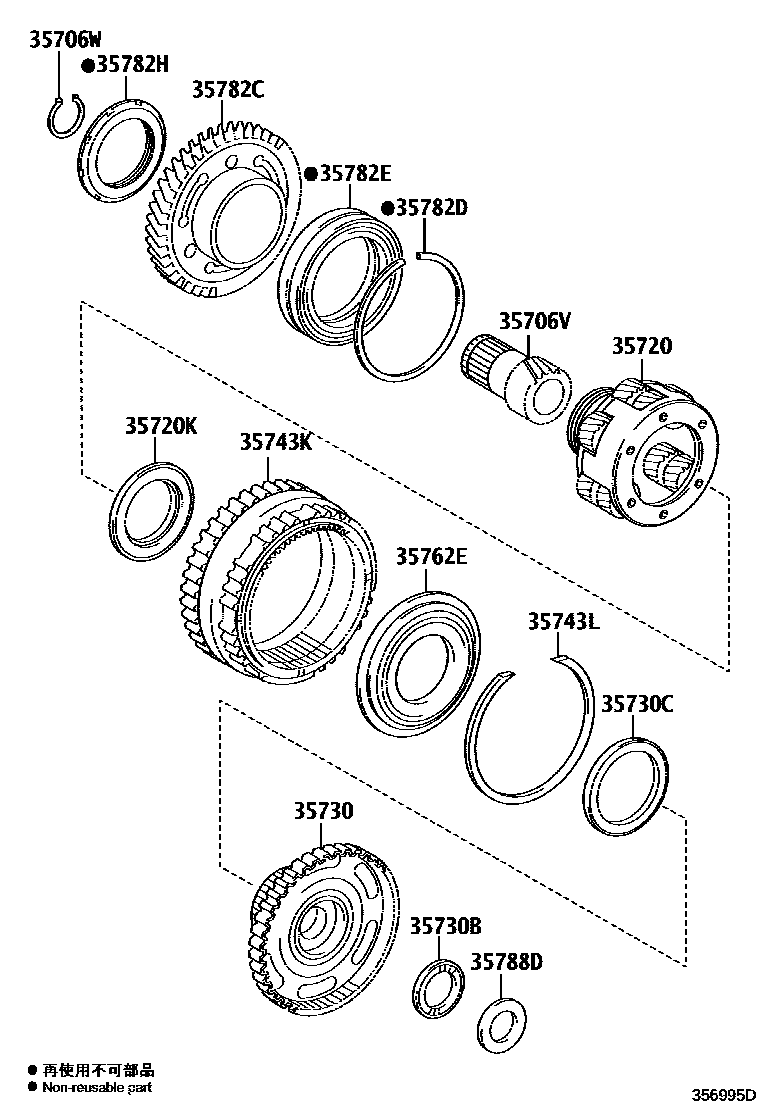

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35706VGEAR SUB ASSY, PLANETARY SUN
35706WRING, SNAP (FOR PLANETARY SUN GEAR)
35720GEAR ASSY, FRONT PLANETARY
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
35730GEAR ASSY, REAR PLANETARY SUN
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
35743GEAR, FRONT PLANETARY RING
35743KGEAR, PLANETARY RING
35743LRING, SNAP (FOR PLANETARY RING GEAR)
35762EFLANGE, PLANETARY RING GEAR
35782CGEAR, COUNTER DRIVE
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
35782EBEARING(FOR COUNTER DRIVE GEAR)
35782HNUT(FOR COUNTER DRIVE GEAR)
35788DRACE, THRUST BEARING, NO.3
16 parts on this diagram · 2 diagrams in section
