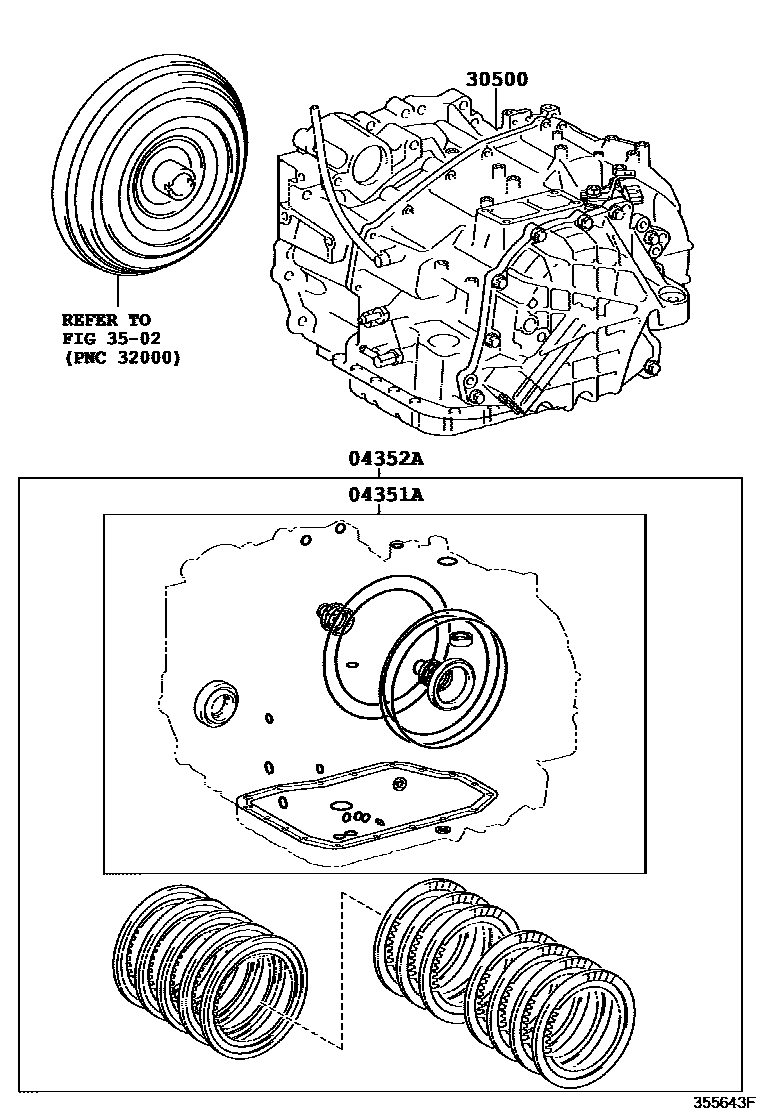

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U660E,U660F 0002 1U880F

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-07010iGGL1#..NAP200901-201204

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-07020iGGL1#..NAP200901-201204

30500TRANSAXLE ASSY, AUTOMATIC

main30500-0T010iGGL10..NAP200901-201204

U660E

main30500-0T011iGGL10..NAP201205-201309

U660E

main30500-0T012iGGL10..NAP201309-201510

U660E

main30500-0T021iGGL15..NAP201204-201205

U660F

main30500-0T022iGGL15..NAP..6FC201205-201309

U660F

main30500-0T023iGGL15..NAP..6FC201309-201510

U660F

main30500-48510iGGL15..NAP..8FC201207-201510

U880F

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

4 parts on this diagram · 2 diagrams in section
