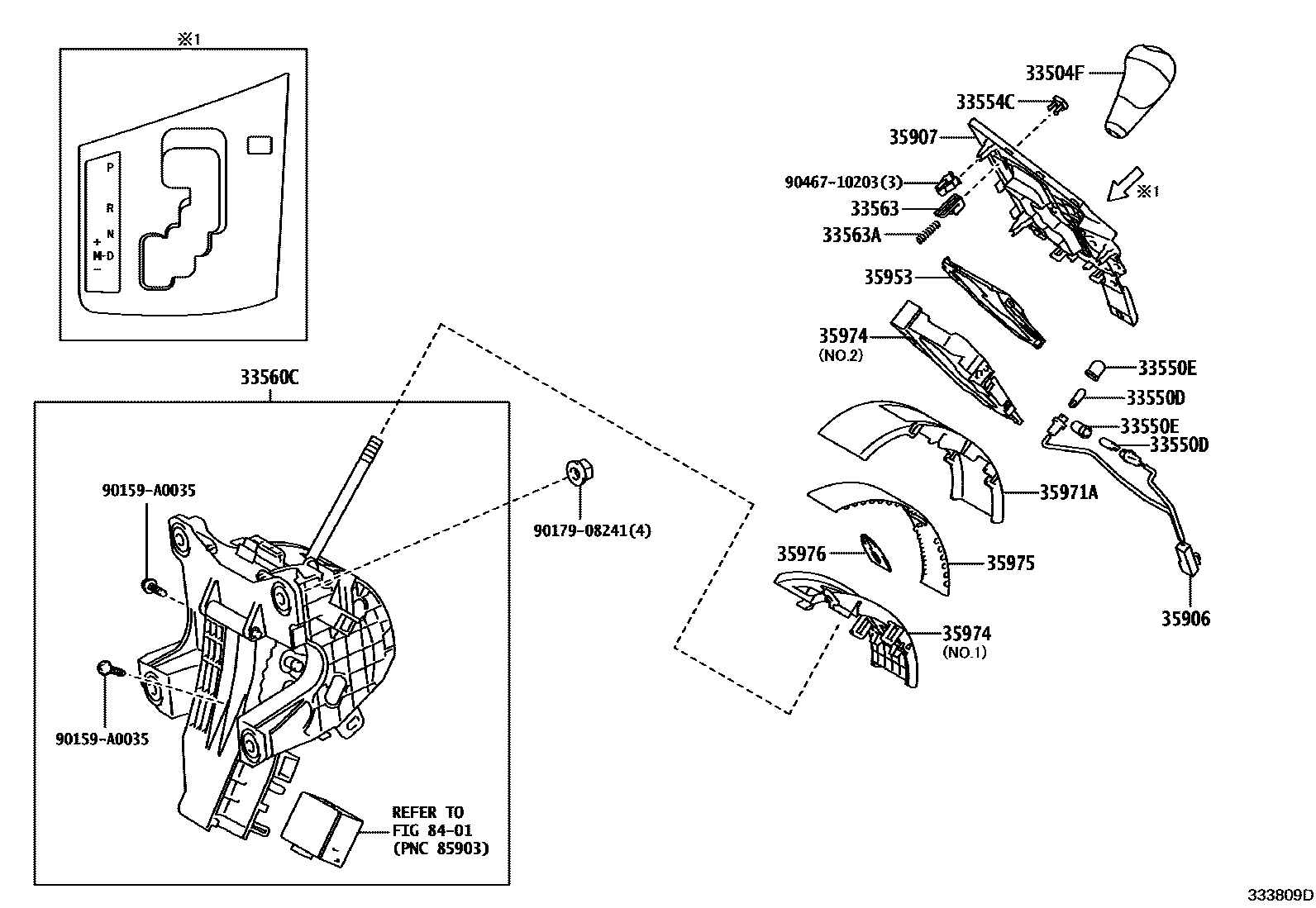

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,3#
STEERING WHEEL-WOOD,BLACK / DARK BROWN,TRIM1#,20
STEERING WHEEL-WOOD,BLACK / MEDIUM BROWN,TRIM20
STEERING WHEEL-WOOD,BLACK,TRIM20
STEERING WHEEL-WOOD,DARK BROWN / MED BROWN,TRIM0#
STEERING WHEEL-WOOD,DK. BROWN,TRIM0#
STEERING WHEEL-WOOD,BLACK & DK.BROWN,TRIM4#; STEERING WHEEL-WOOD,WITH(STEERING HEATER),BLACK & DK.BROWN,TRIM4#
STEERING WHEEL-WOOD,BLACK & MD.BROWN,TRIM2#
STEERING WHEEL-WOOD,BLACK & DARK GRAY,TRIM1#,2#; STEERING WHEEL-WOOD,WITH(STEERING HEATER),BLACK & DARK GRAY,TRIM1#,2#
STEERING WHEEL-WOOD,DK. BROWN & DK.BROWN,TRIM0#; STEERING WHEEL-WOOD,WITH(STEERING HEATER),DK. BROWN & DK.BROWN,TRIM0#
STEERING WHEEL-WOOD,DK. BROWN & MD.BROWN,TRIM0#
33550DBULB, POSITION INDICATOR LAMP
12V 2W
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,3#
DK. BROWN,TRIM0#
33560CLEVER ASSY, SHIFT, LOWER
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
35906WIRE SUB-ASSY, INDICATOR LAMP
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM0#
BLACK,TRIM1#,2#,3#,4#
35953GUIDE, POSITION INDICATOR LIGHT
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
NO.2
NO.1
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
90159A0035
main90159-A0035
9017908241
main90179-08241
9046710203
main90467-10203
18 parts on this diagram · 4 diagrams in section
