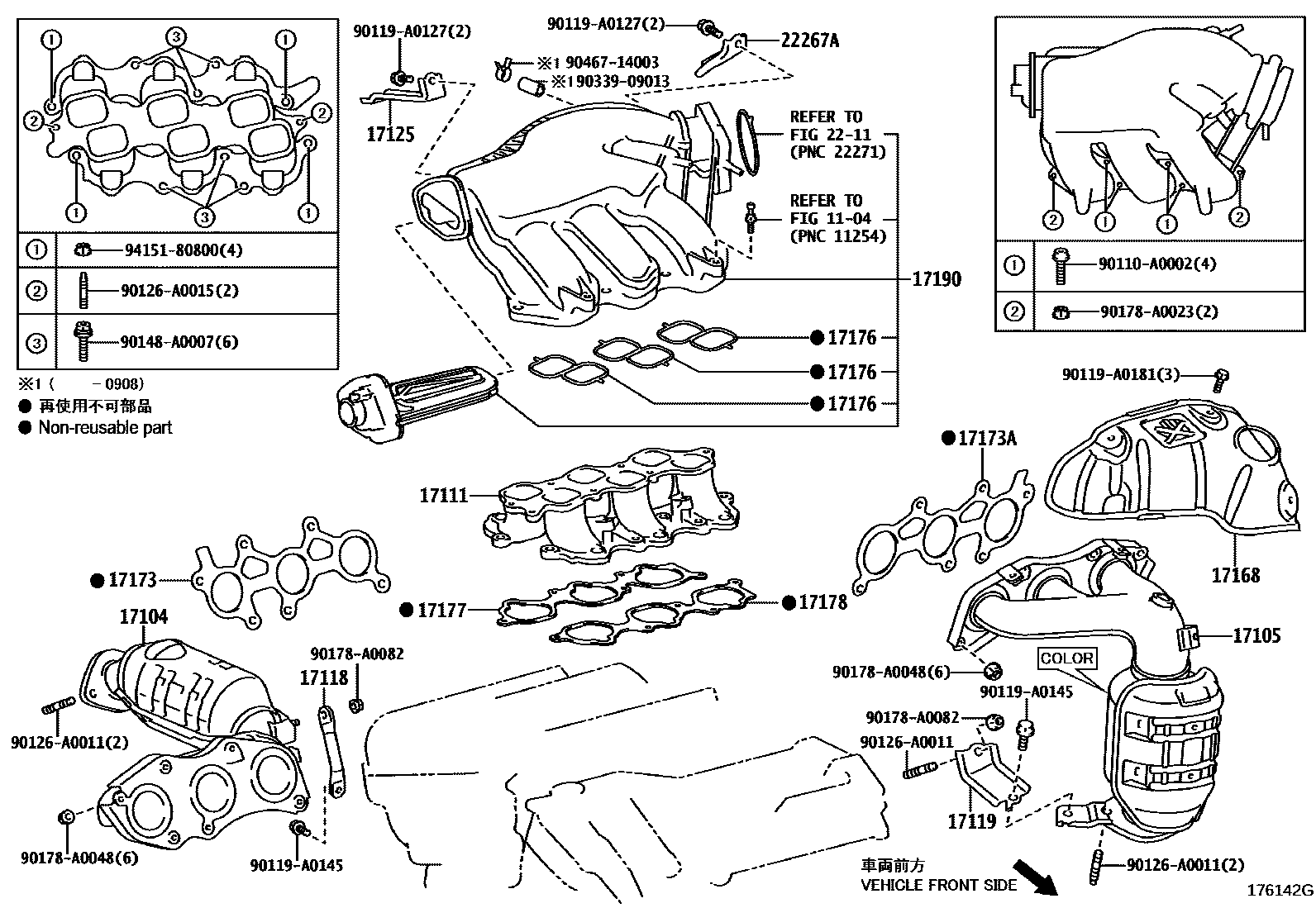

MANIFOLD
1104
17104MANIFOLD SUB-ASSY, EXHAUST, RH
PNC 17105 = PINK
PNC 17105 = BLUE
*114=TOYOTA/R31410/Y
17105MANIFOLD SUB-ASSY, EXHAUST, LH
COLOR = PINK
COLOR = BLUE
*114=TOYOTA/L31380/Y
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
(L)
(L)
17190TANK ASSY, INTAKE AIR SURGE
(L)
(L)
2211
22267ABRACKET, THROTTLE BODY
90110A0002
main90110-A0002
90119A0127
main90119-A0127
90119A0145
main90119-A0145
90119A0181
main90119-A0181
90126A0011
main90126-A0011
90126A0015
main90126-A0015
90148A0007
main90148-A0007
90178A0023
main90178-A0023
90178A0048
main90178-A0048
90178A0082
main90178-A0082
9033909013
main90339-09013
9046714003
main90467-14003
9415180800
main94151-80800
29 parts on this diagram · 2 diagrams in section
