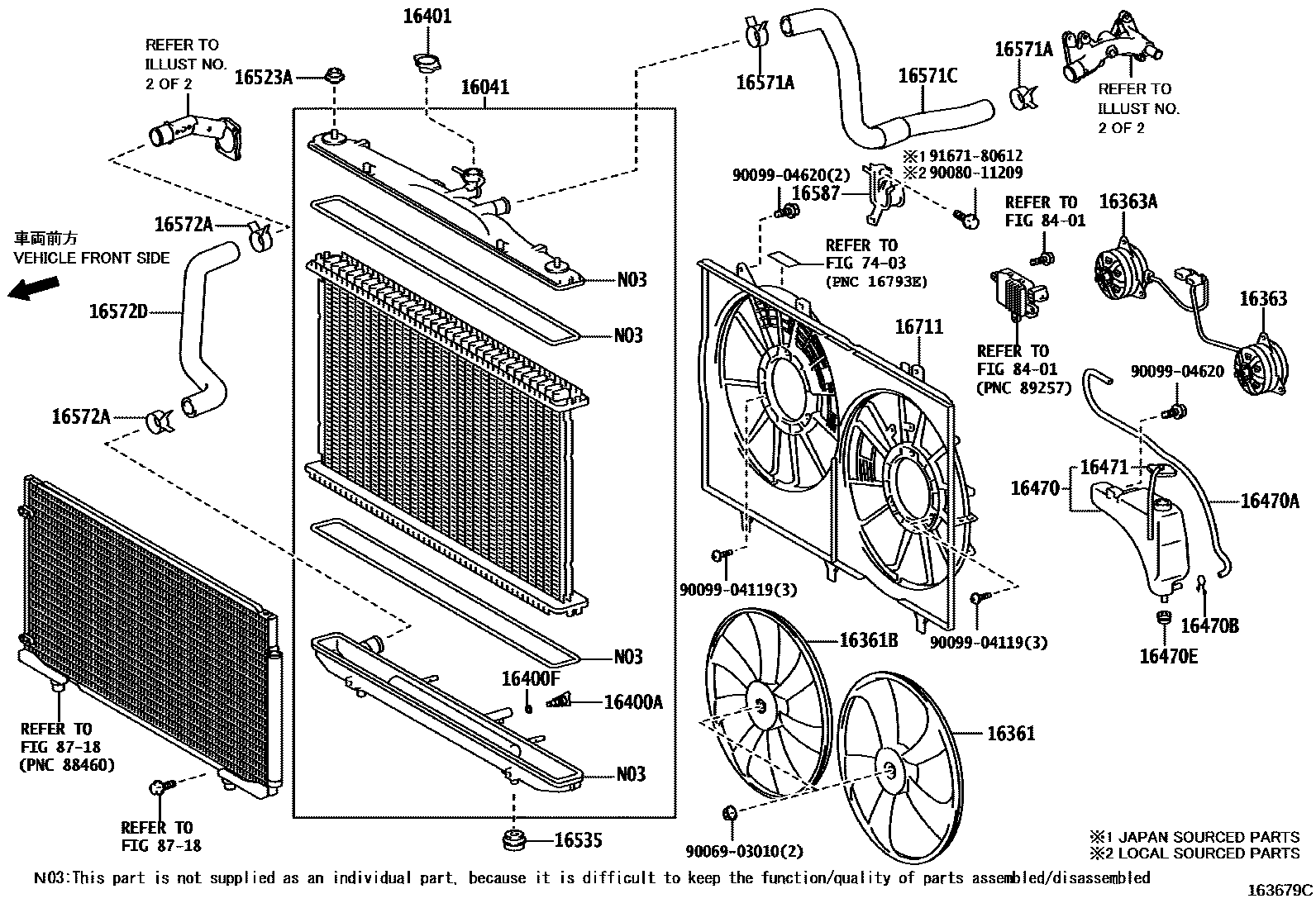

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
TOWING PACKAGE-3500LBS
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
TOWING PACKAGE-3500LBS
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16587CLAMP, RADIATOR PIPE
16711SHROUD, FAN
7403
8401
8718
9006903010
main90069-03010
9008011209
main90080-11209
9009904119
main90099-04119
9009904620
main90099-04620
9167180612
main91671-80612
29 parts on this diagram · 6 diagrams in section
