11011WASHER SET, CRANKSHAFT THRUST

main11011-0P030i200901-200906

STD,(L)

main11011-31060i200901-201204

STD,(J)

main11011-31080i201412

STD; STD,(J)

11711BEARING, CRANKSHAFT

main11071-0P030-01×2i200901-200906

MARK1,NO.2,(L):REFER R/M

main11071-0P030-02×2i200901-200906

MARK2,NO.2,(L):REFER R/M

main11071-0P030-03×2i200901-200906

MARK3,NO.2,(L):REFER R/M

main11071-0P030-04×2i200901-200906

MARK4,NO.2,(L):REFER R/M

main11071-0P030-05×2i200901-200906

MARK5,NO.2,(L):REFER R/M

main11071-0P050-01×2i200906-201204

MARK1,NO.2,REFER R/M

main11071-0P050-02×2i200906-201204

MARK2,NO.2,REFER R/M

main11071-0P050-03×2i200906-201204

MARK3,NO.2,REFER R/M

main11071-0P050-04×2i200906-201204

MARK4,NO.2,REFER R/M

main11071-0P050-05×2i200906-201204

MARK5,NO.2,REFER R/M

main11071-0P051-01×2i201204-201503

MARK1,NO.2,(L):REFER R/M

main11071-0P051-02×2i201204-201503

MARK2,NO.2,(L):REFER R/M

main11071-0P051-03×2i201204-201503

MARK3,NO.2,(L):REFER R/M

main11071-0P051-04×2i201204-201503

MARK4,NO.2,(L):REFER R/M

main11071-0P051-05×2i201204-201503

MARK5,NO.2,(L):REFER R/M

main11071-0P060-01×2i201503

MARK 1,NO.2,(L):REFER R/M

main11071-0P060-02×2i201503

MARK 2,NO.2,(L):REFER R/M

main11071-0P060-03×2i201503

MARK 3,NO.2,(L):REFER R/M

main11071-0P060-04×2i201503

MARK 4,NO.2,(L):REFER R/M

main11071-0P060-05×2i201503

MARK 5,NO.2,(L):REFER R/M

main11071-31031-01×2i200901-200906

MARK1,NO.2,(J):REFER R/M

main11071-31031-02×2i200901-200906

MARK2,NO.2,(J):REFER R/M

main11071-31031-03×2i201204-201502

MARK3,NO.2,(J):REFER R/M

main11071-31031-04×2i200901-200906

MARK4,NO.2,(J):REFER R/M

main11071-31031-05×2i201204-201502

MARK5,NO.2,(J):REFER R/M

main11071-31060-01×2i201503

MARK 1,NO.2,(J):REFER R/M; MARK 1,NO.2,REFER R/M

main11071-31060-02×2i201503

MARK 2,NO.2,(J):REFER R/M; MARK 2,NO.2,REFER R/M

main11071-31060-03×2i201503

MARK 3,NO.2,(J):REFER R/M; MARK 3,NO.2,REFER R/M

main11071-31060-04×2i201503

MARK 4,NO.2,(J):REFER R/M; MARK 4,NO.2,REFER R/M

main11071-31060-05×2i201503

MARK 5,NO.2,(J):REFER R/M; MARK 5,NO.2,REFER R/M

main11701-0P030-01×2i200901-200906

MARK1,NO.1,(L):REFER R/M

main11701-0P030-02×2i200901-200906

MARK2,NO.1,(L):REFER R/M

main11701-0P030-03×2i200901-200906

MARK3,NO.1,(L):REFER R/M

main11701-0P030-04×2i200901-200906

MARK4,NO.1,(L):REFER R/M

main11701-0P030-05×2i200901-200906

MARK5,NO.1,(L):REFER R/M

main11701-0P050-01×2i200906-201204

MARK1,NO.1,REFER R/M

main11701-0P050-02×2i200906-201204

MARK2,NO.1,REFER R/M

main11701-0P050-03×2i200906-201204

MARK3,NO.1,REFER R/M

main11701-0P050-04×2i200906-201204

MARK4,NO.1,REFER R/M

main11701-0P050-05×2i200906-201204

MARK5,NO.1,REFER R/M

main11701-0P051-01×2i201204-201503

MARK1,NO.1,(L):REFER R/M

main11701-0P051-02×2i201204-201503

MARK2,NO.1,(L):REFER R/M

main11701-0P051-03×2i201204-201503

MARK3,NO.1,(L):REFER R/M

main11701-0P051-04×2i201204-201503

MARK4,NO.1,(L):REFER R/M

main11701-0P051-05×2i201204-201503

MARK5,NO.1,(L):REFER R/M

main11701-0P060-01×2i201503

MARK 1,NO.1,(L):REFER R/M

main11701-0P060-02×2i201503

MARK 2,NO.1,(L):REFER R/M

main11701-0P060-03×2i201503

MARK 3,NO.1,(L):REFER R/M

main11701-0P060-04×2i201503

MARK 4,NO.1,(L):REFER R/M

main11701-0P060-05×2i201503

MARK 5,NO.1,(L):REFER R/M

main11701-31061-01×2i200901-200906

MARK1,NO.1,(J):REFER R/M

main11701-31061-02×2i200901-200906

MARK2,NO.1,(J):REFER R/M

main11701-31061-03×2i200901-200906

MARK3,NO.1,(J):REFER R/M

main11701-31061-04×2i200901-200906

MARK4,NO.1,(J):REFER R/M

main11701-31061-05×2i200901-200906

MARK5,NO.1,(J):REFER R/M

main11701-31090-01×2i201204-201502

MARK 1,NO.1,(J):REFER R/M

main11701-31090-02×2i201204-201502

MARK 2,NO.1,(J):REFER R/M

main11701-31090-03×2i201204-201502

MARK 3,NO.1,(J):REFER R/M

main11701-31090-04×2i201204-201502

MARK 4,NO.1,(J):REFER R/M

main11701-31090-05×2i201204-201502

MARK 5,NO.1,(J):REFER R/M

main11701-31100-01×2i201503

MARK 1,NO.1,(J):REFER R/M; MARK 1,NO.1,REFER R/M

main11701-31100-02×2i201503

MARK 2,NO.1,(J):REFER R/M; MARK 2,NO.1,REFER R/M

main11701-31100-03×2i201503

MARK 3,NO.1,(J):REFER R/M; MARK 3,NO.1,REFER R/M

main11701-31100-04×2i201503

MARK 4,NO.1,(J):REFER R/M; MARK 4,NO.1,REFER R/M

main11701-31100-05×2i201503

MARK 5,NO.1,(J):REFER R/M; MARK 5,NO.1,REFER R/M

13011RING SET, PISTON

main13011-0P030i200901-200909

STD

main13011-0P040i200909-201204

STD

main13011-31160i201403-201411

STD

main13011-31161i201412

STD

13041BEARING, CONNECTING ROD

main13041-0P040-01×6i200901-200906

MARK1,(L):REFER R/M

main13041-0P040-02×6i200901-200906

MARK2,(L):REFER R/M

main13041-0P040-03×6i200901-200906

MARK3,(L):REFER R/M

main13041-0P040-04×6i200901-200906

MARK4,(L):REFER R/M

main13041-0P080-01×6i200906-201104

MARK1,REFER R/M

main13041-0P080-02×6i200906-201104

MARK2,REFER R/M

main13041-0P080-03×6i200906-201104

MARK3,REFER R/M

main13041-0P080-04×6i200906-201104

MARK4,REFER R/M

main13041-0P081-01×6i201104-201204

MARK1,(L):REFER R/M

main13041-0P081-02×6i201104-201204

MARK2,(L):REFER R/M

main13041-0P081-03×6i201104-201204

MARK3,(L):REFER R/M

main13041-0P081-04×6i201104-201204

MARK4,(L):REFER R/M

main13041-31070-01×6i200901-200906

MARK1,(J),REFER R/M

main13041-31070-02×6i201204-201606

MARK 2,(J),REFER R/M

main13041-31070-03×6i201204-201606

MARK 3,(J),REFER R/M

main13041-31070-04×6i201204-201606

MARK 4,(J),REFER R/M

main13041-31100-01×6i201503-201506

MARK 1,REFER R/M

main13041-31100-02×6i201503-201506

MARK 2,REFER R/M

main13041-31100-03×6i201503-201506

MARK 3,REFER R/M

main13041-31100-04×6i201503-201506

MARK 4,REFER R/M

main13041-31110-01×6i201507

MARK 1,REFER R/M

main13041-31110-02×6i201507

MARK 2,REFER R/M

main13041-31110-03×6i201507

MARK 3,REFER R/M

main13041-31110-04×6i201507

MARK 4,REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-0P052×6i200901-200911

STD,(L)

main13101-0P053×6i200911-201204

STD,(L)

main13101-31110-A0×6i201403

STD,MARK A

main13101-31110-B0×6i201403

STD,MARK B

main13101-31110-C0×6i201403

STD,MARK C

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×12i201403

main90520-A0004×12i200901-201204

(L)

13201ROD SUB-ASSY, CONNECTING

main13201-09830×6i200901-201204

(L)

main13201-39135×6i200901-200906

(J)

main13201-39135-A0×6i201403-201503

MARK A

main13201-39135-B0×6i201403-201503

MARK B

main13201-39135-C0×6i201403-201503

MARK C

main13201-39137-A0×6i201503-201507

MARK A

main13201-39137-B0×6i201503-201507

MARK B

main13201-39137-C0×6i201503-201507

MARK C

main13201-39305-A0×6i201507

MARK A

main13201-39305-B0×6i201507

MARK B

main13201-39305-C0×6i201507

MARK C

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144×6i201204

13265BOLT, CONNECTING ROD

main13265-28010×12i200901-201204

13405FLYWHEEL SUB-ASSY

main13405-20010i201403

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i201403

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10048×8i201403

13411CRANKSHAFT

main13401-0P030i200901-201204

(L)

main13401-0P031i201507

(L)

main13401-31040i201204-201409

(J)

main13401-31041i201410

(J)

13471PULLEY, CRANKSHAFT

main13470-31030i200901-201204

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16004i200901-201204

main90119-16020i201501

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0P011i201204

main13521-31041i201403

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516×2i200901-201204

13581SHAFT, IDLE GEAR, NO.1

main13581-31030i201403

main13581-AD010i200901-201204

13582SHAFT, IDLE GEAR, NO.2

main13582-31031i200901-201204

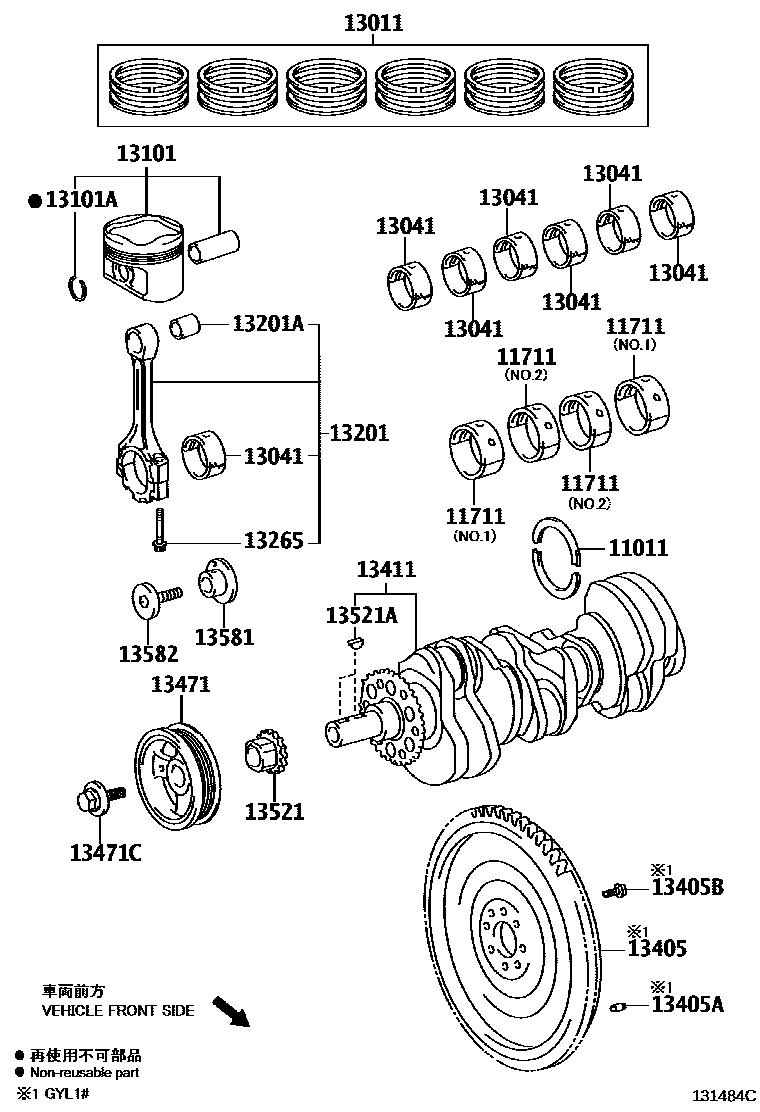

CRANKSHAFT & PISTON
