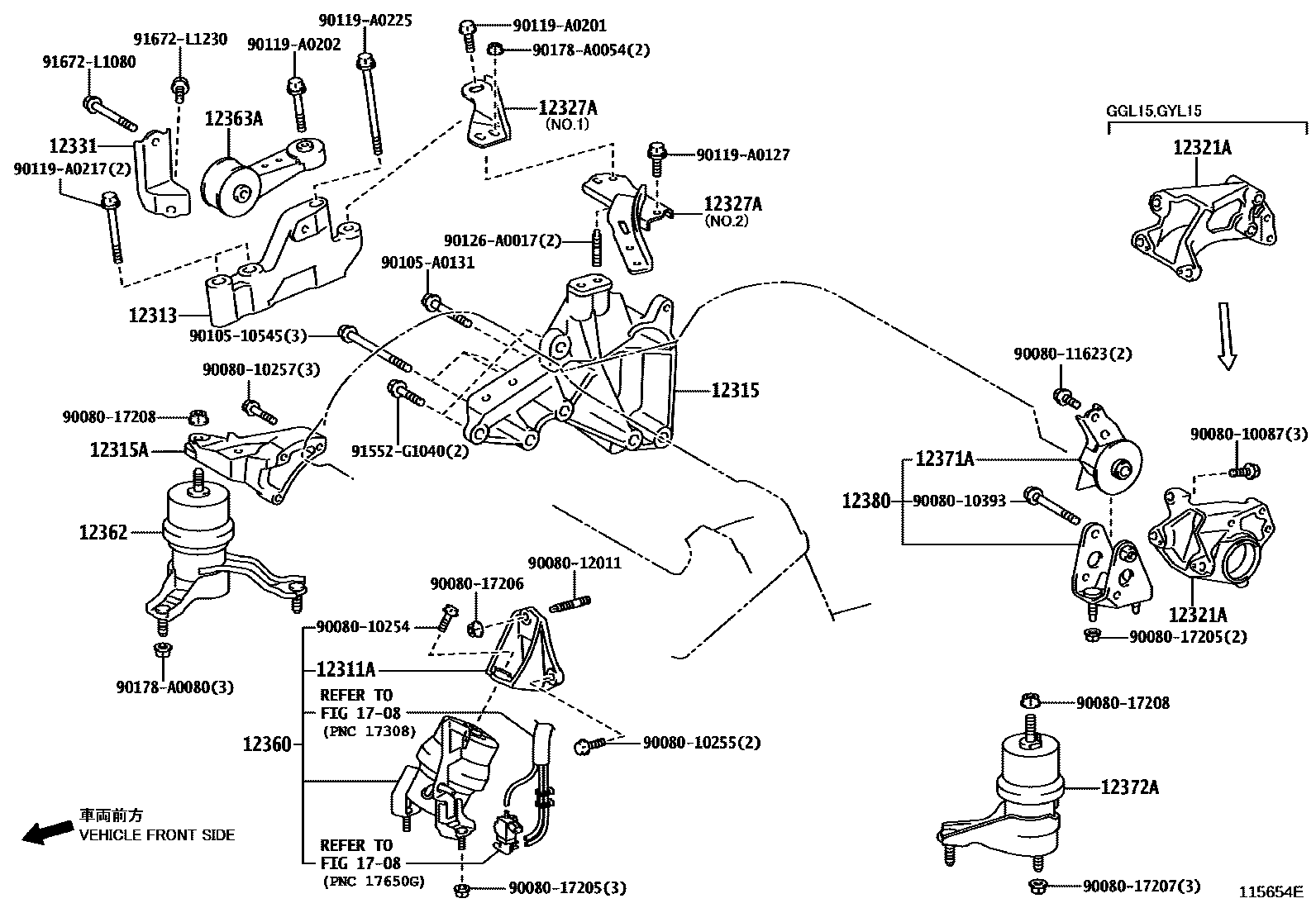

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0P020i200901-201204

main12311-0P100i201204

main12311-0P110i201207

main12311-31110i201403

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0P060i201105-201204

main12313-0P090i200901-201105

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0P031i200901-201204

main12315-31091i201403

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0P020i201211

main12319-31010i201204-201210

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0P050i201312

main12321-0P060i201312

main12321-31120i201204-201311

main12321-31130i200901-201204

main12321-31141i201403

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0P020i201204

NO.1

main12327-0P050i200901-201007

NO.1

main12327-31010i201403-201502

NO.2

main12327-31070i200901-201107

NO.2

main12327-31090i201204

NO.2

main12327-31120i201503

NO.2

12331STAY, ENGINE MOUNTING, NO.3 RH

main12331-0P020i200901-201204

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-0P070i200901-201204

main12360-0P140i201204

main12360-0P150i201207

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-0P050i200901-201204

main12362-0P051i201306

12363AROD, ENGINE MOVING CONTROL

main12363-0P120i200901-201204

main12363-0P160i201403

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0P180i200901-201204

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0P010i200901-201204

main12372-31050i201403

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-0P090i200901-201204

main12380-31061i201403

1708VACUUM PIPING

→ Go to FIG 17-08

9008010087

main90080-10087

9008010254

main90080-10254

9008010255

main90080-10255

9008010257

main90080-10257

9008010393

main90080-10393

9008011623

main90080-11623

9008012011

main90080-12011

9008017205

main90080-17205

9008017206

main90080-17206

9008017207

main90080-17207

9008017208

main90080-17208

9010510545

main90105-10545

90105A0131

main90105-A0131

90119A0127

main90119-A0127

90119A0201

main90119-A0201

90119A0202

main90119-A0202

90119A0217

main90119-A0217

90119A0225

main90119-A0225

90126A0017

main90126-A0017

90178A0054

main90178-A0054

90178A0080

main90178-A0080

91552G1040

main91552-G1040

91672L1080

main91672-L1080

91672L1230

main91672-L1230
