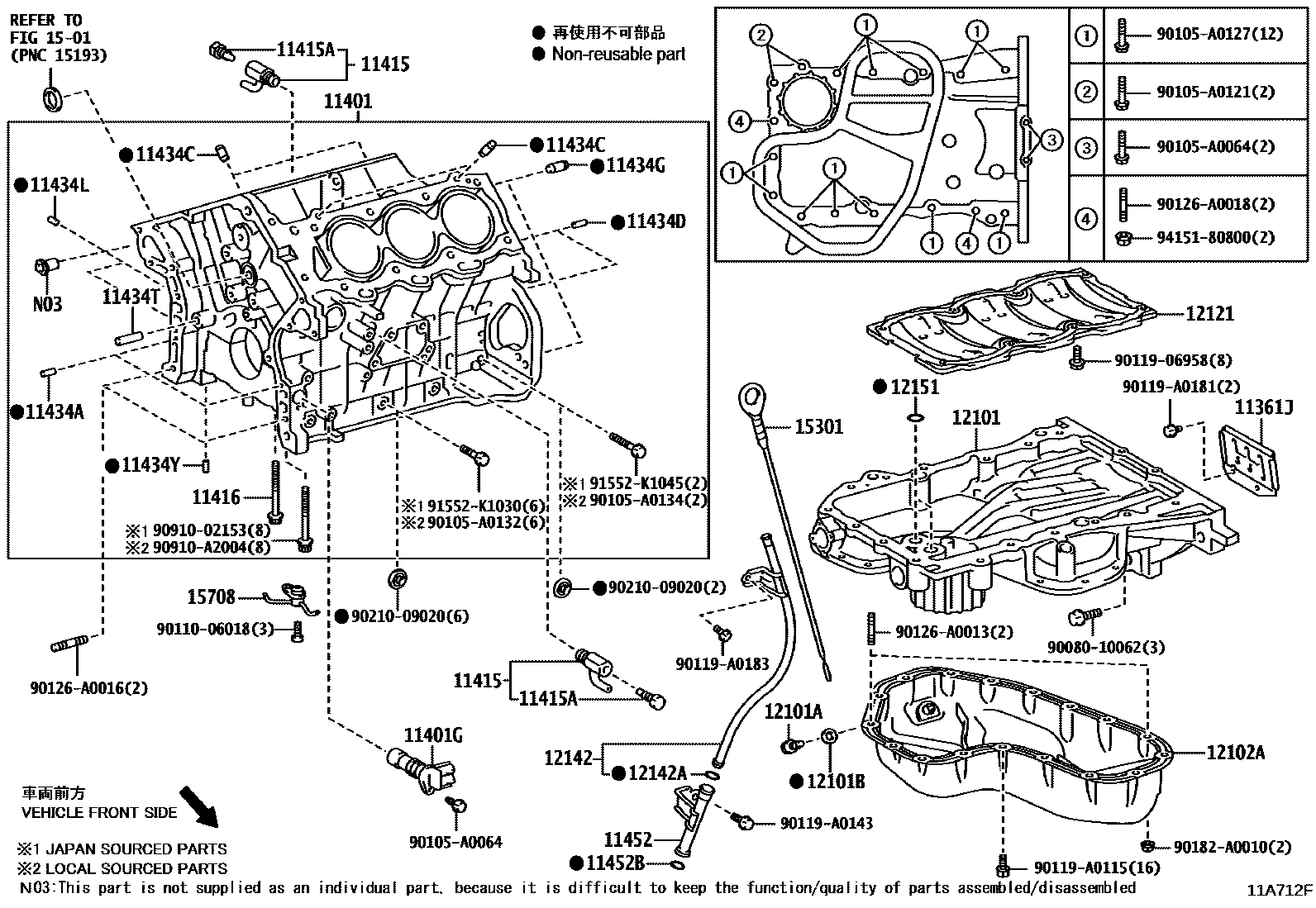

CYLINDER BLOCK

0001 1W/O OIL COOLER 0002 1W/OIL COOLER 0003 1W/O OIL COOLER 0004 1W/OIL COOLER 0005 1W/O OIL COOLER 0006 1W/OIL COOLER

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0P020i2GRFE..GGL1#..NAP200901-201204

11401BLOCK SUB-ASSY, CYLINDER

main11401-09600i2GRFE..GGL1#..NAP201204-201409

*133

main11401-09601i2GRFE..GGL1#..NAP201409-201510

*133

main11401-80774i2GRFE..GGL1#..NAP201204-201407

*132

main11401-80800i2GRFXE..GYL1#..NAP201403-201406

main11401-80814i2GRFXE..GYL1#..NAP201407-201412

main11401-80825i2GRFE..GGL1#..NAP201407-201510

*132

main11401-80826i2GRFXE..GYL1#..NAP201412-201510

11401GSENSOR, CRANK POSITION

main90919-05057i2GRFXE..GYL1#..NAP201403

main90919-A5003i2GRFE..GGL1#..NAP201204

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52001i2GRFXE..GYL1#..NAP201403

LH,TYPE A:REF.ILL.

main90910-09129i2GRFE..GGL1#..NAP201508

RH

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087×2i2GRFE..GGL1#..NAP200901-201204

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154×8i2GRFE..GGL1#..NAP200901-201204

(J)

main90910-A2005×8i2GRFE..GGL1#..NAP201204

(L)

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2GRFE..GGL1#..NAP200901-201204

L=12,OD=4.0

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i2GR#..GGL1#,GYL1#..NAP201204

L=18,OD=8

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-04097×2i2GRFE..GGL1#..NAP200901-201204

L=12,OD=4.0

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i2GRFE..GGL1#..NAP200901-201204

11434LPIN, STRAIGHT(FOR ENGINE MOUNTING)

main90250-04097×2i2GRFE..GGL1#..NAP200901-201204

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i2GRFE..GGL1#..NAP200901-201204

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i2GR#..GGL1#,GYL1#..NAP201204

11452GUIDE, OIL LEVEL GAGE

main11452-0P010i2GRFE..GGL1#..NAP201204

main11452-31060i2GRFXE..GYL1#..NAP201403

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GGL1#..NAP200901-201204

12101PAN SUB-ASSY, OIL

main12101-31121i2GRFXE..GYL1#..NAP201403

main12111-0P050supersedes 12101-0P040i2GRFE..GGL15..NAP..8FC201207

(L)

main12111-31150i2GRFE..GGL15..NAP..8FC201207

(J)

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GRFE..GGL1#..NAP200901-201204

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GRFE..GGL1#..NAP200901-201204

12102APAN SUB-ASSY, OIL, NO.2

main12102-0P020i2GRFE..GGL1#..NAP200901-201204

main12102-31051i2GRFXE..GYL1#..NAP201403

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0P010i2GRFE..GGL1#..NAP200901-201204

main12121-31070i2GRFXE..GYL1#..NAP201403-201504

main12121-31120i2GRFXE..GYL1#..NAP201504

12142GUIDE, OIL LEVEL GAGE, NO.2

main12142-0P020i2GRFE..GGL1#..NAP200901-201204

12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)

main96721-19010i2GRFE..GGL1#..NAP200901-201204

12151GASKET, OIL PAN

main12151-0P010×2i2GRFE..GGL1#..NAP200901-201204

main12151-31010×2i2GRFXE..GYL1#..NAP201403

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0P030i2GRFE..GGL1#..NAP200901-201204

main15301-31110i2GRFE..GGL1#..NAP201204-201205

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31030×3i2GRFE..GGL1#..NAP200901-201204

main15708-31050×3i2GRFXE..GYL1#..NAP201506

9008010062

main90080-10062

90105A0064

main90105-A0064

90105A0121

main90105-A0121

90105A0127

main90105-A0127

90105A0132

main90105-A0132

90105A0134

main90105-A0134

9011006018

main90110-06018

9011906958

main90119-06958

90119A0115

main90119-A0115

90119A0143

main90119-A0143

90119A0181

main90119-A0181

90119A0183

main90119-A0183

90126A0013

main90126-A0013

90126A0016

main90126-A0016

90126A0018

main90126-A0018

90182A0010

main90182-A0010

9021009020

main90210-09020

9091002153

main90910-02153

90910A2004

main90910-A2004

91552K1030

main91552-K1030

91552K1045

main91552-K1045

9415180800

main94151-80800

48 parts on this diagram · 6 diagrams in section
