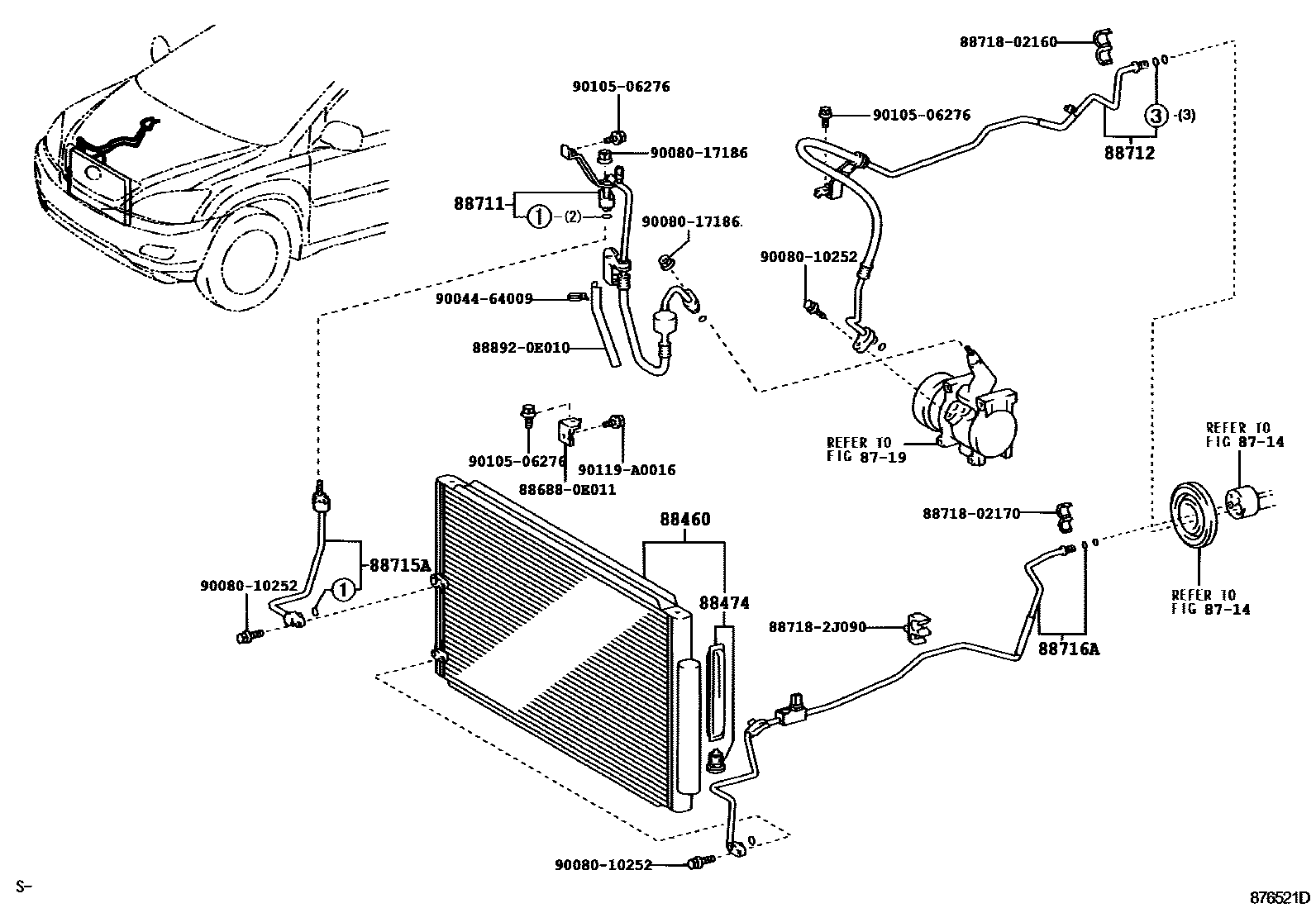

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-0E020iGSU3#..NAP200602

main88460-0E010supersedes 88460-0E011iMCU3#..NAP200409-200502

CANADA SPEC

main88460-48040supersedes 88460-0E011iMCU3#..NAP200309-200409

CRUISE CONTROL-W(RADAR CRUISE); TOWING PACKAGE-3500LBS

88474DRYER, COOLER

main88474-17010iGSU3#..NAP200602

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-0E010iMCU3#..NAP200309-200402

main88703-0E011iMCU3#..NAP200402-200602

main88703-0E020iGSU3#..NAP200602

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-0E010iMCU3#..NAP200309-200602

main88704-0E020iGSU3#..NAP200602-200706

main88704-0E021iGSU3#..NAP200707

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88705-0E010iMCU3#..NAP200309-200602

main88705-0E020iGSU3#..NAP200602

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-0E011iMCU3#..NAP200309-200602

main88716-0E070iGSU3#..NAP200602

886880E011BRACKET, COOLER DIAPHRAGM

main88688-0E011

8871802160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02160

8871802170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02170

887182J090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J090

888920E010BRACKET, COOLER EVAPORATOR MOUNTING

main88892-0E010

9004464009

main90044-64009

9008010252

main90080-10252

9008017186

main90080-17186

9010506276

main90105-06276

90119A0016

main90119-A0016

18 parts on this diagram · 3 diagrams in section
