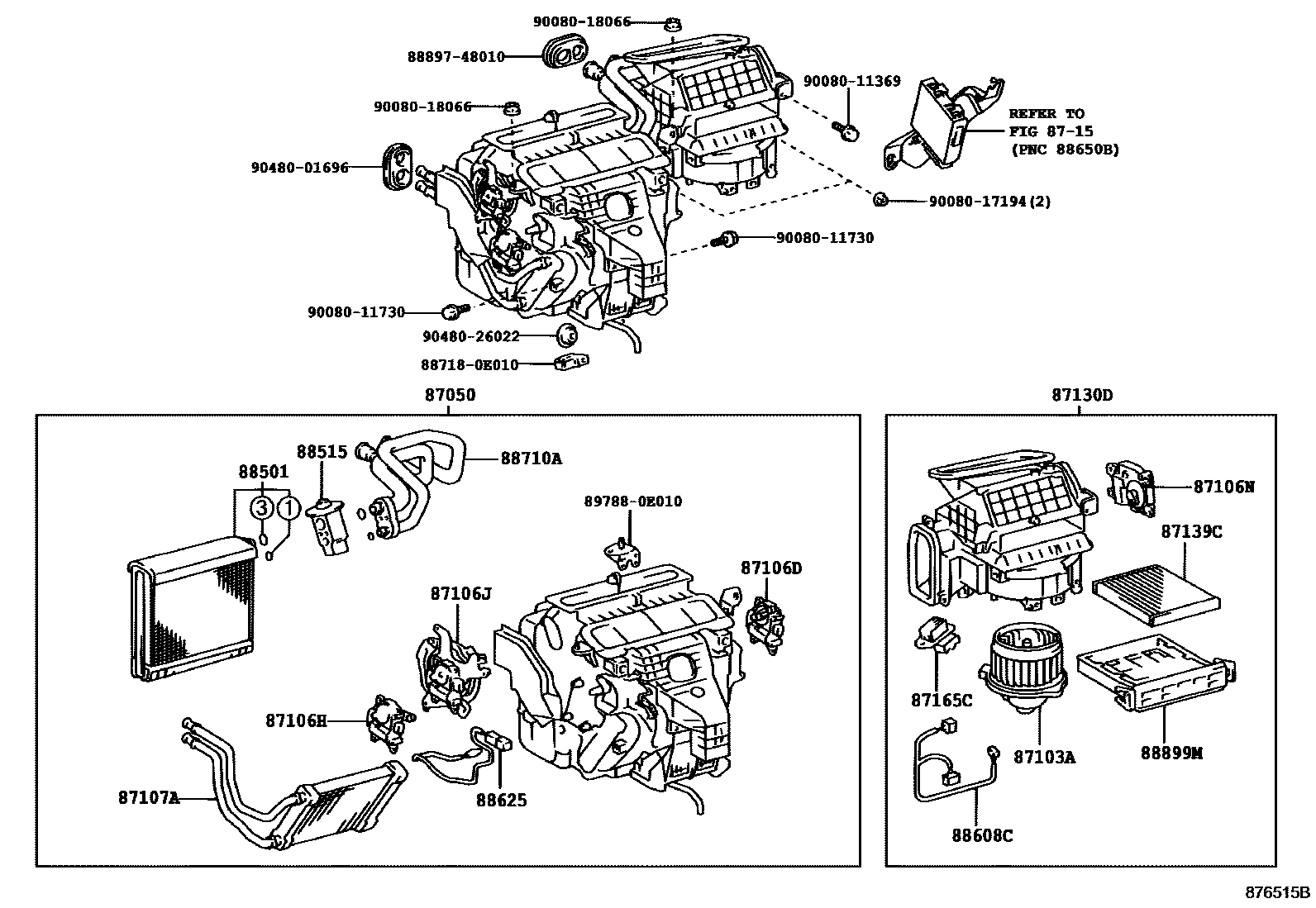

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106DSERVO SUB-ASSY, DAMPER, NO.1
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
POLLEN FILTER
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
87165CCONTROL, BLOWER MOTOR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88625THERMISTOR, COOLER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88899MPLATE, COVER(FOR AIR FILTER)
887180E010PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0E010
8889748010VALVE, COOLER MAGNET
main88897-48010
897880E010BRACKET, TRANSPONDER KEY
main89788-0E010
9008011369
main90080-11369
9008011730
main90080-11730
9008017194
main90080-17194
9008018066
main90080-18066
9048001696
main90480-01696
9048026022
main90480-26022
26 parts on this diagram · 3 diagrams in section
