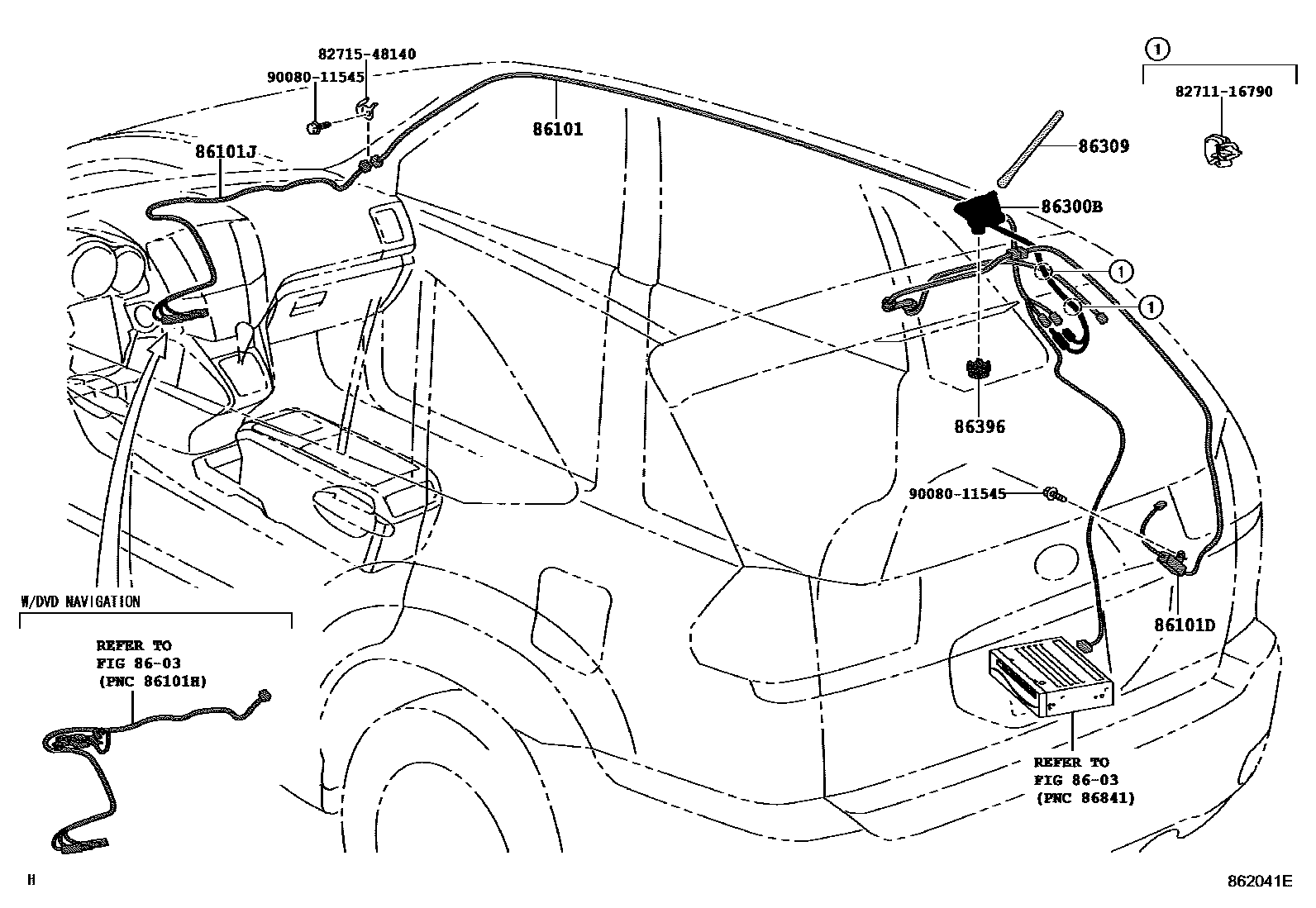

ANTENNA

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86101CORD SUB-ASSY, ANTENNA

main86101-0E040supersedes 86101-0E030iMCU3#..NAP200402-200602

W/DVD NAVIGATION

main86101-0E060supersedes 86101-0E030iGSU3#..NAP200602

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0E050iMCU3#..NAP200309-200602

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0E010iMCU3#..NAP200309-200602

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-48140iMCU3#..NAP200309-200602

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-48040iMCU3#..NAP200309-200602

86396NUT, ANTENNA

main86396-20040iMCU3#..NAP200309-200602

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8271548140BRACKET,WIRING HARNESS CLAMP

main82715-48140

9008011545

main90080-11545

10 parts on this diagram · 1 diagram in section
