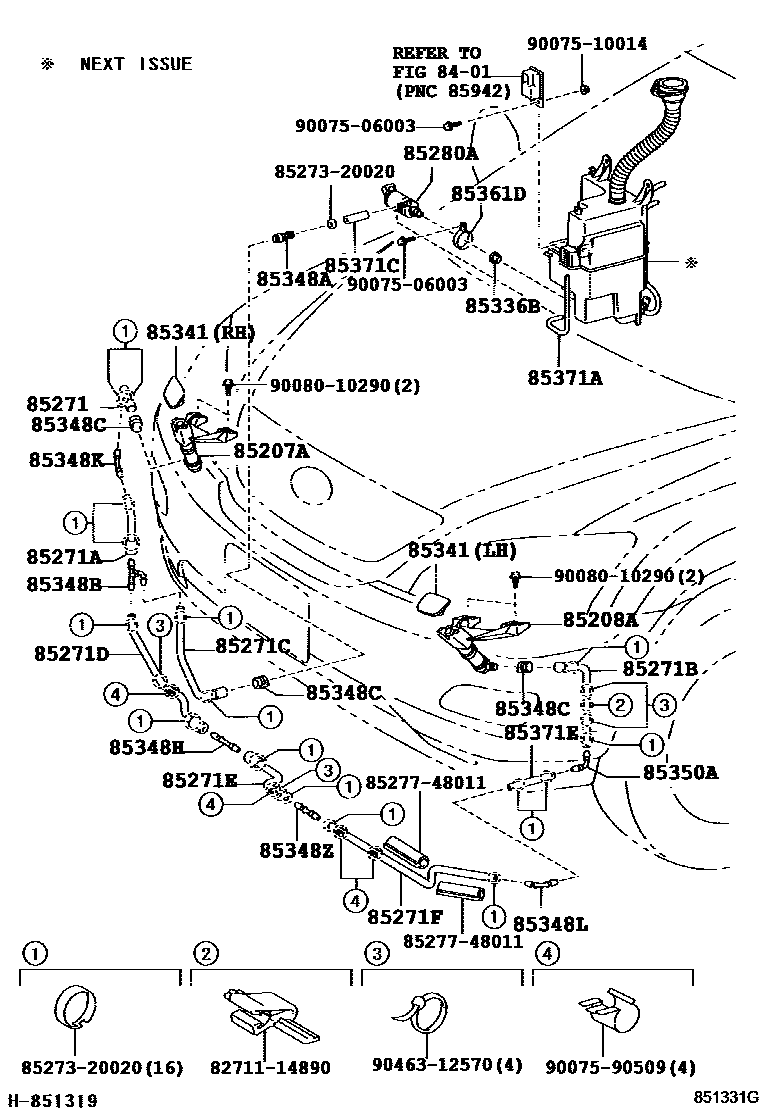

HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-48010i200309-200505

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

main85207-48011i200506-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

main85207-48030i200702-200901

CANADA SPEC; CANADA SPEC&SEAT HEARTER-WITH; SEAT HEARTER-WITH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-48010i200309-200505

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

main85208-48011i200506-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

main85208-48030i200702-200901

CANADA SPEC; CANADA SPEC&SEAT HEARTER-WITH; SEAT HEARTER-WITH

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-20020i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85271AHOSE, HEADLAMP CLEANER, NO.2

main85275-42020i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85271BHOSE, HEADLAMP CLEANER, NO.3

main85275-48010i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85271CHOSE, HEADLAMP CLEANER, NO.4

main90075-15025i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85271DHOSE, HEADLAMP CLEANER, NO.5

main90075-15026i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85271EHOSE, HEADLAMP CLEANER, NO.6

main90075-15029i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85271FHOSE, HEADLAMP CLEANER, NO.7

main90075-15027i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-20020i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010i200602

CANADA SPEC; CANADA SPEC&SEAT HEARTER-WITH; SEAT HEARTER-WITH

85341NOZZLE, HEADLAMP CLEANER WASHER

main85381-48040-A0i200602

CANADA SPEC&SEAT HEARTER-WITH,WHITE PEARL CS.,062,RH; CANADA SPEC,WHITE PEARL CS.,062,RH; SEAT HEARTER-WITH,WHITE PEARL CS.,062,RH

main85381-48040-B0i200602-200801

CANADA SPEC&SEAT HEARTER-WITH,SILVER ME.,1C0,RH; CANADA SPEC,SILVER ME.,1C0,RH; SEAT HEARTER-WITH,SILVER ME.,1C0,RH

main85381-48040-B1i200602-200801

CANADA SPEC&SEAT HEARTER-WITH,DK.GRAY MC.,1E0,RH; CANADA SPEC,DK.GRAY MC.,1E0,RH; SEAT HEARTER-WITH,DK.GRAY MC.,1E0,RH

main85381-48040-B3i200801

CANADA SPEC&SEAT HEARTER-WITH,SILVER ME.,1F7,RH; CANADA SPEC,SILVER ME.,1F7,RH; SEAT HEARTER-WITH,SILVER ME.,1F7,RH

main85381-48040-B4i200801

CANADA SPEC&SEAT HEARTER-WITH,DK.GRAY MC.,1G0,RH; CANADA SPEC,DK.GRAY MC.,1G0,RH; SEAT HEARTER-WITH,DK.GRAY MC.,1G0,RH

main85381-48040-C0i200309-200602

CANADA SPEC&SEAT HEATER-WITH,BLACK,202,RH; CANADA SPEC,BLACK,202,RH; SEAT HEATER-WITH,BLACK,202,RH

main85381-48040-C1i200801

CANADA SPEC&SEAT HEARTER-WITH,BLACK,212,RH; CANADA SPEC,BLACK,212,RH; SEAT HEARTER-WITH,BLACK,212,RH

main85381-48040-D1i200801

CANADA SPEC&SEAT HEARTER-WITH,RED MC.CS.,3R1,RH; CANADA SPEC,RED MC.CS.,3R1,RH; SEAT HEARTER-WITH,RED MC.CS.,3R1,RH

main85381-48040-E0i200602-200801

CANADA SPEC&SEAT HEARTER-WITH,BEIGE ME.,4R4,RH; CANADA SPEC,BEIGE ME.,4R4,RH; SEAT HEARTER-WITH,BEIGE ME.,4R4,RH

main85381-48040-E2i200801

CANADA SPEC&SEAT HEARTER-WITH,BEIGE ME.,4T1,RH; CANADA SPEC,BEIGE ME.,4T1,RH; SEAT HEARTER-WITH,BEIGE ME.,4T1,RH

main85381-48040-E3i200801

CANADA SPEC&SEAT HEARTER-WITH,SABLE M.M.,4T5,RH; CANADA SPEC,SABLE M.M.,4T5,RH; SEAT HEARTER-WITH,SABLE M.M.,4T5,RH

main85381-48040-G0i200309-200602

CANADA SPEC&SEAT HEATER-WITH,LT.OLIVE M.M.,6T1,RH; CANADA SPEC,LT.OLIVE M.M.,6T1,RH; SEAT HEATER-WITH,LT.OLIVE M.M.,6T1,RH

main85381-48040-G1i200602-200701

CANADA SPEC&SEAT HEARTER-WITH,DK.GREEN MC.,6T3,RH; CANADA SPEC,DK.GREEN MC.,6T3,RH; SEAT HEARTER-WITH,DK.GREEN MC.,6T3,RH

main85381-48040-G2i200702-200801

CANADA SPEC&SEAT HEARTER-WITH,MD.GREEN M.M.,6U3,RH; CANADA SPEC,MD.GREEN M.M.,6U3,RH; SEAT HEARTER-WITH,MD.GREEN M.M.,6U3,RH

main85381-48040-J0i200602

CANADA SPEC&SEAT HEARTER-WITH,LT.BLUE ME.,8R6,RH; CANADA SPEC,LT.BLUE ME.,8R6,RH; SEAT HEARTER-WITH,LT.BLUE ME.,8R6,RH

main85381-48040-J1i200309-200602

CANADA SPEC&SEAT HEATER-WITH,DK.BLUE M.M.,8R7,RH; CANADA SPEC,DK.BLUE M.M.,8R7,RH; SEAT HEATER-WITH,DK.BLUE M.M.,8R7,RH

main85382-48010-A0i200309-200602

CANADA SPEC&SEAT HEATER-WITH,WHITE PEARL CS.,062,LH; CANADA SPEC,WHITE PEARL CS.,062,LH; SEAT HEATER-WITH,WHITE PEARL CS.,062,LH

main85382-48010-B0i200309-200602

CANADA SPEC&SEAT HEATER-WITH,SILVER ME.,1C0,LH; CANADA SPEC,SILVER ME.,1C0,LH; SEAT HEATER-WITH,SILVER ME.,1C0,LH

main85382-48010-B1i200602-200801

CANADA SPEC&SEAT HEARTER-WITH,DK.GRAY MC.,1E0,LH; CANADA SPEC,DK.GRAY MC.,1E0,LH; SEAT HEARTER-WITH,DK.GRAY MC.,1E0,LH

main85382-48010-B3i200801

CANADA SPEC&SEAT HEARTER-WITH,SILVER ME.,1F7,LH; CANADA SPEC,SILVER ME.,1F7,LH; SEAT HEARTER-WITH,SILVER ME.,1F7,LH

main85382-48010-B4i200801

CANADA SPEC&SEAT HEARTER-WITH,DK.GRAY MC.,1G0,LH; CANADA SPEC,DK.GRAY MC.,1G0,LH; SEAT HEARTER-WITH,DK.GRAY MC.,1G0,LH

main85382-48010-C0i200309-200602

CANADA SPEC&SEAT HEATER-WITH,BLACK,202,LH; CANADA SPEC,BLACK,202,LH; SEAT HEATER-WITH,BLACK,202,LH

main85382-48010-C1i200801

CANADA SPEC&SEAT HEARTER-WITH,BLACK,212,LH; CANADA SPEC,BLACK,212,LH; SEAT HEARTER-WITH,BLACK,212,LH

main85382-48010-D1i200801

CANADA SPEC&SEAT HEARTER-WITH,RED MC.CS.,3R1,LH; CANADA SPEC,RED MC.CS.,3R1,LH; SEAT HEARTER-WITH,RED MC.CS.,3R1,LH

main85382-48010-E0i200602-200801

CANADA SPEC&SEAT HEARTER-WITH,BEIGE ME.,4R4,LH; CANADA SPEC,BEIGE ME.,4R4,LH; SEAT HEARTER-WITH,BEIGE ME.,4R4,LH

main85382-48010-E2i200801

CANADA SPEC&SEAT HEARTER-WITH,BEIGE ME.,4T1,LH; CANADA SPEC,BEIGE ME.,4T1,LH; SEAT HEARTER-WITH,BEIGE ME.,4T1,LH

main85382-48010-E3i200801

CANADA SPEC&SEAT HEARTER-WITH,SABLE M.M.,4T5,LH; CANADA SPEC,SABLE M.M.,4T5,LH; SEAT HEARTER-WITH,SABLE M.M.,4T5,LH

main85382-48010-G0i200602

CANADA SPEC&SEAT HEARTER-WITH,LT.OLIVE M.M.,6T1,LH; CANADA SPEC,LT.OLIVE M.M.,6T1,LH; SEAT HEARTER-WITH,LT.OLIVE M.M.,6T1,LH

main85382-48010-G1i200602-200701

CANADA SPEC&SEAT HEARTER-WITH,DK.GREEN MC.,6T3,LH; CANADA SPEC,DK.GREEN MC.,6T3,LH; SEAT HEARTER-WITH,DK.GREEN MC.,6T3,LH

main85382-48010-G2i200702-200801

CANADA SPEC&SEAT HEARTER-WITH,MD.GREEN M.M.,6U3,LH; CANADA SPEC,MD.GREEN M.M.,6U3,LH; SEAT HEARTER-WITH,MD.GREEN M.M.,6U3,LH

main85382-48010-J0i200602

CANADA SPEC&SEAT HEARTER-WITH,LT.BLUE ME.,8R6,LH; CANADA SPEC,LT.BLUE ME.,8R6,LH; SEAT HEARTER-WITH,LT.BLUE ME.,8R6,LH

main85382-48010-J1i200309-200602

CANADA SPEC&SEAT HEATER-WITH,DK.BLUE M.M.,8R7,LH; CANADA SPEC,DK.BLUE M.M.,8R7,LH; SEAT HEATER-WITH,DK.BLUE M.M.,8R7,LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85279-33040i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85279-33020i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85279-33050×3i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main85279-60080i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main85279-30010i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main85379-30010i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5

main85379-89131i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3

main85279-42010i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85361DBRACKET, HEADLAMP CLEANER, NO.2

main85361-33020i200309-200602

CANADA SPEC; CANADA SPEC&SEAT HEATER-WITH; SEAT HEATER-WITH

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15014i200309-200602

L=180,CANADA SPEC; L=180,CANADA SPEC&SEAT HEATER-WITH; L=180,SEAT HEATER-WITH

85371CHOSE, HEADLAMP CLEANER, NO.1

main85375-16020i200309-200602

L=40,CANADA SPEC; L=40,CANADA SPEC&SEAT HEATER-WITH; L=40,SEAT HEATER-WITH

85371EHOSE, HEADLAMP CLEANER, NO.3

main85376-14301i200309-200602

L=75,CANADA SPEC; L=75,CANADA SPEC&SEAT HEATER-WITH; L=75,SEAT HEATER-WITH

8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14890

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8527748011HOSE, HEADLAMP CLEANER, C

main85277-48011

9007506003

main90075-06003

9007510014

main90075-10014

9007590509

main90075-90509

9008010290

main90080-10290

9046312570

main90463-12570

33 parts on this diagram · 1 diagram in section
