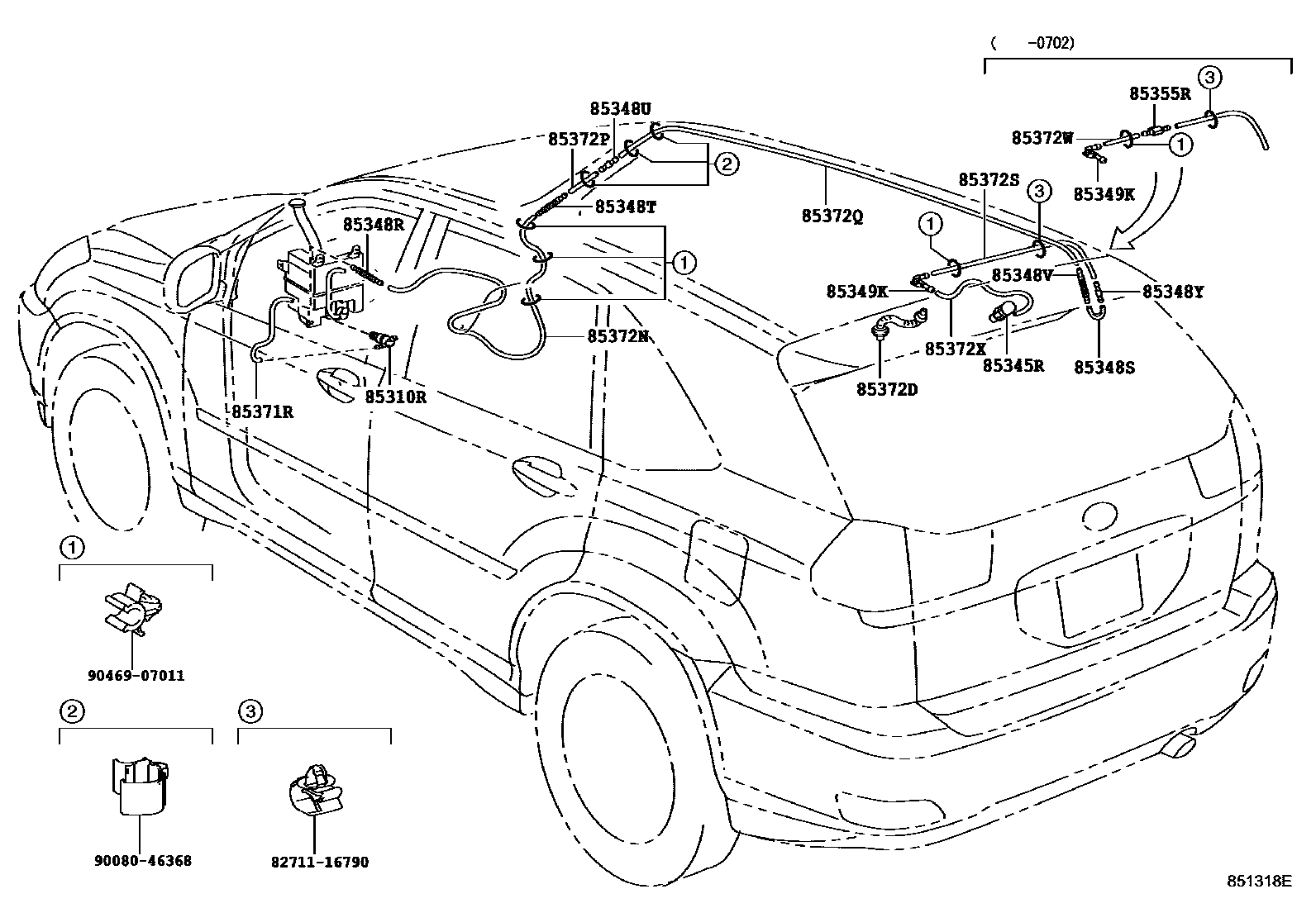

REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85355RVALVE, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=370; L=370,CANADA SPEC; L=370,CANADA SPEC&SEAT HEATER-WITH; L=370,SEAT HEATER-WITH
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=2080
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=50
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=2550
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=530
L=600
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=50
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=380
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9008046368
main90080-46368
9046907011
main90469-07011
21 parts on this diagram · 1 diagram in section
