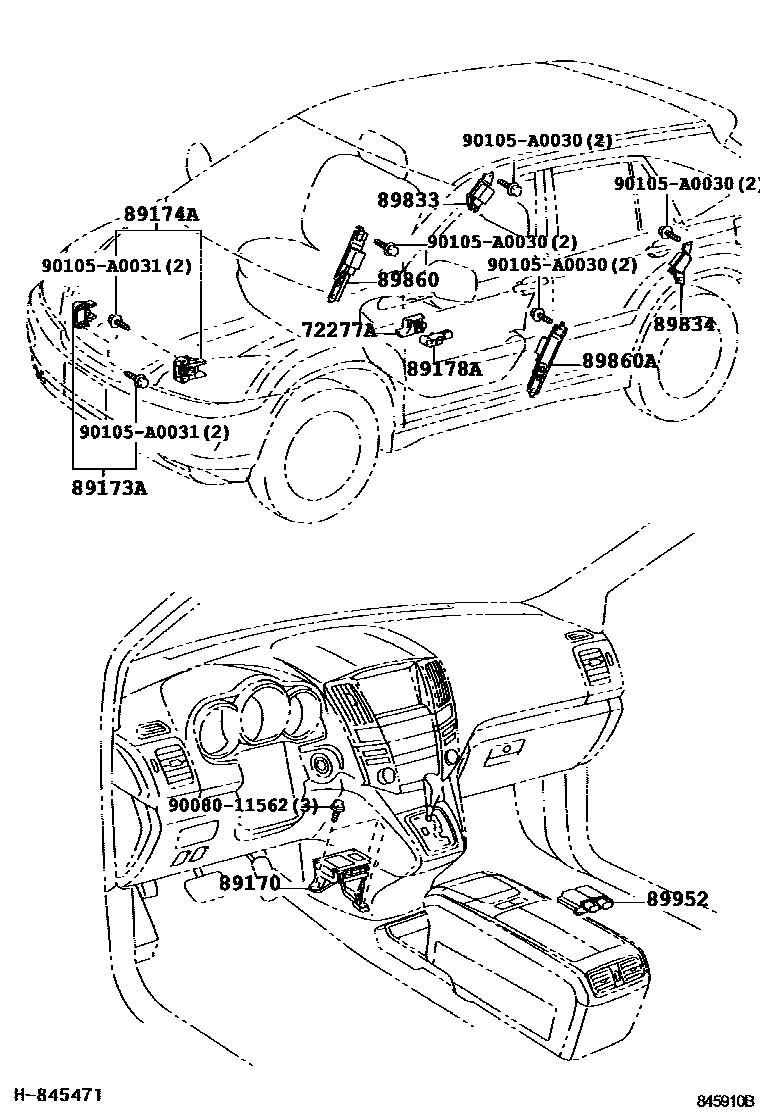

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-06020iMCU3#..NAP200509-200602

main72277-33021iMCU3#..NAP200309-200508

89170SENSOR ASSY, AIRBAG

main89170-0E010iMCU3#..NAP200309-200409

main89170-0E020iGSU3#..NAP200602-200606

main89170-0E021iGSU3#..NAP200607

89173ASENSOR, AIRBAG, FRONT RH

main89173-09100iMCU3#..NAP200309-200602

89174ASENSOR, AIRBAG, FRONT LH

main89173-09100iMCU3#..NAP200309-200602

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06040iGSU3#..NAP200602-200901

main89178-33031iMCU3#..NAP200309-200407

89833SENSOR, AIRBAG, REAR RH

main89833-0E010iMCU3#..NAP200309-200602

89834SENSOR, AIRBAG, REAR LH

main89834-0E010iMCU3#..NAP200309-200602

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-0E010iMCU3#..NAP200309-200602

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-0E010iMCU3#..NAP200309-200602

89952COMPUTER, OCCUPANT DETECTION

main89952-48010iMCU3#..NAP200309-200405

main89952-48011iMCU3#..NAP200405-200409

main89952-48021iMCU3#..NAP200409-200505

main89952-48030iMCU3#..NAP200505-200602

9008011562

main90080-11562

90105A0030

main90105-A0030

90105A0031

main90105-A0031

13 parts on this diagram · 1 diagram in section
