WIRELESS DOOR LOCK

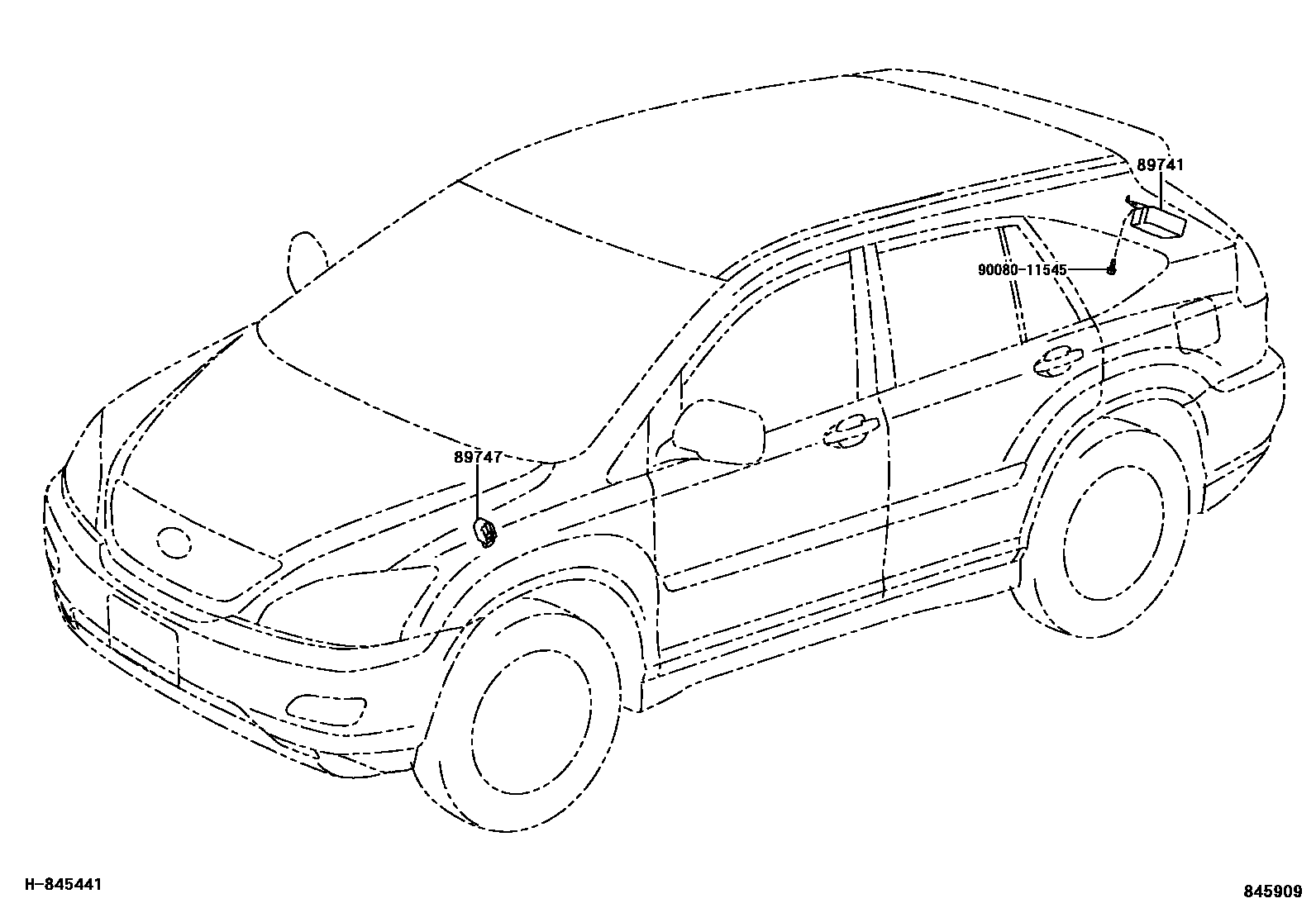

Parts diagram

89741RECEIVER, DOOR CONTROL

main89741-0E020supersedes 89741-0E010i200409-200602

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020i200309-200602

main89747-52010i200612

9008011545

main90080-11545

3 parts on this diagram · 1 diagram in section
