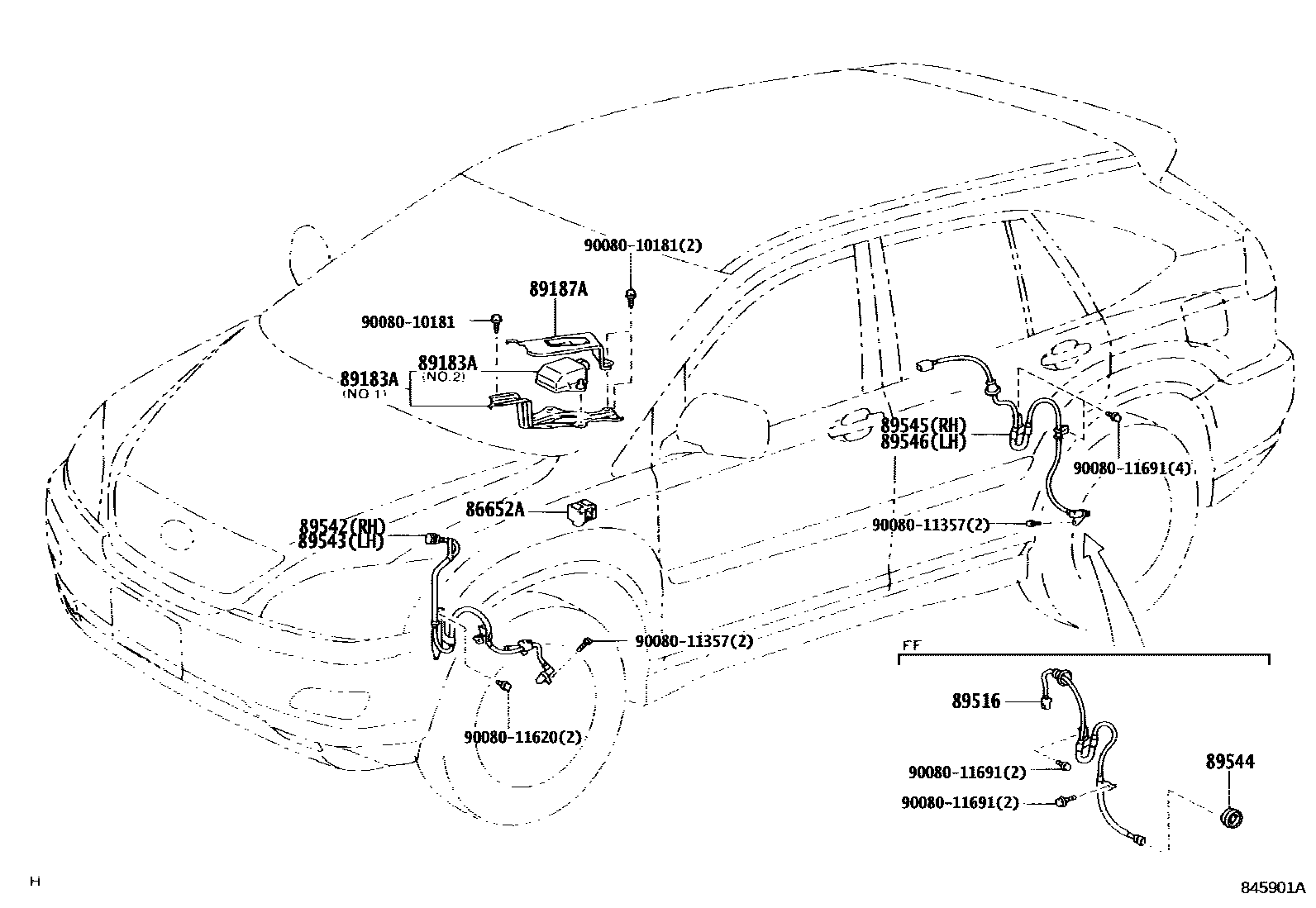

ABS & VSC

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iMCU3#..NAP200309-200602

89183ASENSOR, YAWRATE

main89180-48010iMCU3#..NAP200309-200602

NO.1

main89183-48010iGSU3#..NAP200602

NO.2

89187APROTECTOR, YAWRATE SENSOR

main89187-48010iMCU3#..NAP200309-200602

89516WIRE, SKID CONTROL SENSOR

main89516-0E010iMCU33..NAP200309-200602

RH

main89516-0E020iMCU33..NAP200309-200602

LH

89542SENSOR, SPEED, FRONT RH

main89542-0E010iMCU3#..NAP; MCU33..NAP200309-200602

SPORT PACKAGE

89543SENSOR, SPEED, FRONT LH

main89543-0E010iMCU3#..NAP200309-200602

89544SENSOR, SKID CONTROL

main89544-48030×2iMCU33..NAP200309-200602

89545SENSOR, SPEED, REAR RH

main89545-0E010iMCU38..NAP200309-200602

89546SENSOR, SPEED, REAR LH

main89546-0E010iMCU38..NAP200309-200602

9008010181

main90080-10181

9008011357

main90080-11357

9008011620

main90080-11620

9008011691

main90080-11691

13 parts on this diagram · 1 diagram in section
