SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1INSTRUMENT PANEL 1/2 0009 1INSTRUMENT PANEL 2/2 0010 1IGNITION & COMBINATION SW 0011 1DOOR,ROOF,FLOOR,SEAT & LAGGAG

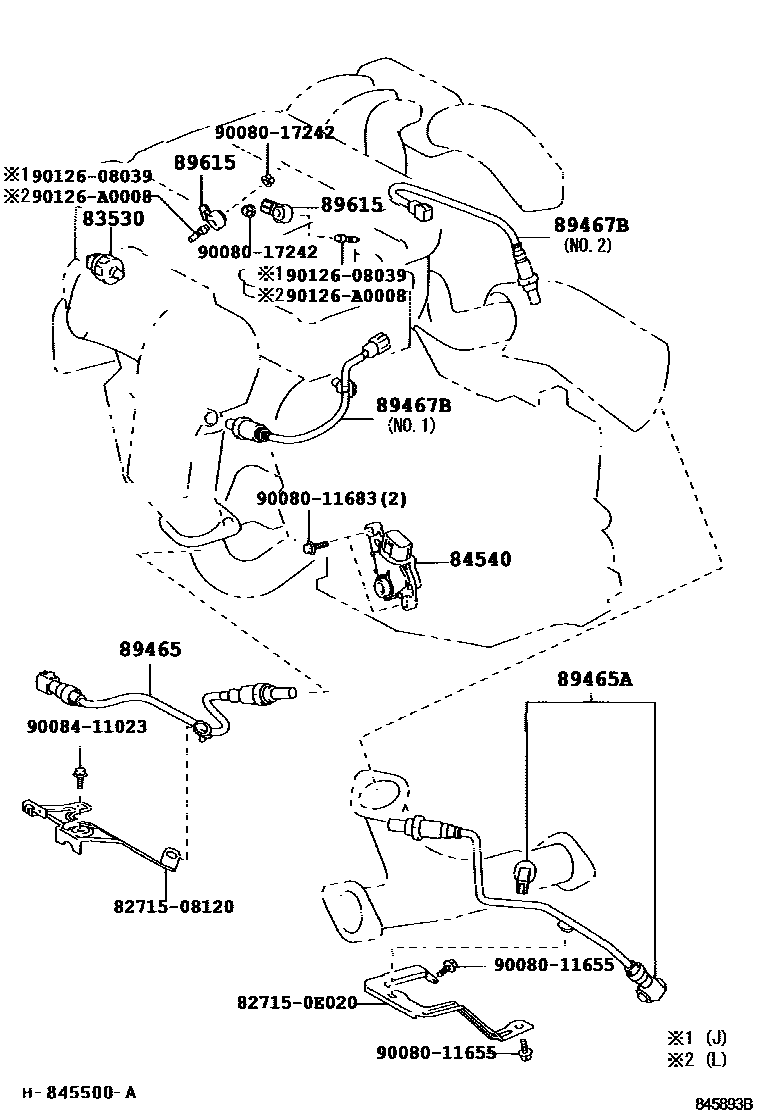

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iMCU3#..NAP200309-200602

(L)

main83530-28020iGSU3#..NAP200309-200602

(J),DENSO

main83530-60020iMCU3#..NAP200309-200602

main83530-60020iGSU3#..NAP200602

(J),YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-0E010iGSU3#..NAP200309-200901

89465SENSOR, OXYGEN

main89465-08040iMCU3#..NAP200309-200602

sub89465-48170

main89465-0E020iGSU3#..NAP200602

LH

main89465-0E030iGSU3#..NAP200602

RH

89465ASENSOR, OXYGEN NO.2

main89465-0E010iMCU3#..NAP200309-200602

89467BSENSOR, AIR FUEL RATIO

main89467-07010iGSU3#..NAP200602-200706

LH

main89467-07030iGSU3#..NAP200707

LH

main89467-08010iMCU3#..NAP200309-200602

NO.1

sub89467-48050

main89467-0E010iMCU3#..NAP200309-200602

NO.2

main89467-0E020iGSU3#..NAP200602-200706

RH

main89467-0E040iGSU3#..NAP200707

RH

89615SENSOR, KNOCK CONTROL

main89615-06010iGSU3#..NAP200602

(L)

main89615-20090iGSU3#..NAP200602

(J)

main89615-20090iMCU3#..NAP200309-200602

8271508120BRACKET,WIRING HARNESS CLAMP

main82715-08120

827150E020BRACKET,WIRING HARNESS CLAMP

main82715-0E020

9008011655

main90080-11655

9008011683

main90080-11683

9008017242

main90080-17242

9008411023

main90084-11023

9012608039

main90126-08039

90126A0008

main90126-A0008

14 parts on this diagram · 11 diagrams in section
