BATTERY & BATTERY CABLE

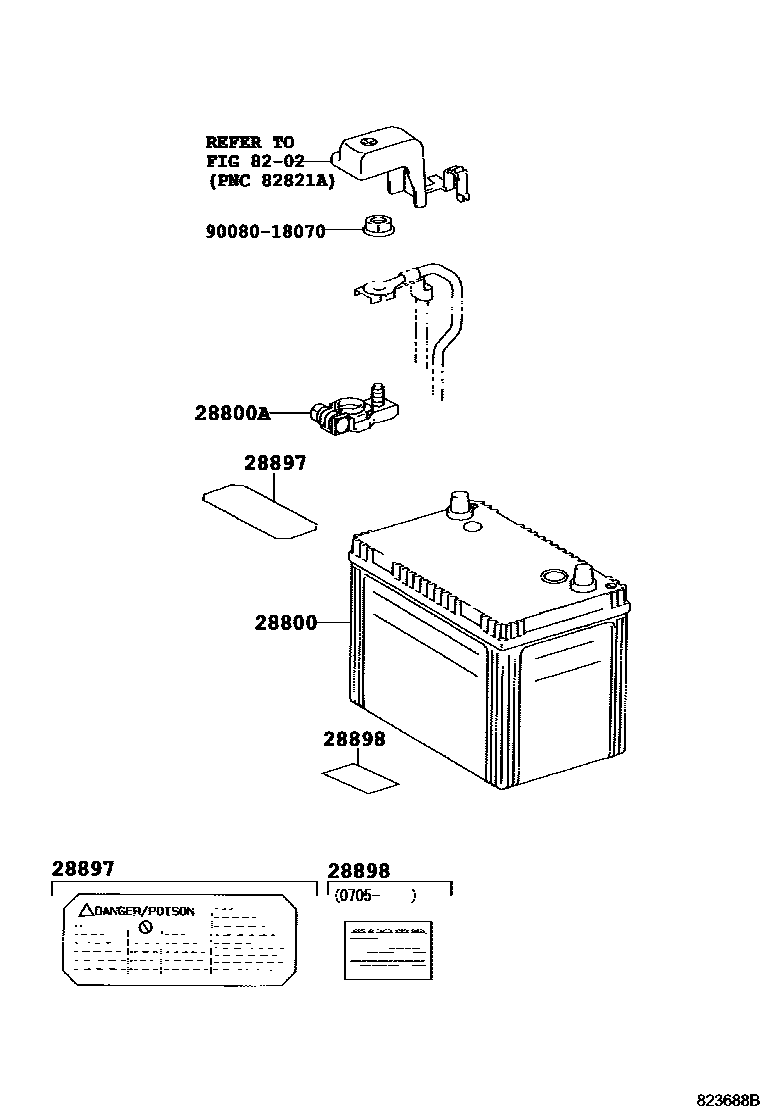

Parts diagram

28800BATTERY

main28800-03044i200309-200602

80D26L,JOHNSON

main28800-0A010i200309-200408

80D26L,DELPHI

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i200309-200602

28897PLATE, BATTERY CAUTION

main28897-AA010i200309-200602

CANADA SPEC

28898PLATE, BATTERY

main28898-20010i200705

CANADA SPEC

8202WIRING & CLAMP

→ Go to FIG 82-02

9008018070

main90080-18070

6 parts on this diagram · 1 diagram in section
