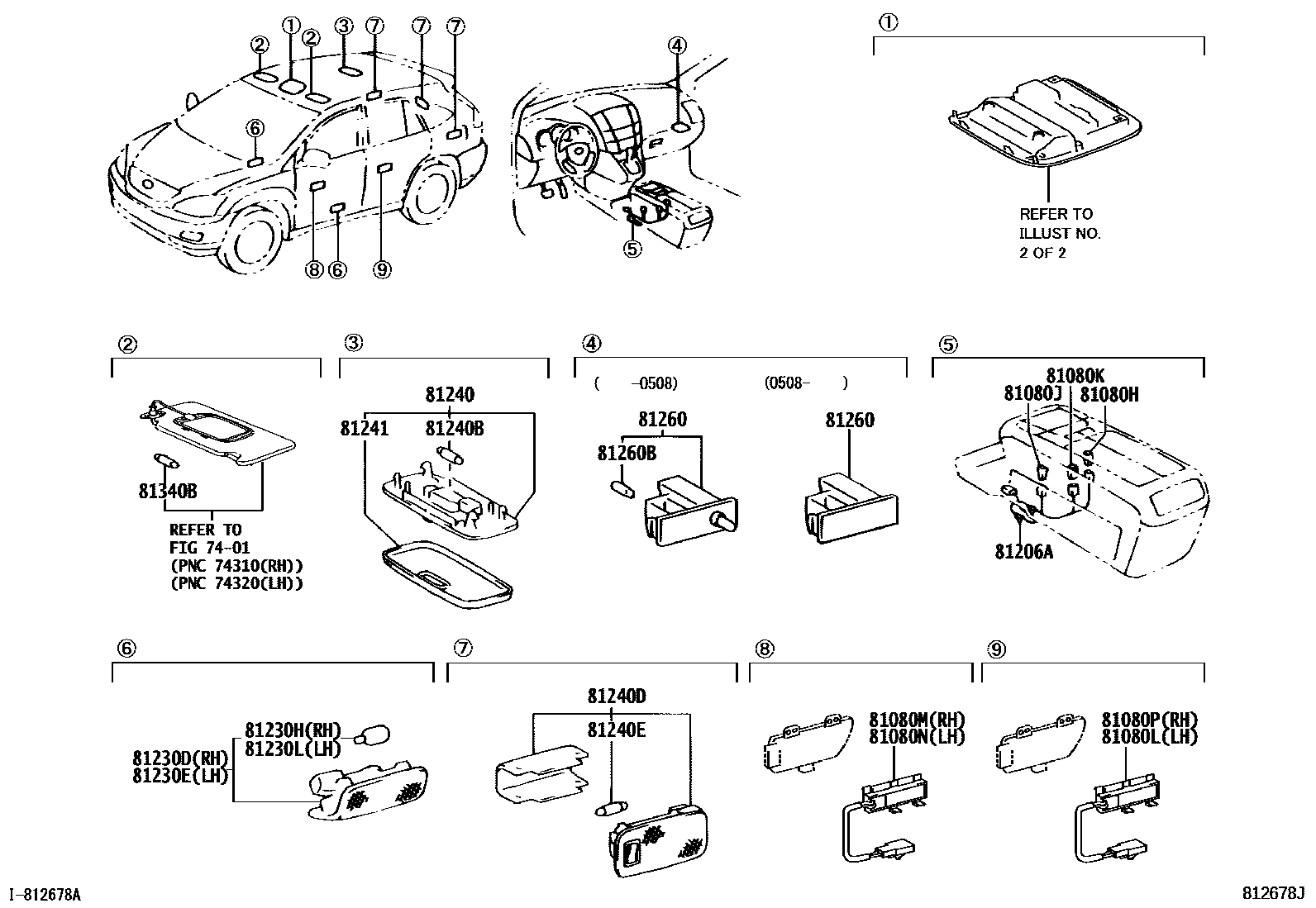

INTERIOR LAMP
7401ARMREST & VISOR
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81206ALAMP SUB-ASSY, CONSOLE BOX
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
12V 5W
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
12V 5W
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81240BBULB, ROOM LAMP, NO.1
12V 9W
81240DLAMP ASSY, ROOM, NO.2
81240EBULB, ROOM LAMP, NO.2
12V 5W
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81340BBULB (FOR VANITY LAMP)
14V 1.4W
21 parts on this diagram · 2 diagrams in section
