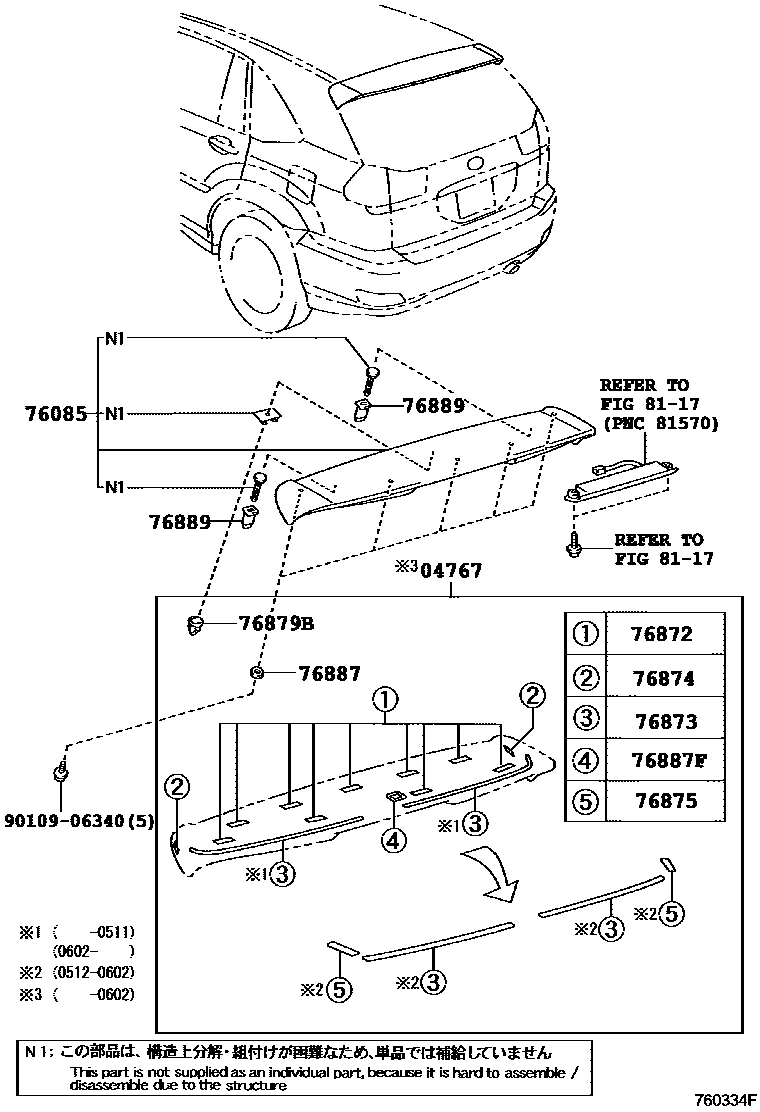

MUDGUARD & SPOILER

04767PROTECTOR KIT, REAR SPOILER

main04767-0E010iMCU3#..NAP200309-200511

main04767-0E020iMCU3#..NAP200512-200602

76085SPOILER SUB-ASSY, REAR

main76871-0E900iMCU3#..NAP200309-200401

PAINT REQ.

main76871-0E901iMCU3#..NAP200401-200602

PAINT REQ.

main76871-0E903supersedes 76871-0E012iGSU3#..NAP200801-200901

PAINT REQ.,SPECIAL EDITION

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0E010×9iMCU3#..NAP200309-200602

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0E010×2iMCU3#..NAP200309-200511

main76873-0E011×2iMCU3#..NAP200512-200602

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0E010×2iGSU3#..NAP200602-200608

76875PROTECTOR, REAR SPOILER, NO.4

main76875-0E010×2iMCU3#..NAP200512-200602

76879BCLIP, REAR SPOILER, NO.2

main76879-0E020iMCU3#..NAP200309-200602

76887SEAL, REAR SPOILER

main76887-0E010×5iMCU3#..NAP200309-200602

76887FSEAL, REAR SPOILER, NO.2

main76887-0E020iMCU3#..NAP200309-200602

76889CLIP, REAR SPOILER, NO.2

main76889-0E010×2iMCU3#..NAP200309-200602

8117CENTER STOP LAMP

→ Go to FIG 81-17

9010906340

main90109-06340

12 parts on this diagram · 1 diagram in section
