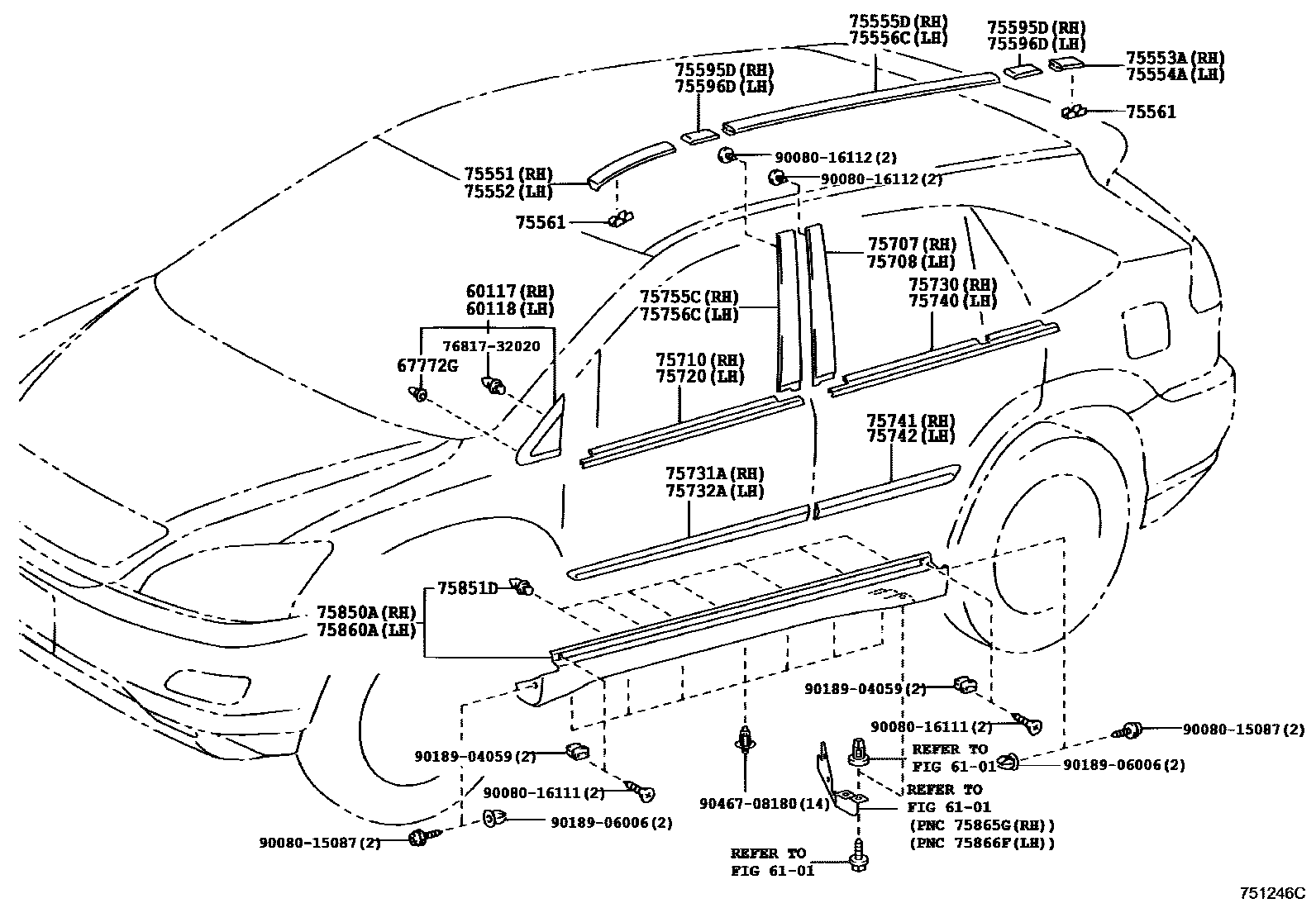

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
6101
67772GCAP, FRONT PILLAR COVER
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
SILVER ME.,1F7
DK.GRAY MC.,1G0
BLACK,202
BLACK,212
RED MC.CS.,3R1
BEIGE ME.,4R4
BEIGE ME.,4T1
SABLE M.M.,4T5
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
MD.GREEN M.M.,6U3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
75732AMOULDING, FRONT DOOR, OUTSIDE LH
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
SILVER ME.,1F7
DK.GRAY MC.,1G0
BLACK,202
BLACK,212
RED MC.CS.,3R1
BEIGE ME.,4R4
BEIGE ME.,4T1
SABLE M.M.,4T5
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
MD.GREEN M.M.,6U3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
SILVER ME.,1F7
DK.GRAY MC.,1G0
BLACK,202
BLACK,212
RED MC.CS.,3R1
BEIGE ME.,4R4
BEIGE ME.,4T1
SABLE M.M.,4T5
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
MD.GREEN M.M.,6U3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
75742MOULDING, REAR DOOR, OUTSIDE LH
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
SILVER ME.,1F7
DK.GRAY MC.,1G0
BLACK,202
BLACK,212
RED MC.CS.,3R1
BEIGE ME.,4R4
BEIGE ME.,4T1
SABLE M.M.,4T5
LT.OLIVE M.M.,6T1
DK.GREEN MC.,6T3
MD.GREEN M.M.,6U3
LT.BLUE ME.,8R6
DK.BLUE M.M.,8R7
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
75851DCLIP(FOR ROCKER PANEL MOULDING SET)
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
7681732020CLIP, BACK DOOR OUTSIDE GARNISH
main76817-32020
9008015087
main90080-15087
9008016111
main90080-16111
9008016112
main90080-16112
9018904059
main90189-04059
9018906006
main90189-06006
9046708180
main90467-08180
35 parts on this diagram · 1 diagram in section
