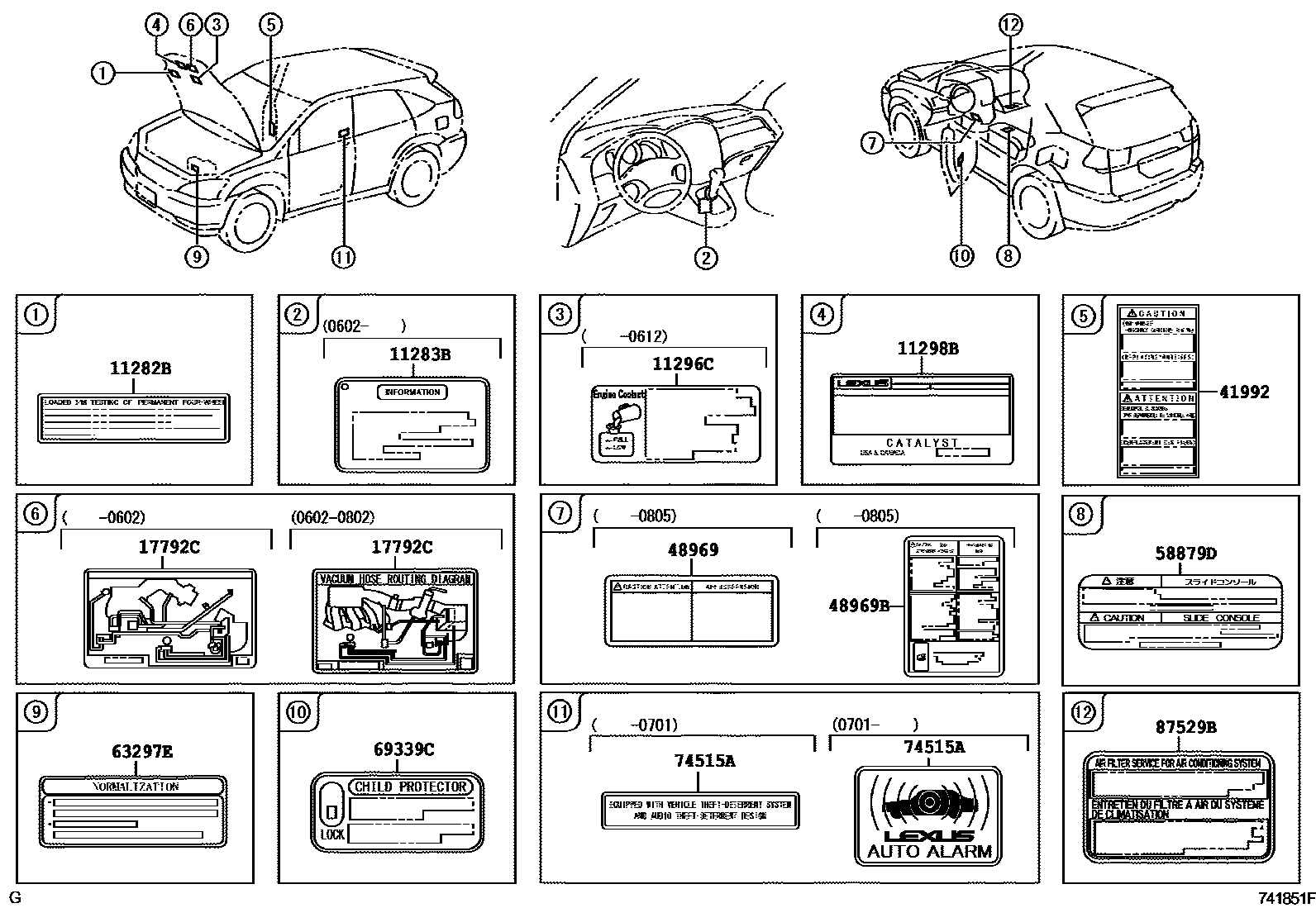

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11282BLABEL, LOADED TESTING CAUTION

main11282-74010i2GRFE..GSU35..NAP200602

11283BLABEL, LEAK DETECTION PUMP INFORMATION

main11294-28010i2GRFE..GSU3#..NAP200602

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i3MZFE..MCU3#..NAP200309-200602

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-20630i3MZFE..MCU33..NAP; 3MZFE..MCU38..NAP200309-200409

MARK = ZR

main11298-20760i3MZFE..MCU33..NAP; 3MZFE..MCU38..NAP200409-200509

MARK = 1U

main11298-20790i3MZFE..MCU33..NAP; 3MZFE..MCU38..NAP200509-200602

MARK = 4P

main11298-31160i2GRFE..GSU3#..NAP200602-200609

main11298-31161i2GRFE..GSU3#..NAP200610-200701

main11298-31430i2GRFE..GSU3#..NAP200701-200801

main11298-31600i2GRFE..GSU3#..NAP200801

17792CLABEL, ENGINE VACUUM HOSE INFORMATION

main17792-0P030i2GRFE..GSU3#..NAP200602-200802

main17792-20260i3MZFE..MCU3#..NAP200309-200602

41992LABEL, DIFFERENTIAL NOTICE

main41992-08010iMCU38..NAP200309-200602

48969LABEL, JACK UP CAUTION

main48969-48020iMCU3#..NAP200309-200602

SPORT PACKAGE

48969BLABEL, JACK UP CAUTION, NO.2

main48969-48040iMCU3#..NAP200309-200602

SPORT PACKAGE

58879DLABEL, CONSOLE DOOR LOCK CAUTION

main58879-0E010iMCU3#..NAP200309-200602

63297ELABEL, SLIDING ROOF CAUTION

main63297-48020iMCU3#..NAP200508-200602

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-AA020×2iMCU3#..NAP200309-200602

74515APLATE, THEFT WARNING

main74515-0E010×2iMCU3#..NAP200309-200602

main74515-30040×2iGSU3#..NAP200701

87529BLABEL, A/C FILTER INFORMATION

main87529-0E010iMCU3#..NAP200309-200602

13 parts on this diagram · 2 diagrams in section
