SEAT BELT & CHILD RESTRAINT SEAT

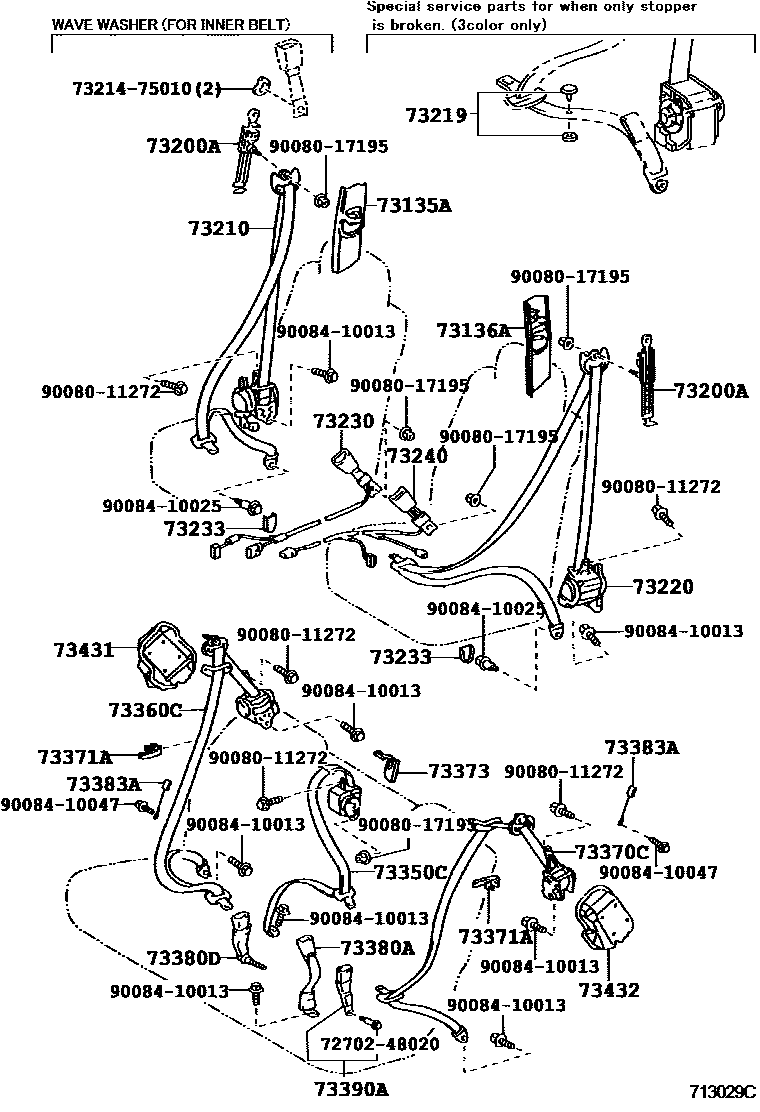

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-AA010-A0i200309-200602
IVORY,TRIM0#
main73023-AA010-B0i200602
LT.GRAY,TRIM11,12,22
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-AA010-A0i200602
IVORY,TRIM00,01
main73024-AA010-B0i200309-200602
LT.GRAY,TRIM1#,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-AA020×2i200309-200602
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0E010-A0i200602-200803
IVORY,TRIM00,01
main73210-0E010-B0i200602-200803
GRAY,TRIM11,12
main73210-0E010-C0i200309-200602
BLACK,TRIM2#
main73210-0E060-A0i200804
IVORY,TRIM00,01
main73210-0E060-B0i200804
GRAY,TRIM11,12
main73210-0E060-C0i200804
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
main73219-02010i200309-200602
BLACK
main73219-02020i200602
GRAY
main73219-02030i200309-200602
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0E010-A0i200309-200602
IVORY,TRIM0#
main73220-0E010-B0i200309-200602
GRAY,TRIM1#
main73220-0E010-C0i200309-200602
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0E020-A0i200309-200409
IVORY,TRIM0#
main73230-0E020-B0i200309-200409
LT.GRAY,TRIM1#
main73230-0E020-C0i200309-200409
BLACK,TRIM2#
main73230-0E030-A0i200409-200602
IVORY,TRIM0#
main73230-0E030-B0i200602-200901
LT.GRAY,TRIM1#
main73230-0E030-C0i200409-200602
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-AA010-A0×2i200309-200602
IVORY,TRIM0#
main73233-AA010-B4×2i200602-200901
LT.GRAY,TRIM1#
main73233-AA010-C0×2i200309-200602
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-0E010-A0i200309-200602
IVORY,TRIM0#
main73230-0E010-B0i200309-200602
LT.GRAY,TRIM1#
main73230-0E010-C0i200309-200602
BLACK,TRIM2#
73350CBELT ASSY, REAR SEAT, OUTER CENTER
main73350-0E010-A0i200309-200602
IVORY,TRIM0#
main73350-0E010-B0i200602-200803
GRAY,TRIM1#
main73350-0E010-C0i200602-200803
BLACK,TRIM2#
main73350-0E050-A0i200804-200901
IVORY,TRIM0#
main73350-0E050-B0i200804-200901
GRAY,TRIM1#
main73350-0E050-C0i200804-200901
BLACK,TRIM2#
73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH
main73360-0E010-A0i200602
IVORY,TRIM00,01
main73360-0E010-B0i200309-200602
GRAY,TRIM1#
main73360-0E010-C0i200602
BLACK,TRIM2#
73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH
main73370-0E010-A0i200309-200602
IVORY,TRIM0#
main73370-0E010-B0i200309-200602
GRAY,TRIM1#
main73370-0E010-C0i200309-200602
BLACK,TRIM2#
73371AHANGER REAR SEAT SHOULDER BELT
main73371-0E010-A0×2i200309-200602
IVORY,TRIM0#
main73371-0E010-B0×2i200602
LT.GRAY,TRIM11,12
main73371-0E010-C0×2i200309-200602
BLACK,TRIM2#
73373COVER, REAR SEAT SHOULDER BELT
main73373-0E011i200309-200602
73380ABELT ASSY, REAR SEAT, INNER
main73380-0E020-A0i200309-200602
IVORY,TRIM0#
main73380-0E020-B0i200309-200602
GRAY,TRIM1#
main73380-0E020-C0i200309-200602
BLACK,TRIM2#
73380DBELT ASSY, REAR SEAT, INNER
main73380-0E010-A0i200309-200602
IVORY,TRIM0#
main73380-0E010-B0i200602-200901
LT.GRAY,TRIM1#
main73380-0E010-C0i200309-200602
BLACK,TRIM2#
73383AHOOK, RR SEAT BELT
main73383-AA020×2i200309-200602
73390ABELT ASSY, REAR SEAT, INNER
main73480-0E010-A0i200309-200602
IVORY,TRIM0#
main73480-0E010-B0i200602-200901
LT.GRAY,TRIM1#
main73480-0E010-C0i200602-200901
BLACK,TRIM2#
73431COVER, REAR SEAT BELT RETRACTOR, RH
main73431-0E010i200309-200602
73432COVER, REAR SEAT BELT RETRACTOR, LH
main73432-0E010i200309-200602
7270248020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-48020
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9008011272
main90080-11272
9008017195
main90080-17195
9008410013
main90084-10013
9008410025
main90084-10025
9008410047
main90084-10047

27 parts on this diagram · 1 diagram in section
