FRONT SEAT & SEAT TRACK

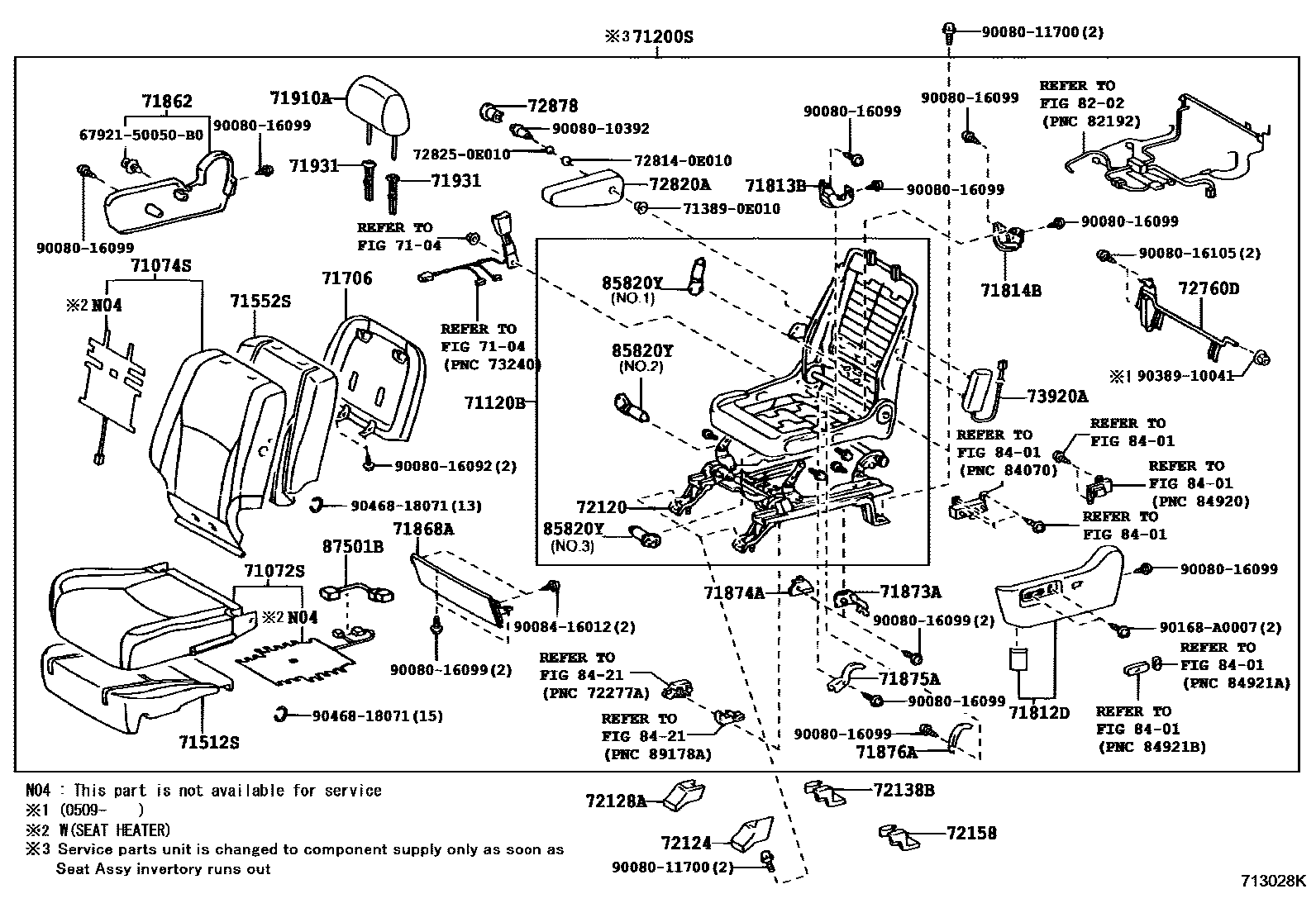

Parts diagram
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0E010-A0i200309-200602
IVORY,TRIM00,01
sub71072-48310
main71072-0E010-B0i200309-200602
LT.GRAY,TRIM11,15
sub71072-48310
main71072-0E020-A0supersedes 71072-0E010-A0i200309-200602
SEAT HEATER-WITH,IVORY,TRIM0#
sub71072-48320
main71072-0E020-B0supersedes 71072-0E010-B0i200309-200602
SEAT HEATER-WITH,LT.GRAY,TRIM1#
sub71072-48320
main71072-0E020-C0supersedes 71072-0E010-C0i200309-200602
SEAT HEATER-WITH,BLACK,TRIM2#
sub71072-48320
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0E010-A0i200309-200602
IVORY,TRIM00,01
sub71074-48410
main71074-0E010-B0i200309-200602
LT.GRAY,TRIM11,15
sub71074-48410
main71074-0E020-A0supersedes 71074-0E010-A0i200309-200602
SEAT HEATER-WITH,IVORY,TRIM0#
sub71074-48420
main71074-0E020-B0supersedes 71074-0E010-B0i200309-200602
SEAT HEATER-WITH,LT.GRAY,TRIM1#
sub71074-48420
main71074-0E020-C0supersedes 71074-0E010-C0i200309-200602
SEAT HEATER-WITH,BLACK,TRIM2#
sub71074-48420
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-0E010i200309-200602
71200SSEAT ASSY, FRONT LH
main71200-0E010-A2supersedes 71200-0E020-A2i200309-200409
SEAT HEATER-WITH,IVORY,TRIM0#
main71200-0E010-B3supersedes 71200-0E020-B3i200309-200409
SEAT HEATER-WITH,LT. GRAY,TRIM1#
main71200-0E010-C3supersedes 71200-0E020-C3i200309-200409
SEAT HEATER-WITH,BLACK,TRIM2#
main71200-0E011-A0supersedes 71200-0E020-A2i200509-200602
SEAT HEATER-WITH,IVORY,TRIM0#
main71200-0E011-A1supersedes 71200-0E021-A1i200602
SEAT HEARTER-WITH,IVORY,TRIM00,01
main71200-0E011-B0supersedes 71200-0E020-B3i200509-200602
SEAT HEATER-WITH,LT. GRAY,TRIM1#
main71200-0E011-B1supersedes 71200-0E021-B1i200602
SEAT HEARTER-WITH,LT GRAY,TRIM11,12
main71200-0E011-C0supersedes 71200-0E021-C0i200409-200509
SEAT HEATER-WITH,BLACK,TRIM2#
main71200-0E011-C1supersedes 71200-0E021-C1i200602
SEAT HEARTER-WITH,BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0E010i200309-200602
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0E010i200309-200602
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71706-48010-A2i200309-200408
IVORY,TRIM0#
main71706-48010-B5i200309-200408
LT.GRAY,TRIM1#
main71706-48010-C5i200309-200408
BLACK,TRIM2#
main71706-48050-A0i200409-200602
IVORY,TRIM0#
main71706-48050-A2i200602
IVORY,TRIM00,01
main71706-48050-B0i200409-200602
LT.GRAY,TRIM1#
main71706-48050-B2i200602
LT.GRAY,TRIM11,12
main71706-48050-C0i200409-200602
BLACK,TRIM2#
main71706-48050-C1i200602
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0E010-A0i200309-200602
IVORY,TRIM00,01
main71812-0E010-B0i200602
LT.GRAY,TRIM11,12
main71812-0E010-C0i200309-200602
BLACK,TRIM2#
71813BSHIELD, FRONT SEATBACK, RH
main71813-0E020i200309-200602
71814BSHIELD, FRONT SEATBACK, LH
main71814-0E020i200309-200602
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0E010-A0i200309-200602
IVORY,TRIM00,01
main71862-0E010-B0i200602
LT.GRAY,TRIM11,12
main71862-0E010-C0i200602
BLACK,TRIM2#
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71867-0E010-A0i200602
IVORY,TRIM00,01
main71867-0E010-B0i200309-200602
LT.GRAY,TRIM11,15
main71867-0E010-C0i200309-200602
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-0E010i200309-200409
main71873-33030i200409-200602
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-0E020i200602
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0E010i200309-200409
main71874-33070i200409-200602
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0E020i200309-200602
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-0E010-A0i200602
IVORY,TRIM00,01,PASSENGER SIDE
main71875-0E010-B0i200309-200602
LT.GRAY,TRIM11,15,PASSENGER SIDE
main71875-0E010-C0i200602
BLACK,TRIM2#,PASSENGER SIDE
main71876-0E020-A0i200602
IVORY,TRIM00,01,DRIVER SIDE
main71876-0E020-B0i200602
LT.GRAY,TRIM11,12,DRIVER SIDE
main71876-0E020-C0i200309-200602
BLACK,TRIM2#,DRIVER SIDE
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71875-0E020-A0i200602
IVORY,TRIM00,01,DRIVER SIDE
main71875-0E020-B0i200602
LT.GRAY,TRIM11,12,DRIVER SIDE
main71875-0E020-C0i200602
BLACK,TRIM2#,DRIVER SIDE
main71876-0E010-A0i200309-200602
IVORY,TRIM00,01,PASSENER SIDE
main71876-0E010-B0i200602
LT.GRAY,TRIM11,12,PASSENER SIDE
main71876-0E010-C0i200309-200602
BLACK,TRIM2#,PASSENER SIDE
71910AHEADREST ASSY, FRONT SEAT
main71910-0E010-A0×2i200602
IVORY,TRIM00,01
main71910-0E010-B0×2i200602
LT.GRAY,TRIM11,12
main71910-0E010-C0×2i200309-200602
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A0×2i200602
W(LOCK)&W(BUTTON),IVORY,TRIM00,01
sub71930-52030
sub71930-44020
main71930-42020-B2×2i200602
W(LOCK)&W(BUTTON),LT.GRAY,TRIM11,12
sub71930-52030
sub71930-44020
main71930-42020-C0×2i200602
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-52030
sub71930-44020
main71931-42020-A0×2i200602
W(LOCK)&W/O(BUTTON),IVORY,TRIM00,01
main71931-42020-B2×2i200309-200602
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM11,15
main71931-42020-C0×2i200309-200602
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-0E010i200309-200602
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-0E010-A0i200602
IVORY,TRIM00,01
main72124-0E010-B0i200309-200602
LT.GRAY,TRIM1#
main72124-0E010-C0i200309-200602
BLACK,TRIM2#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-0E010-A0i200309-200602
IVORY,TRIM0#
main72128-0E010-B0i200602
LT.GRAY,TRIM11,12
main72128-0E010-C0i200602
BLACK,TRIM2#
72138BCOVER, SEAT TRACK, LH
main72158-0E010-A0i200602
IVORY,TRIM00,01
main72158-0E010-B0i200309-200602
LT.GRAY,TRIM1#
main72158-0E010-C0i200309-200602
BLACK,TRIM2#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72138-0E010-A0i200309-200602
IVORY,TRIM0#
main72138-0E010-B0i200309-200602
LT.GRAY,TRIM1#
main72138-0E010-C0i200309-200602
BLACK,TRIM2#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-0E010i200309-200602
72820AARMREST ASSY, SEAT, LH
main72820-0E010-A0i200309-200602
IVORY,TRIM00,01
main72820-0E010-B0i200602
LT.GRAY,TRIM11,12
main72820-0E010-C0i200602
BLACK,TRIM2#
72878COVER, SEAT ARMREST, LH
main72848-0E010-A0i200602
IVORY,TRIM00,01
main72848-0E010-B0i200602
LT.GRAY,TRIM11,12
main72848-0E010-C0i200309-200602
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0E010i200309-200409
main73920-0E011i200409-200602
main73920-0E012i200606-200612
main73920-0E013i200701-200901
8202
8401
8421
85820YMOTOR ASSY, POWER SEAT
main85801-60020i200602
NO.1
main85801-60030i200309-200602
NO.2
main85801-60040i200309-200602
NO.3
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-05010i200309-200602
SEAT HEATER-WITH
6792150050B0RETAINER, FRONT DOOR SCUFF PLATE
main67921-50050B0
713890E010SPACER, CENTER SEAT HINGE
main71389-0E010
728140E010
main72814-0E010
728250E010CLUTCH, PROTECTOR MAIN, RH
main72825-0E010
9008010392
main90080-10392
9008011700
main90080-11700
9008016092
main90080-16092
9008016099
main90080-16099
9008016105
main90080-16105
9008416012
main90084-16012
90168A0007
main90168-A0007
9038910041
main90389-10041
9046818071
main90468-18071

48 parts on this diagram · 2 diagrams in section
