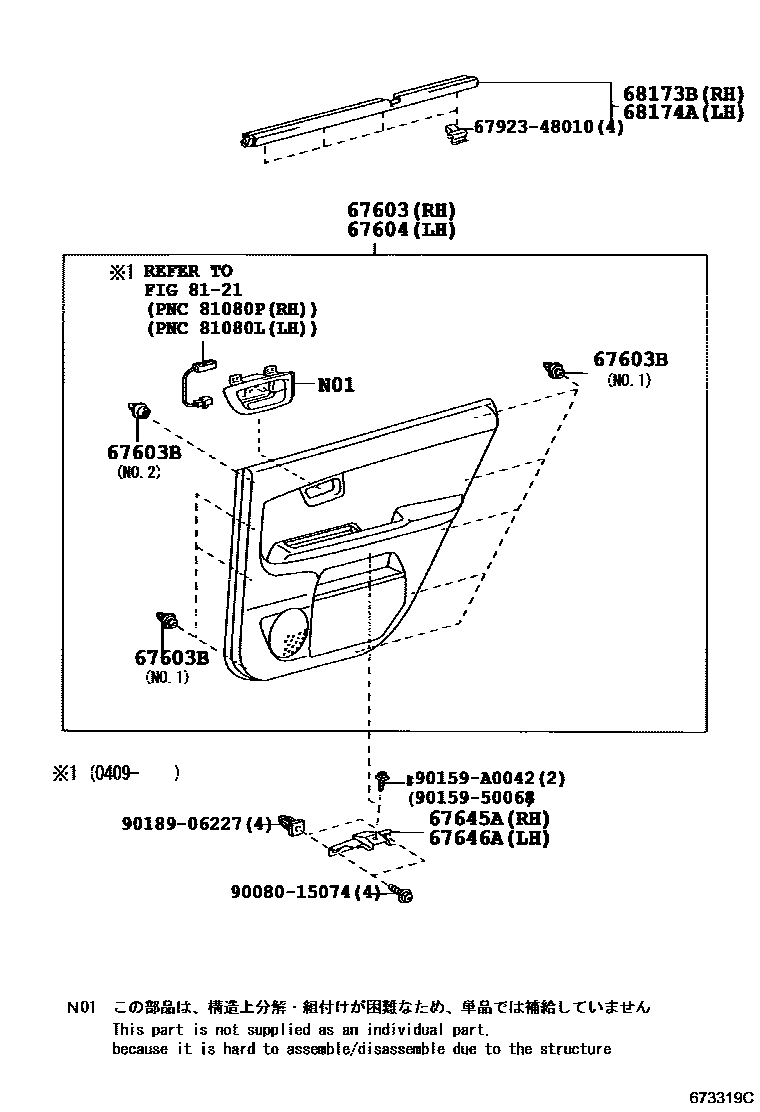

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-0E010-A1iGSU3#..NAP200309-200801

IVORY,TRIM0#

main67630-0E010-A1iGSU3#..NAP200801

IVORY,TRIM00

main67630-0E010-A2iGSU3#..NAP200801

IVORY,TRIM01

main67630-0E010-B1iGSU3#..NAP200702

LT.GRAY,TRIM11

main67630-0E010-B1iMCU3#..NAP200309-200702

LT.GRAY,TRIM1#

main67630-0E010-B2iGSU3#..NAP200702

DK GRAY,TRIM12

main67630-0E010-C1iGSU3#..NAP200309-200602

BLACK,TRIM2#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-10162iMCU3#..NAP200309-200602

NO.2

main90467-A0005iGSU3#..NAP200309-200602

NO.1

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-0E010-A1iGSU3#..NAP200309-200801

IVORY,TRIM0#

main67640-0E010-A1iGSU3#..NAP200801

IVORY,TRIM00

main67640-0E010-A2iGSU3#..NAP200801

IVORY,TRIM01

main67640-0E010-B1iGSU3#..NAP200309-200702

LT.GRAY,TRIM1#

main67640-0E010-B1iGSU3#..NAP200702

LT.GRAY,TRIM11

main67640-0E010-B2iGSU3#..NAP200702

DK GRAY,TRIM12

main67640-0E010-C1iGSU3#..NAP200309-200602

BLACK,TRIM2#

67645ABRACKET, REAR DOOR ARMREST SET, RH

main67646-0E010iMCU3#..NAP200309-200602

67646ABRACKET, REAR DOOR ARMREST SET, LH

main67646-0E010iMCU3#..NAP200309-200602

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-48030iMCU3#..NAP200309-200311

sub68173-48031

main68173-48031iMCU3#..NAP200311-200602

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-48030iMCU3#..NAP200309-200311

sub68174-48031

main68174-48031iMCU3#..NAP200311-200602

8121

6792348010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-48010

9008015074

main90080-15074

9015950068

main90159-50068

90159A0042

main90159-A0042

9018906227

main90189-06227

13 parts on this diagram · 2 diagrams in section
