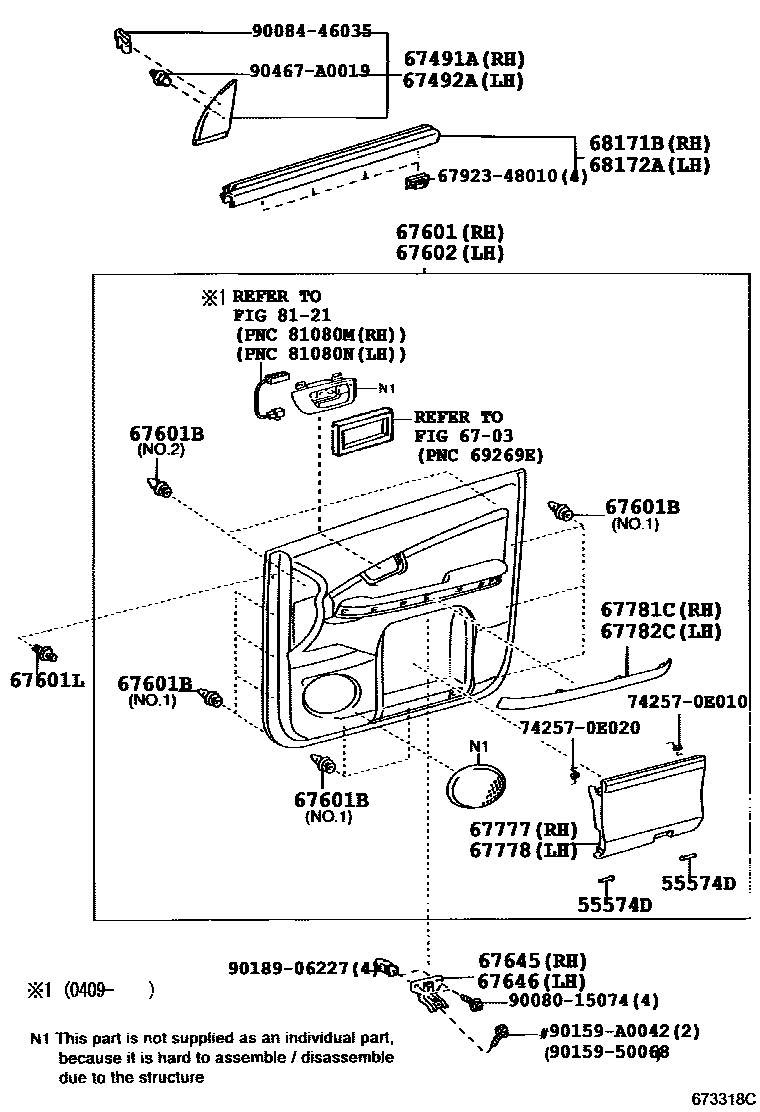

FRONT DOOR PANEL & GLASS
55574DSHAFT(FOR FRONT DOOR TRIM BOARD)
6703
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
IVORY,TRIM00
IVORY,TRIM0#
IVORY,TRIM01
LT.GRAY,TRIM1#
LT.GRAY,TRIM11
DK GRAY,TRIM12
BLACK,TRIM2#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
NO.2
NO.1
67601LCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
IVORY,TRIM0#
IVORY,TRIM00
IVORY,TRIM01
LT.GRAY,TRIM1#
LT.GRAY,TRIM11
DK GRAY,TRIM12
BLACK,TRIM2#
67645BRACKET, FRONT DOOR ARMREST SET, RH
67646BRACKET, FRONT DOOR ARMREST SET, LH
67777POCKET, FRONT DOOR TRIM, RH
IVORY,TRIM0#
IVORY,TRIM00,01
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
67778POCKET, FRONT DOOR TRIM, LH
IVORY,TRIM00,01
IVORY,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM11,12
BLACK,TRIM2#
67781CORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH
DK.GRAY,TRIM12
MD.BROWN,TRIM1#,2#
MD.BROWN,TRIM01,1#,2#
MD.BROWN,TRIM01,11,2#
LIGHTBROWN,TRIM0#
LIGHTBROWN,TRIM00
67782CORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH
DK.GRAY,TRIM12
MD.BROWN,TRIM01,11,2#
MD.BROWN,TRIM01,1#,2#
MD.BROWN,TRIM1#,2#
LIGHTBROWN,TRIM00
LIGHTBROWN,TRIM0#
8121
6792348010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-48010
742570E010SPRING, ARMREST, NO.1
main74257-0E010
742570E020SPRING, ARMREST, NO.1
main74257-0E020
9008015074
main90080-15074
9008446035
main90084-46035
9015950068
main90159-50068
90159A0042
main90159-A0042
9018906227
main90189-06227
90467A0019
main90467-A0019
26 parts on this diagram · 2 diagrams in section
