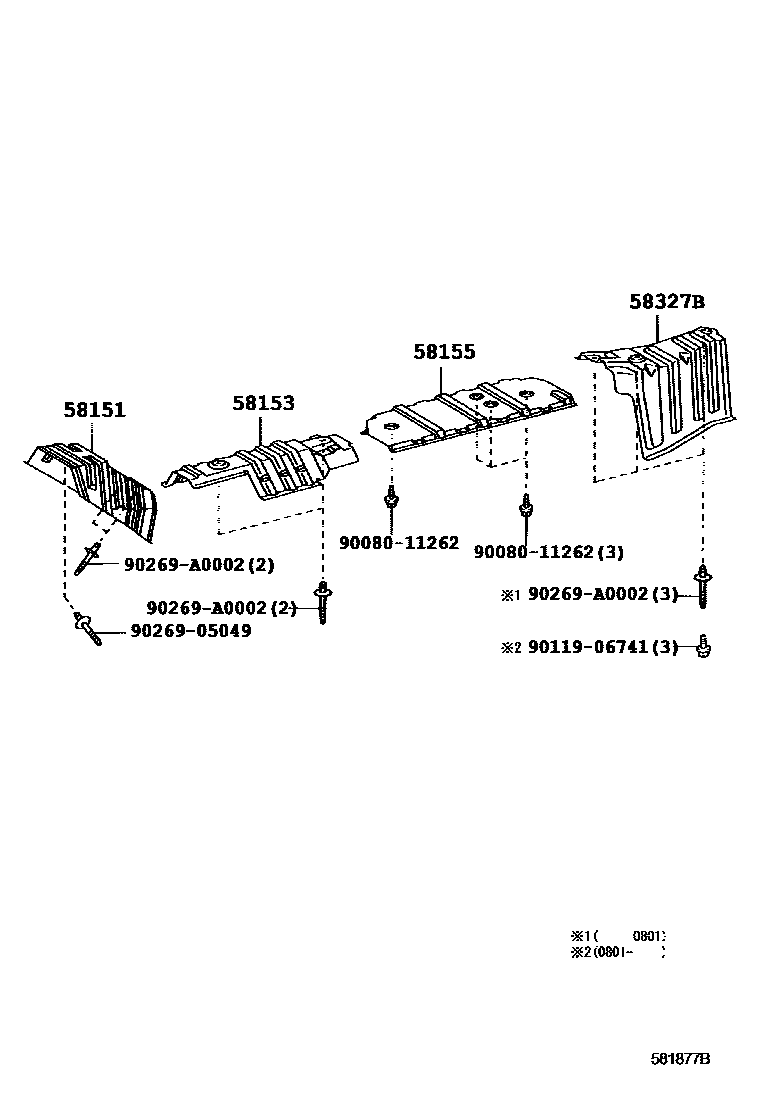

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0E010iMCU3#..NAP200309-200602

main58151-0E011iGSU3#..NAP200710-200806

main58151-0E012iGSU3#..NAP200807

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0E010iMCU3#..NAP200309-200602

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-0E010iMCU3#..NAP200309-200602

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0E010iMCU3#..NAP200309-200602

main58327-0E011iGSU3#..NAP200801

9008011262

main90080-11262

9011906741

main90119-06741

9026905049

main90269-05049

90269A0002

main90269-A0002

8 parts on this diagram · 1 diagram in section
