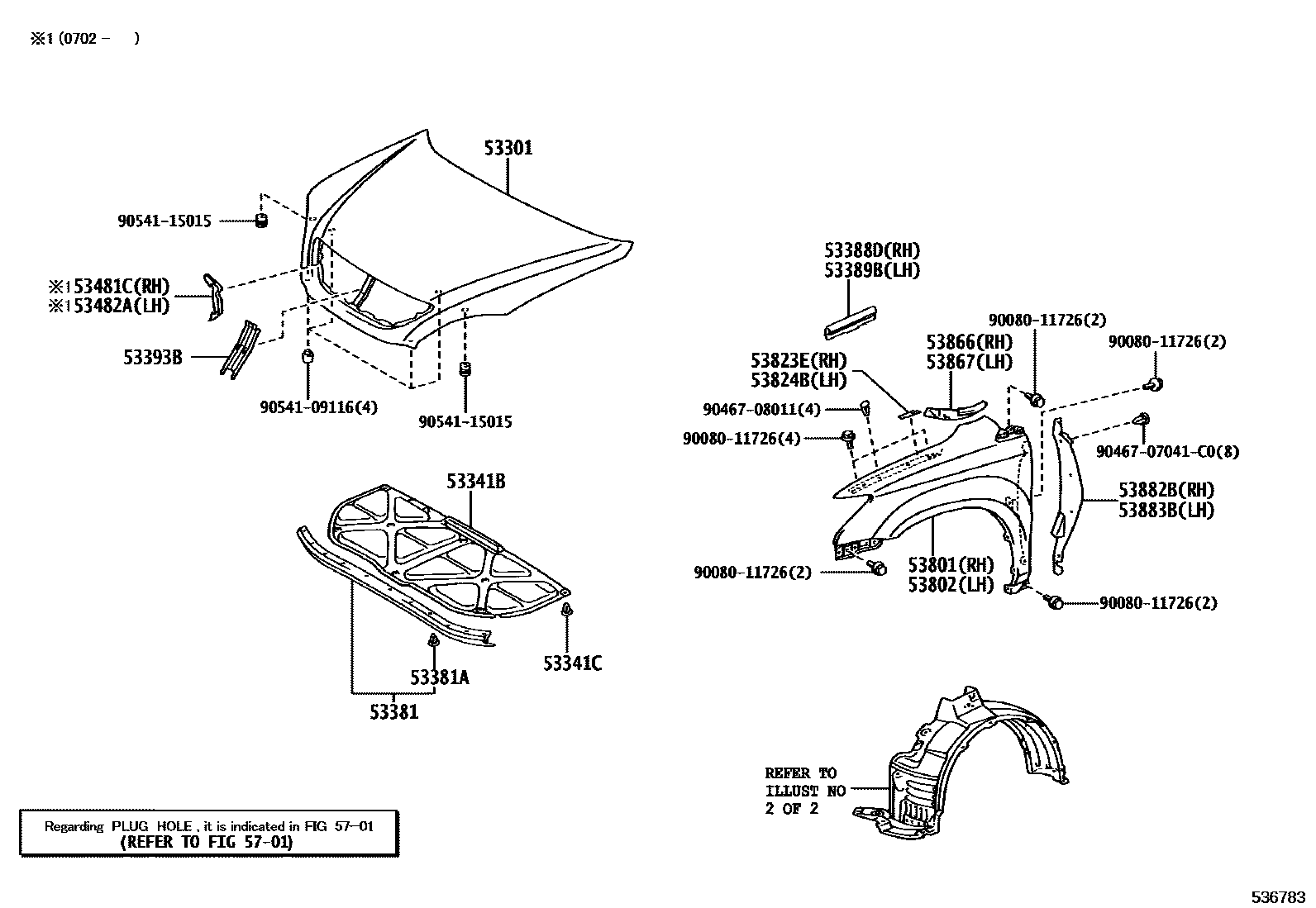

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0E020iMCU3#..NAP200309-200602

CANADA SPEC

53341BINSULATOR, HOOD

main53341-0E010iMCU3#..NAP200309-200602

main53341-0E011iGSU3#..NAP200602

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003×8iMCU3#..NAP200309-200602

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0E010iMCU3#..NAP200309-200602

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-A0009×11iMCU3#..NAP200309-200602

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0E010iMCU3#..NAP200309-200602

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0E010iMCU3#..NAP200309-200602

53393BPROTECTOR, HOOD, FRONT

main53393-0E010iMCU3#..NAP200309-200602

53481CBRACKET, HOOD SUPPORT, RH, NO.1

main53481-0E030iGSU3#..NAP200702

53482ABRACKET, HOOD SUPPORT, LH, NO.1

main53482-0E020iGSU3#..NAP200702

53801FENDER SUB-ASSY, FRONT RH

main53801-0E010iMCU3#..NAP200309-200602

CANADA SPEC

53802FENDER SUB-ASSY, FRONT LH

main53802-0E010iMCU3#..NAP200309-200602

CANADA SPEC

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-0E010iGSU3#..NAP200701

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-0E010iGSU3#..NAP200701

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0E010iMCU3#..NAP200309-200602

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0E010iMCU3#..NAP200309-200602

53882BSEAL, FRONT FENDER, RH

main53882-0E010iMCU3#..NAP200309-200602

53883BSEAL, FRONT FENDER, LH

main53883-0E010iMCU3#..NAP200309-200602

5701HOLE PLUG

→ Go to FIG 57-01

9008011726

main90080-11726

9046707041C0

main90467-07041C0

9046708011

main90467-08011

9054109116

main90541-09116

9054115015

main90541-15015

24 parts on this diagram · 2 diagrams in section
