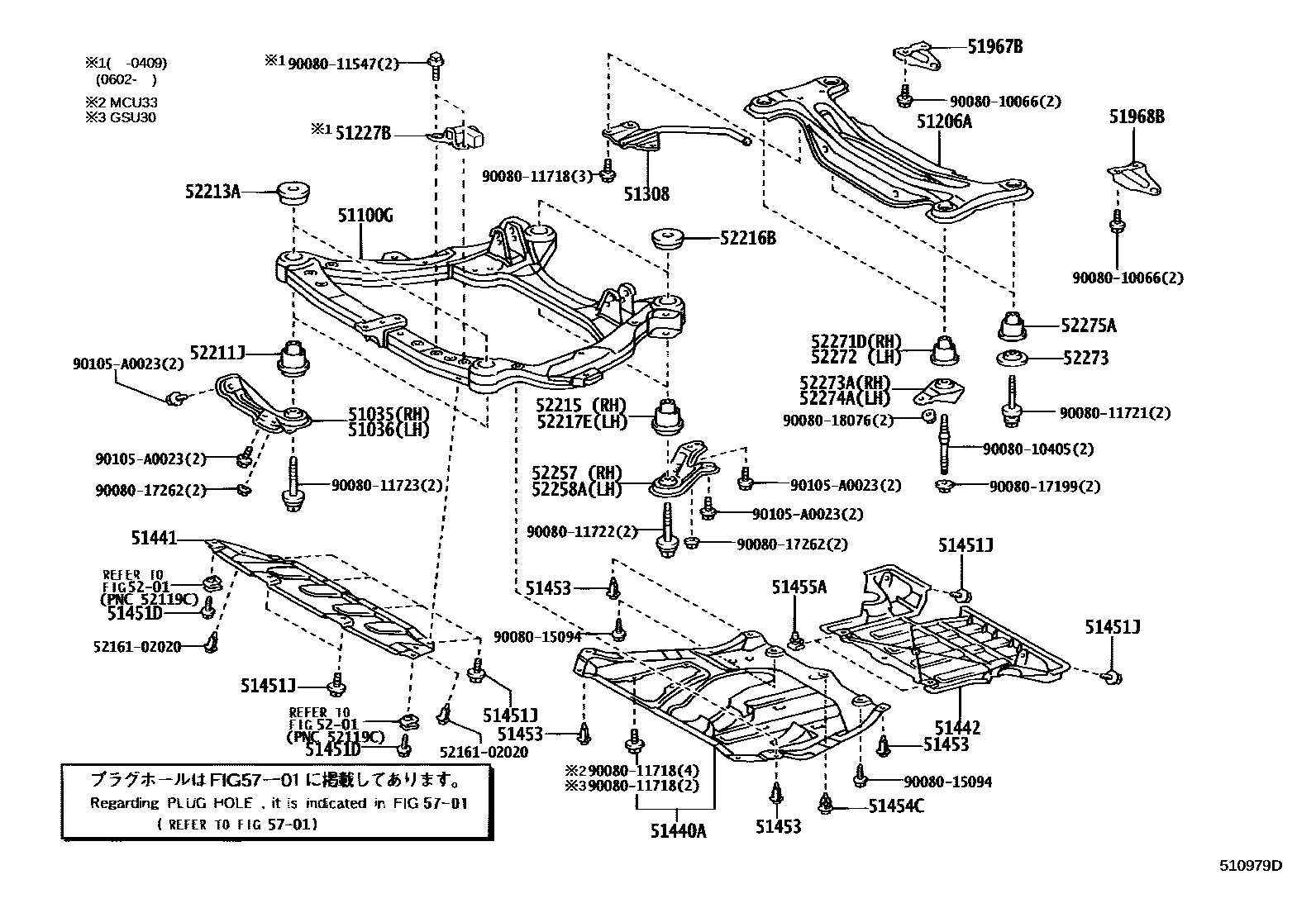

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0E010iGSU3#..NAP200602

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0E010iMCU3#..NAP200309-200602

51100GFRAME ASSY, FRONT

main51100-0E010iMCU3#..NAP200309-200602

main51100-0E011iGSU3#..NAP200807

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E010iMCU33..NAP200309-200312

main51206-0E011iMCU33..NAP200401-200503

main51206-0E012iMCU33..NAP200504-200602

main51206-0E013iGSU30..NAP200602

main51206-0E020iMCU38..NAP200309-200602

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-0E010iMCU33..NAP200309-200409

main51227-0E011iGSU3#..NAP200602

51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP

main51308-0E011iMCU33..NAP200309-200512

main51308-0E012iGSU30..NAP200602

51440ACOVER ASSY, ENGINE UNDER

main51440-0E010iMCU3#..NAP200309-200602

main51440-0E020iGSU3#..NAP200602

51441COVER, ENGINE UNDER, NO.1

main51441-0E010iMCU3#..NAP200309-200602

51442COVER, ENGINE UNDER, NO.2

main51442-0E010iMCU3#..NAP200309-200602

51451DSCREW, NO.1

main90080-15090×2iMCU3#..NAP200309-200602

51451JBOLT, NO.1

main90080-11718×8iMCU3#..NAP200309-200602

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-0E010×4iMCU3#..NAP200309-200602

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-0E010iMCU3#..NAP200309-200602

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-0E010×2iMCU3#..NAP200309-200602

51967BHOOK, TRANSPORT, REAR RH

main51967-0E010iMCU3#..NAP200309-200602

51968BHOOK, TRANSPORT, REAR LH

main51968-0E010iMCU3#..NAP200309-200602

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-0E010×2iGSU3#..NAP200602

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-0E010×2iMCU3#..NAP200309-200602

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06030iMCU3#..NAP200309-200602

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06030×2iMCU3#..NAP200309-200602

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06010iMCU3#..NAP200309-200602

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-0E010iMCU3#..NAP200309-200602

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-0E010iMCU3#..NAP200309-200602

main51024-0E011iGSU3#..NAP200807

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-0E010×2iGSU35..NAP200602

main52271-0E020iMCU33..NAP200309-200602

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-0E010×2iGSU35..NAP200602

main52272-0E020iGSU30..NAP200602

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010×2iMCU33..NAP200309-200602

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-0E010iMCU33..NAP200309-200602

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-0E010iMCU33..NAP200309-200602

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06050×2iMCU33..NAP200309-200602

main52275-0E010×2iMCU38..NAP200309-200602

5701HOLE PLUG

→ Go to FIG 57-01

5216102020CUSHION, REAR BUMPER GUARD, NO.1

main52161-02020

9008010066

main90080-10066

9008010405

main90080-10405

9008011547

main90080-11547

9008011718

main90080-11718

9008011721

main90080-11721

9008011722

main90080-11722

9008011723

main90080-11723

9008015094

main90080-15094

9008017199

main90080-17199

9008017262

main90080-17262

9008018076

main90080-18076

90105A0023

main90105-A0023

44 parts on this diagram · 2 diagrams in section
