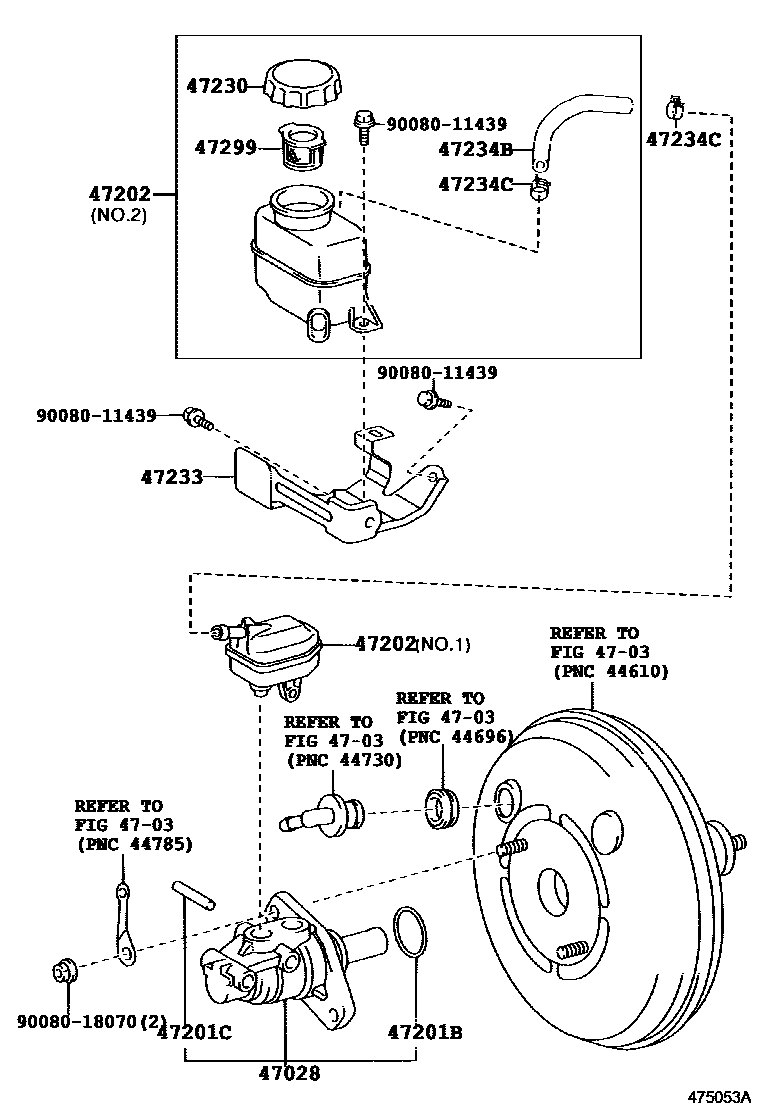

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-0E010iMCU3#..NAP200405-200602

main47028-48021iMCU3#..NAP200309-200405

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGSU3#..NAP200602

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMCU3#..NAP200309-200602

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0E010iMCU3#..NAP200309-200602

NO.2

main47220-48020iGSU3#..NAP200602-200901

NO.1

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iMCU3#..NAP200309-200602

47233BRACKET, RESERVOIR

main47233-0E010iMCU3#..NAP200309-200602

47234BTUBE, RESERVOIR, NO.1

main47234-48060iMCU3#..NAP200309-200602

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90080-46354×2iMCU3#..NAP200309-200602

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCU3#..NAP200309-200602

9008011439

main90080-11439

9008018070

main90080-18070

12 parts on this diagram · 1 diagram in section
