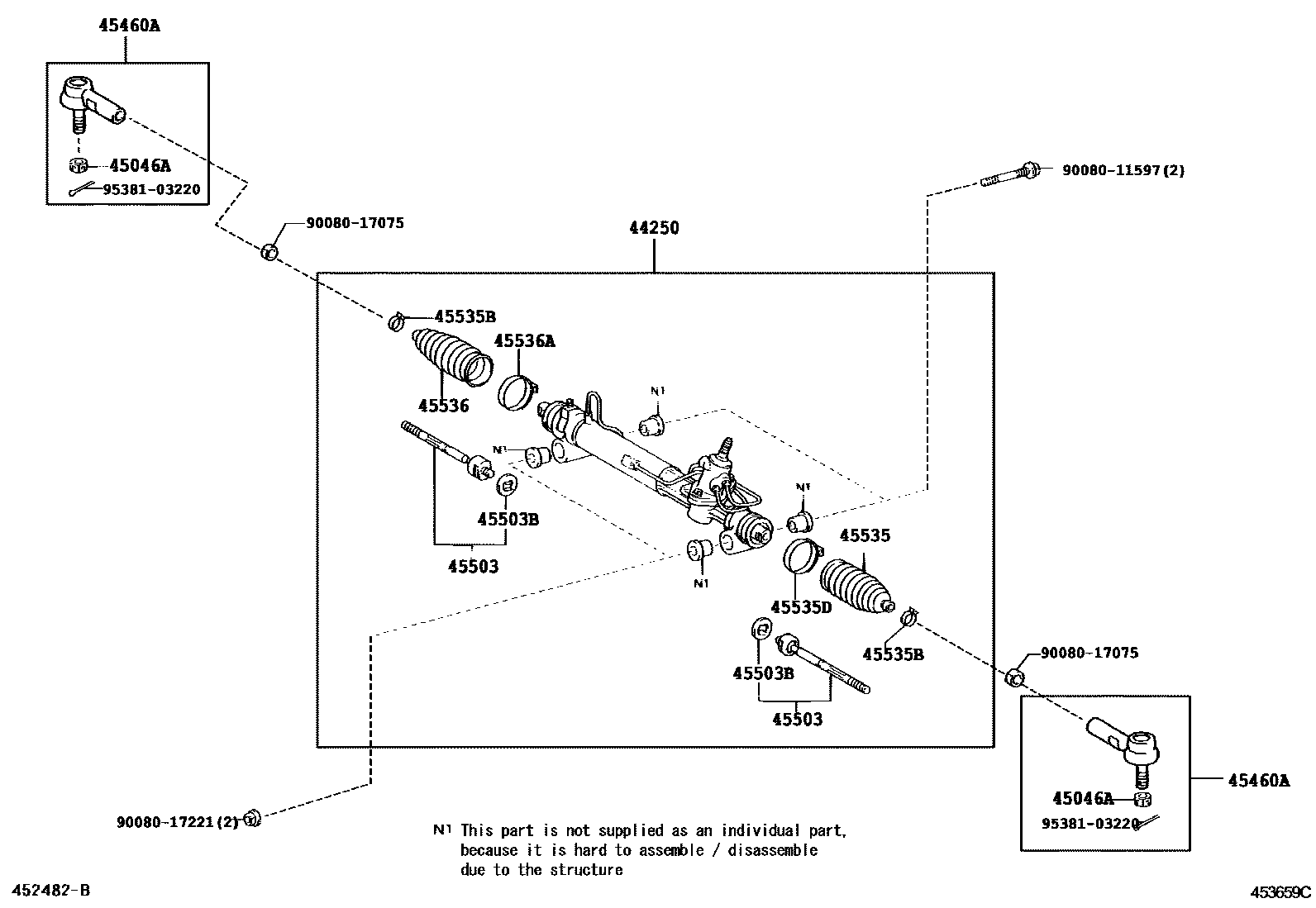

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0E010iMCU3#..NAP200309-200602

main44250-0E011iGSU3#..NAP200809-200901

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220×2iMCU3#..NAP200309-200602

45460AROD ASSY, TIE

main45460-09060×2iMCU3#..NAP200309-200602

45503END SUB-ASSY, STEERING RACK

main45503-09270×2iMCU3#..NAP200309-200602

45503BWASHER, CLAW(FOR STEERING RACK END)

main90080-21005×2iMCU3#..NAP200309-200602

OD=38

45535BOOT, STEERING RACK, NO.1

main45535-0E010iMCU3#..NAP200401-200602

main45535-48030iMCU3#..NAP200309-200312

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153×2iMCU3#..NAP200309-200602

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90080-46340iGSU3#..NAP200602

45536BOOT, STEERING RACK, NO.2

main45535-0E010iMCU3#..NAP200401-200602

main45535-48030iMCU3#..NAP200309-200312

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-46340iMCU3#..NAP200309-200602

9008011597

main90080-11597

9008017075

main90080-17075

9008017221

main90080-17221

9538103220

main95381-03220

14 parts on this diagram · 2 diagrams in section
