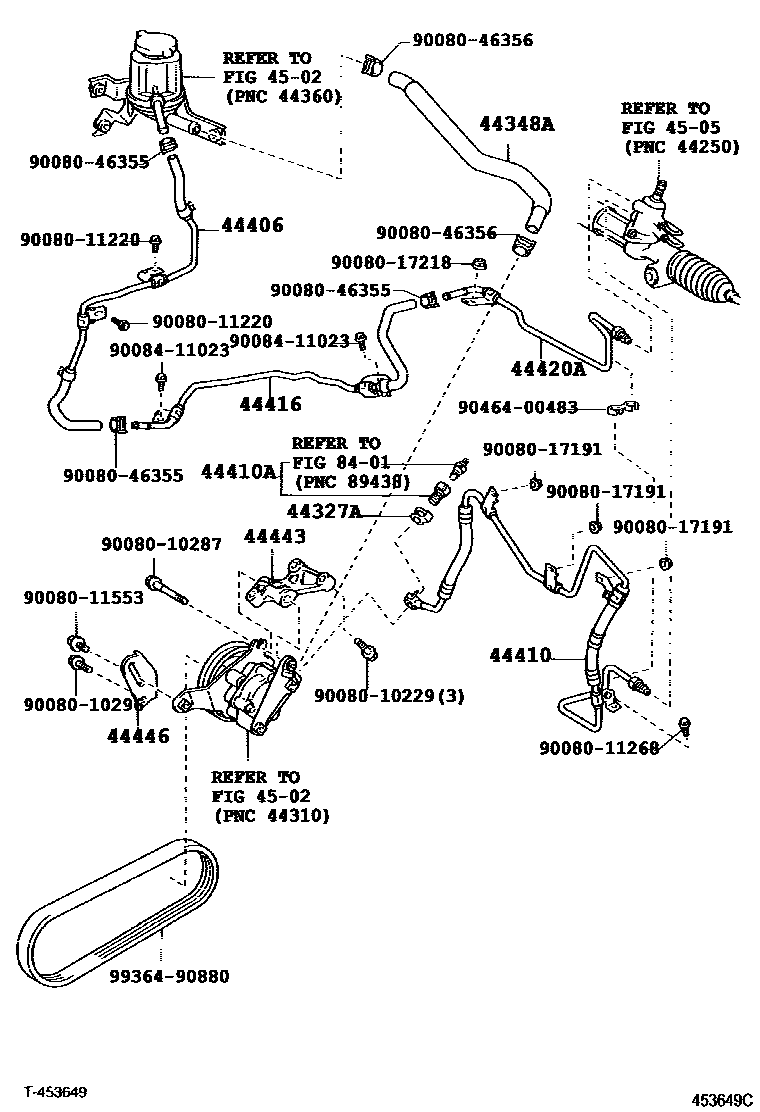

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCU3#..NAP200309-200602

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0E010iMCU3#..NAP200309-200602

main44348-0E020iGSU3#..NAP200602-200901

44406TUBE SUB-ASSY, RETURN

main44406-0E011iMCU3#..NAP200309-200602

main44406-0E020iGSU3#..NAP200602

44410TUBE ASSY, PRESSURE FEED

main44410-0E011iMCU3#..NAP200309-200602

main44410-0E020iGSU3#..NAP200602-200701

main44410-0E021iGSU3#..NAP200702

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-08010iMCU3#..NAP200309-200602

main96341-41603iGSU3#..NAP200602

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0E011iMCU3#..NAP200309-200602

main44416-0E020iGSU3#..NAP200602-200605

main44416-0E021iGSU3#..NAP200606

44420ATUBE ASSY, RETURN

main44420-0E010iMCU3#..NAP200309-200602

main44420-0E020iGSU3#..NAP200602

44443BRACKET, PUMP

main44443-33041iMCU3#..NAP200309-200602

44446STRUT, ADJUSTING

main44446-28030iMCU3#..NAP200309-200602

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010229

main90080-10229

9008010287

main90080-10287

9008010296

main90080-10296

9008011220

main90080-11220

9008011268

main90080-11268

9008011553

main90080-11553

9008017191

main90080-17191

9008017218

main90080-17218

9008046355

main90080-46355

9008046356

main90080-46356

9008411023

main90084-11023

9046400483

main90464-00483

9936490880

main99364-90880

25 parts on this diagram · 2 diagrams in section
