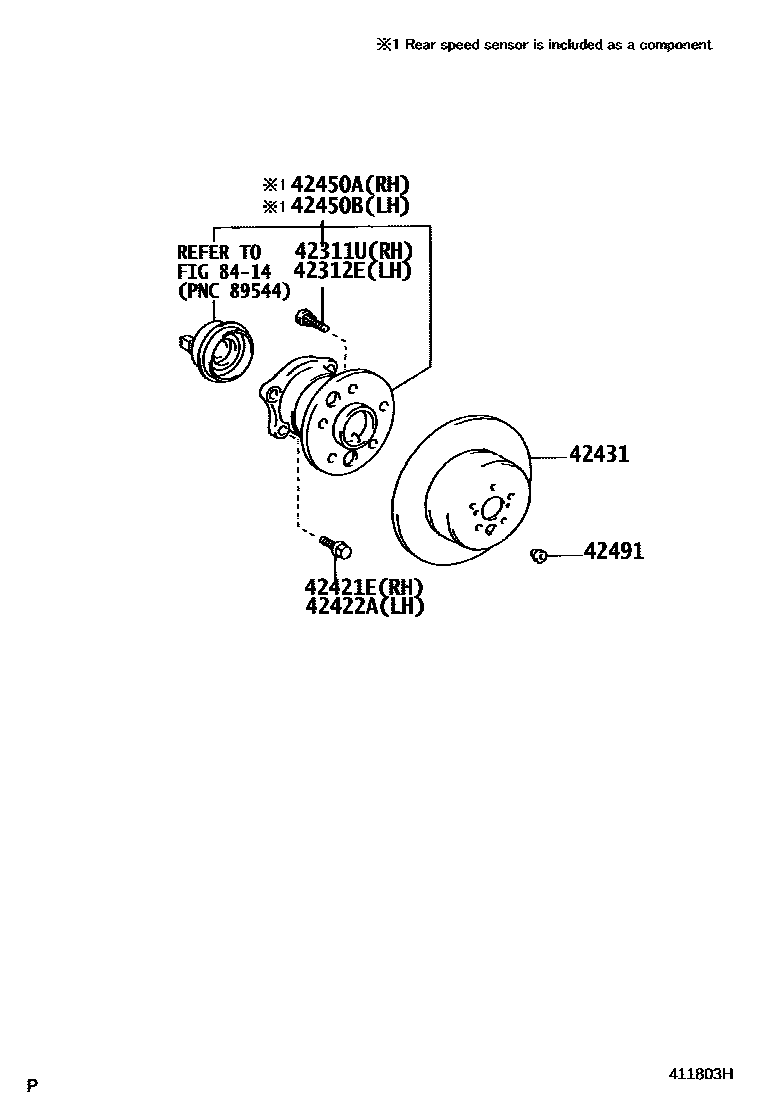

REAR AXLE SHAFT & HUB

0001 1 0002 1RH 0003 1LH 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMCU38..NAP200309-200511

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMCU38..NAP200309-200511

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90080-10397×4iMCU3#..NAP200309-200602

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90080-10397×4iMCU3#..NAP200309-200602

42431DISC, REAR

main42431-0E010×2iMCU3#..NAP200309-200408

main42431-0E011×2iMCU3#..NAP200409-200602

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0E010iMCU33..NAP200309-200602

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-0E010iMCU33..NAP200309-200602

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iGSU3#..NAP200801-200901

(J)

main47493-0E010×2iMCU3#..NAP200309-200602

8414ABS & VSC

→ Go to FIG 84-14

9 parts on this diagram · 4 diagrams in section
