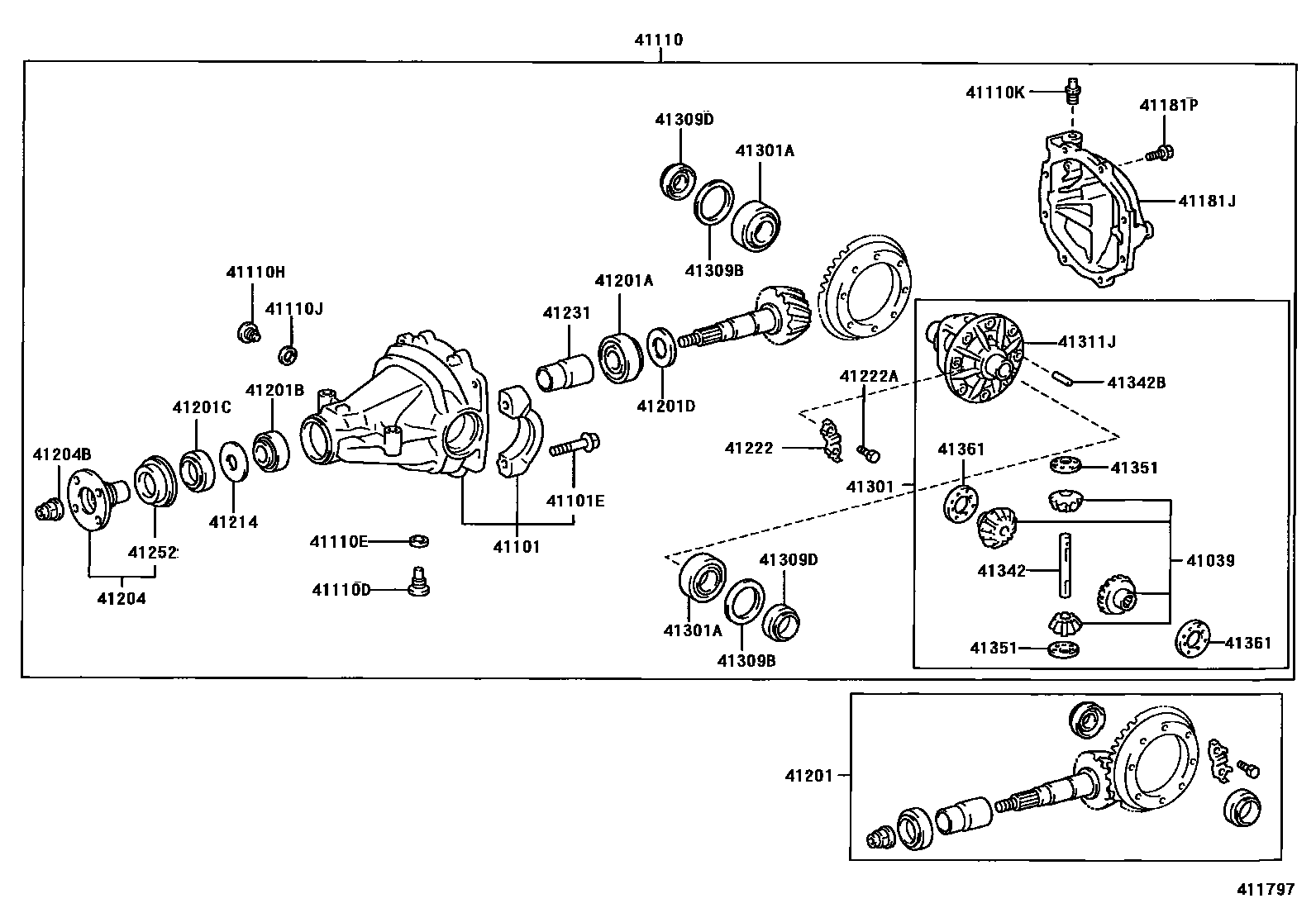

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:14=2.928
*FGR=41:14=2.928
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41181JCOVER, REAR DIFFERENTIAL CARRIER
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:14=2.928
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.30,MARK 30
T=2.31,MARK 31
T=2.32,MARK 32
T=2.33,MARK 33
T=2.34,MARK 34
T=2.35,MARK 35
T=2.36,MARK 36
T=2.37,MARK 37
T=2.38,MARK 38
T=2.39,MARK 39
T=2.40,MARK 40
T=2.41,MARK 41
T=2.42,MARK 42
T=2.43,MARK 43
T=2.44,MARK 44
T=2.45,MARK 45
T=2.46,MARK 46
T=2.47,MARK 47
T=2.48,MARK 48
T=2.49,MARK 49
T=2.50,MARK 50
T=2.51,MARK 51
T=2.52,MARK 52
T=2.53,MARK 53
T=2.54,MARK 54
T=2.55,MARK 55
T=2.56,MARK 56
T=2.57,MARK 57
T=2.58,MARK 58
T=2.59,MARK 59
T=2.60,MARK 60
T=2.61,MARK 61
T=2.62,MARK 62
T=2.63,MARK 63
T=2.64,MARK 64
T=2.65,MARK 65
T=2.66,MARK 66
T=2.67,MARK 67
T=2.68,MARK 68
T=2.69,MARK 69
T=2.70,MARK 70
T=2.71,MARK 71
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=33.5
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41309BWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.22
T=2.25
T=2.28
T=2.31
T=2.34
T=2.37
T=2.40
T=2.43
T=2.46
T=2.49
T=2.52
T=2.55
T=2.58
T=2.61
T=2.64
T=2.67
T=2.70
T=2.73
T=2.76
T=2.79
T=2.82
T=2.85
T=2.88
T=2.91
T=2.94
T=2.97
T=3.00
T=3.03
T=3.06
T=3.09
T=3.12
T=3.15
T=3.18
T=3.21
41309DSEAL OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41311JCASE, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=1.30,MARK 12
T=1.40,MARK 13
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.25,MARK 17
T=1.35,MARK 18
T=0.90,MARK 19
32 parts on this diagram · 2 diagrams in section
