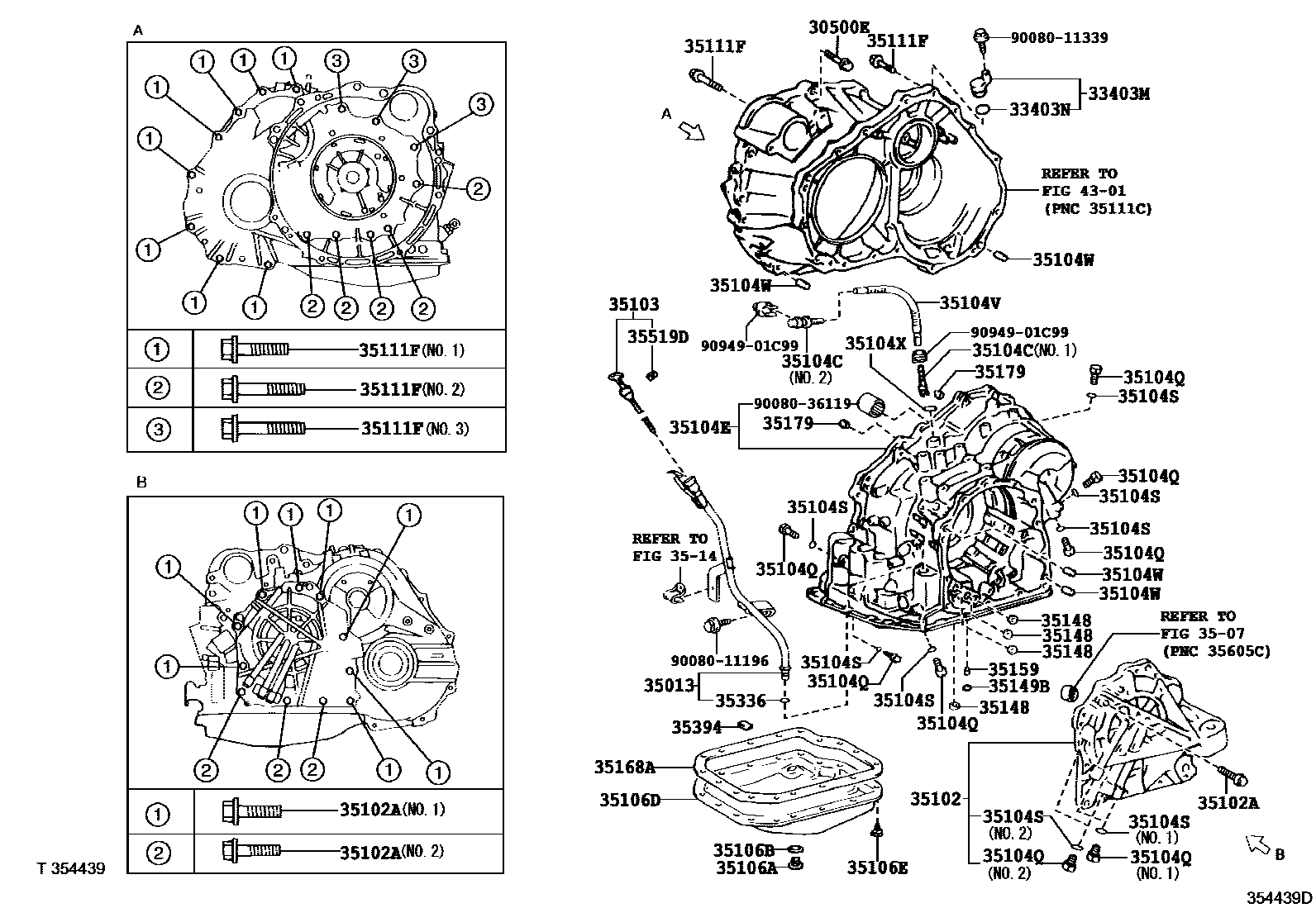

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX55-30
*10-1.25PX41-30
*12-1.25PX55-30
*12-1.25PX65-30
*12-1.25PX50-30
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35102COVER SUB-ASSY, TRANSAXLE REAR
(L)
TYPE B:REFER ILLUST.
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX30-27.5,NO.1; *8-1.25PX30-27.5,NO.2
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104CPLUG, BREATHER, NO.2 (ATM)
NO.2
NO.1
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
NO.2,(L)
NO.1; NO.2,(J)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
NO.2,(L)
NO.1
NO.2,(J)
35104VHOSE (FOR BREATHER PLUG)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
(L)
(J)
35106EBOLT (FOR TRANSAXLE OIL PAN)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX42-30,NO.1
*8-1.25PX50-30,NO.2; *8-1.25PX50-30,NO.3
*8-1.25PX50-30,NO.2,(J); *8-1.25PX50-30,NO.3,(J)
*6-1.00PX50-25,NO.4
3514OIL COOLER & TUBE (ATM)
35148GASKET, GOVERNOR APPLY, NO.1
35149BGASKET, TRANSAXLE CASE 2ND BRAKE
35159GASKET, BRAKE DRUM
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35179GASKET, OVERDRIVE BRAKE
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
(L)
(J)
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
4301FRONT AXLE HOUSING & DIFFERENTIAL
9008011196
main90080-11196
9008011339
main90080-11339
9008036119
main90080-36119
9094901C99
main90949-01C99
34 parts on this diagram · 3 diagrams in section
