TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

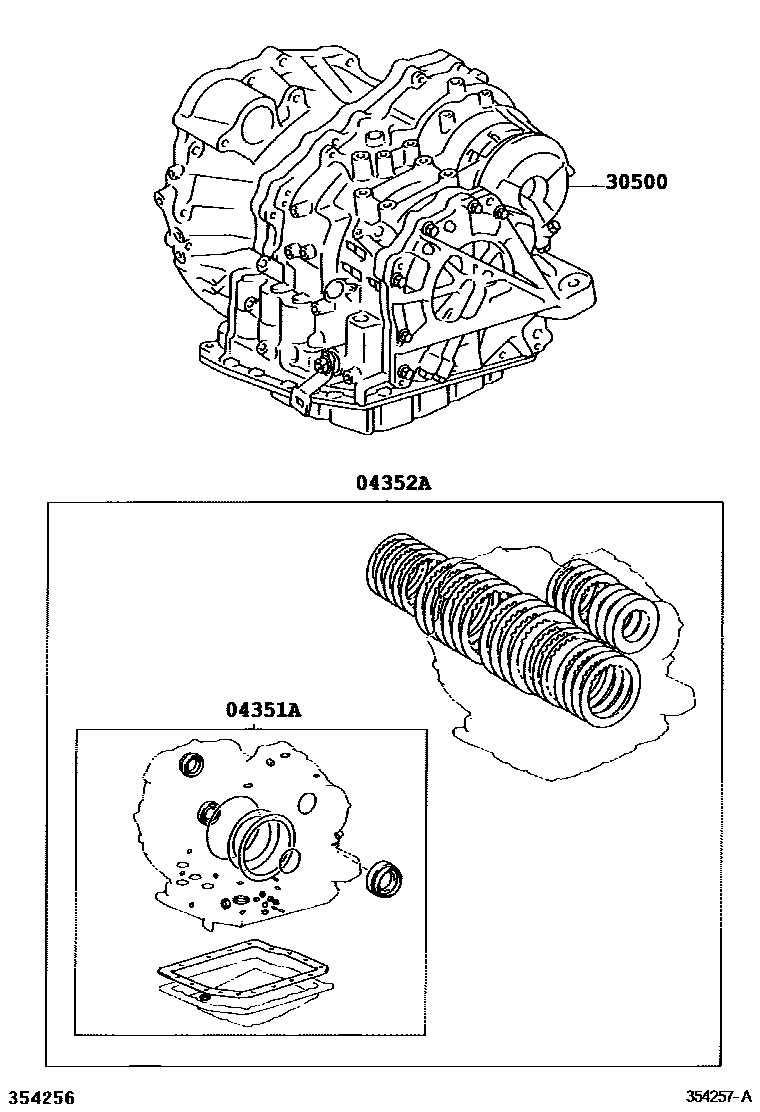

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-08060i200408-200602

main04351-0E020i200602

main04351-0E030i200602

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-08060i200408-200602

main04352-0E020i200602

main04352-0E030i200602

30500TRANSAXLE ASSY, AUTOMATIC

main30500-0E010i200309-200602

U151E

main30500-0E020i200309-200602

U151F

main30500-0E030i200602-200708

U151E

main30500-0E031i200708

U151E

main30500-0E040i200602-200708

U151F

main30500-0E041i200708

U151F

3 parts on this diagram · 1 diagram in section
