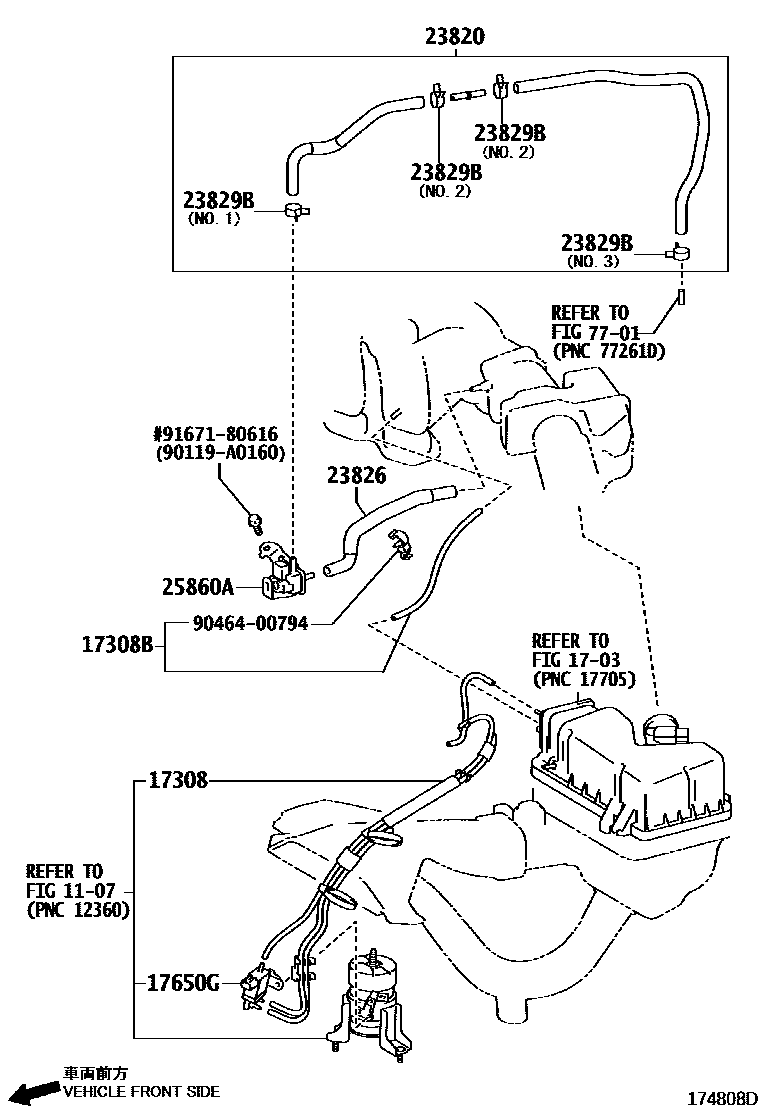

VACUUM PIPING

0001 1 0002 1

1107MOUNTING

→ Go to FIG 11-07

1703AIR CLEANER

→ Go to FIG 17-03

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-0A050i3MZFE..MCU3#..NAP200309

main17308-0A080i2GRFE..GSU3#..NAP200602

17308BHOSE SUB-ASSY, VACUUM

main17308-0A080i3MZFE..MCU3#..NAP200309

main17308-31020i2GRFE..GSU3#..NAP200602-200901

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204i3MZFE..MCU3#..NAP200309

NO.2

main90910-12259i3MZFE..MCU3#..NAP200309

NO.1 90910-12259

main90910-12272i3MZFE..MCU3#..NAP200310

NO.1 90910-12272

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0P080i2GRFE..GSU3#..NAP200602-200901

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P100i2GRFE..GSU3#..NAP200602

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90080-46347×2i3MZFE..MCU3#..NAP200309-200602

NO.2

main90080-46350i3MZFE..MCU3#..NAP200309-200602

NO.3

main90466-A0001i3MZFE..MCU3#..NAP200309-200602

NO.1

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-62010i3MZFE..MCU3#..NAP200309

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-31070i2GRFE..GSU3#..NAP200602

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90119A0160

main90119-A0160

9046400794

main90464-00794

9167180616

main91671-80616

14 parts on this diagram · 2 diagrams in section
