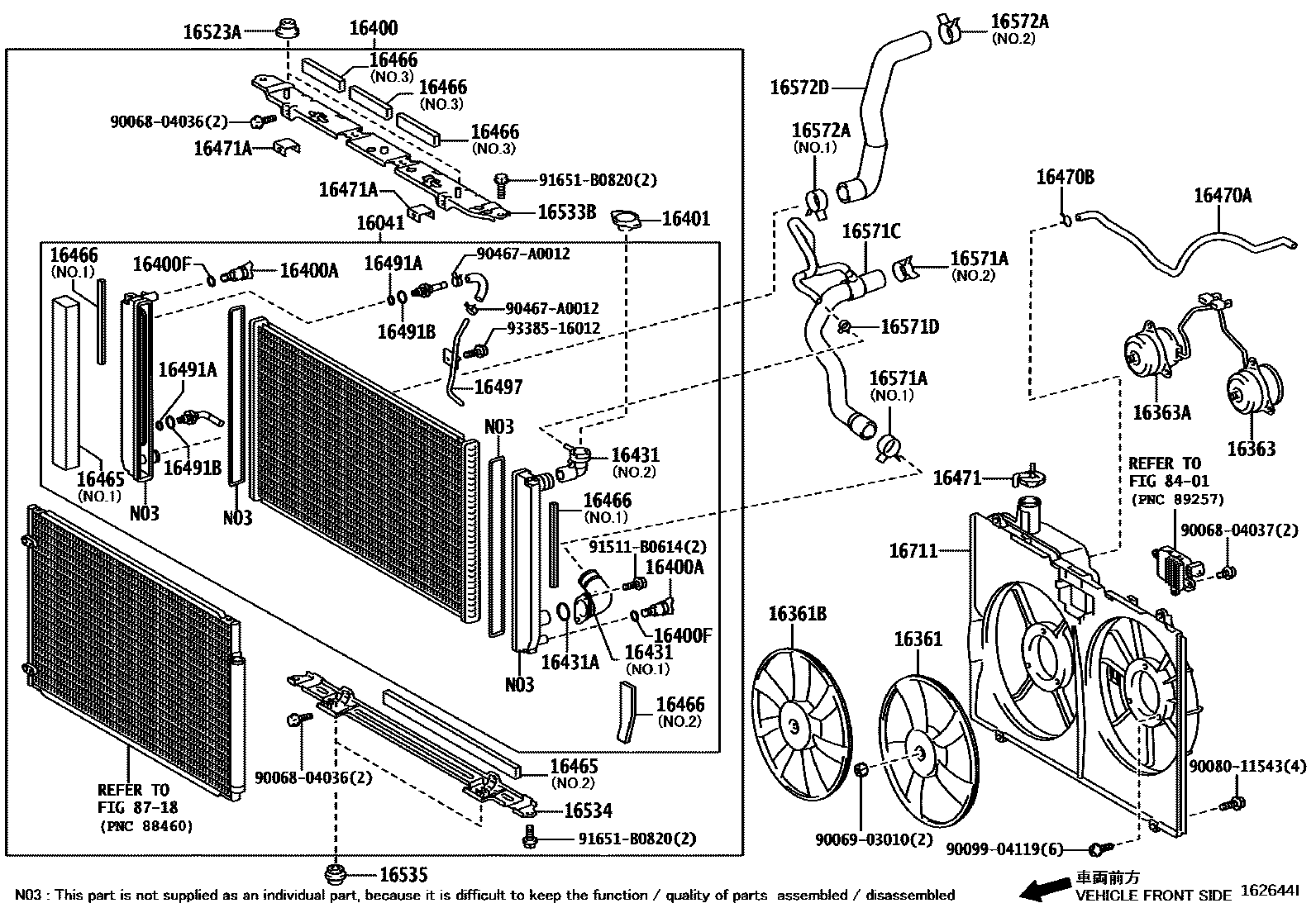

RADIATOR & WATER OUTLET
16041RADIATOR ASSY, NO.2
CRUISE CONTROL-W(RADAR CRUISE); TOWING PACKAGE-3500LBS
CRUISE CONTROL-W(RADAR CRUISE); TOWING PACKAGE-3500LBS
CRUISE CONTROL-W(RADAR CRUISE); TOWING PACKAGE-3500LBS
CANADA SPEC
TOWING PACKAGE-3500LBS
16361FAN
CANADA SPEC
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
CRUISE CONTROL-W(RADAR CRUISE); TOWING PACKAGE-3500LBS
16400RADIATOR ASSY
TOWING PACKAGE-3500LBS
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.1
NO.2
16401CAP SUB-ASSY, RADIATOR
16431INLET, RADIATOR WATER
NO.1
NO.2
16431ARING, O(FOR RADIATOR WATER INLET)
16465PACKING, RADIATOR
NO.2
NO.1
16466SEAL, RADIATOR
NO.1
NO.2
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16471ASUPPORT SUB-ASSY
16491ARING, O(FOR ATM OIL COOLER)
16491BWASHER, PLATE(FOR ATM OIL COOLER)
16497INLET SUB-ASSY
16523ACUSHION, RADIATOR SUPPORT
16533BSUPPORT, RADIATOR, NO.1
16534SUPPORT, RADIATOR, NO.2
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
NO.1
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2
NO.1
16572DHOSE, RADIATOR, NO.2
16711SHROUD, FAN
CRUISE CONTROL-W(RADAR CRUISE); TOWING PACKAGE-3500LBS
8401SWITCH & RELAY & COMPUTER
8718HEATING & AIR CONDITIONING - COOLER PIPING
9006804036
main90068-04036
9006804037
main90068-04037
9006903010
main90069-03010
9008011543
main90080-11543
9009904119
main90099-04119
90467A0012
main90467-A0012
91511B0614
main91511-B0614
91651B0820
main91651-B0820
9338516012
main93385-16012
43 parts on this diagram · 5 diagrams in section
