SHORT BLOCK ASSEMBLY

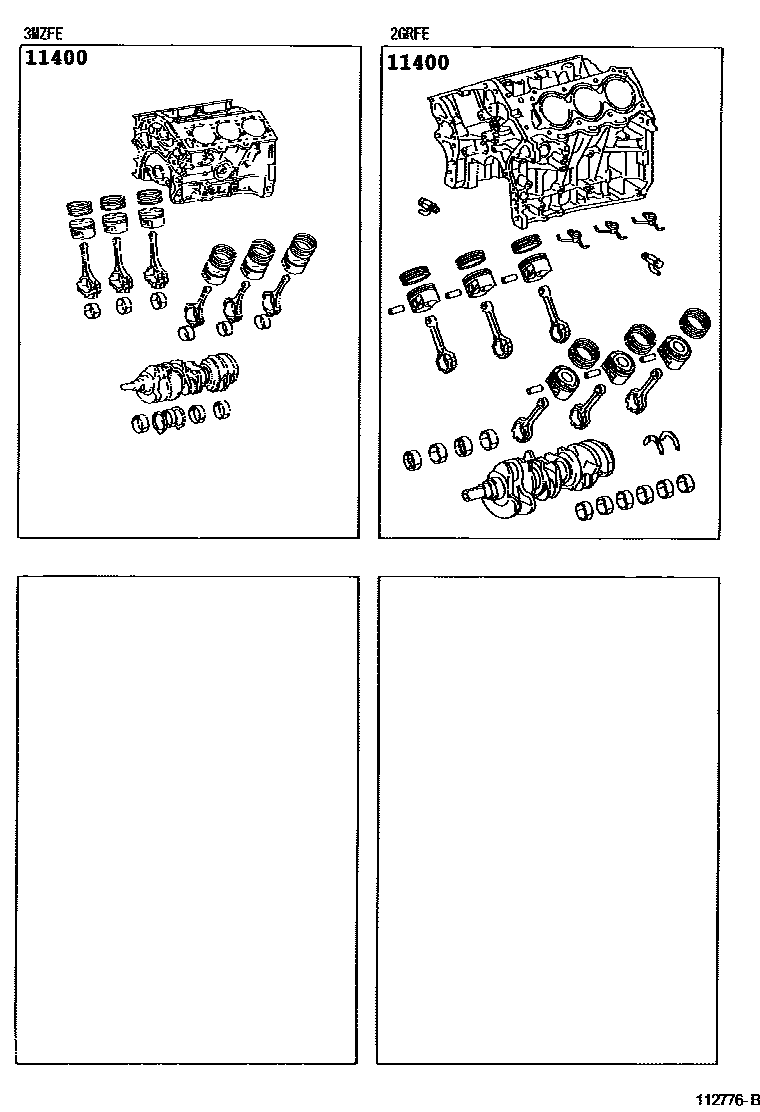

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0A110i200309-200602

main11400-0A120i200309-200602

main11400-0P050i200701

(L)

main11400-31160i200602-200703

(J)

main11400-31161i200703-200905

(J)

1 parts on this diagram · 1 diagram in section
