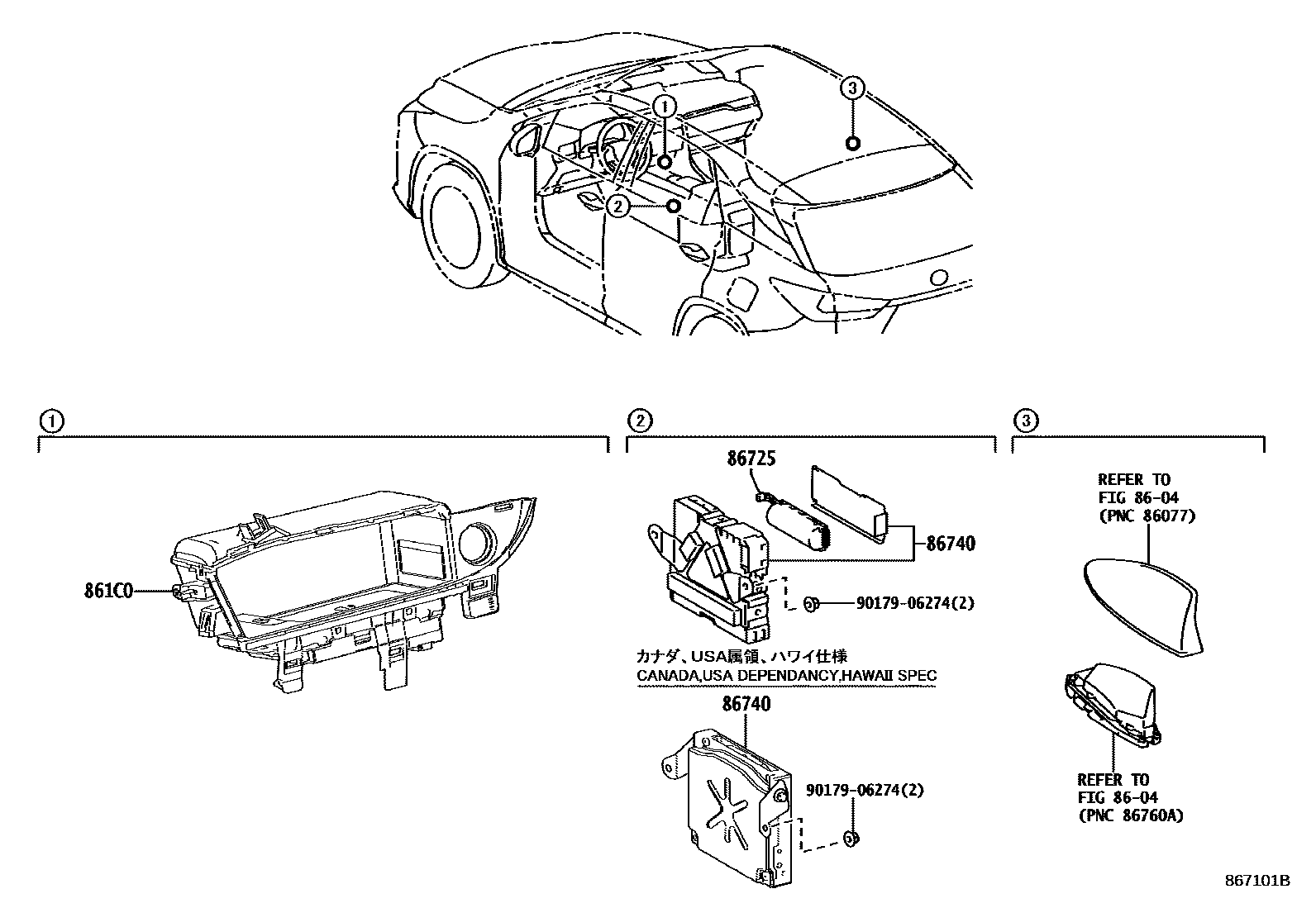

TELEPHONE & MAYDAY

8604ANTENNA

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-48030i201712-201803

AUDIO-*EMV & DVD&WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); AUDIO-*EMV & DVD&WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

main861C0-48031i201804-201908

AUDIO-*EMV & DVD&WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); AUDIO-*EMV & DVD&WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

main861C0-48080i201908-201909

WIRELESS CHARGER-WITH

main861C0-48081i201910

WIRELESS CHARGER-WITH

86725BATTERY, MOBILEPHONE

main86725-06010i201712-201908

CANADA SPEC; HAWAII SPEC; USA DEPENDANCY SPEC

main86725-0E010i201908-202210

KOREA SPEC; USA DEPENDANCY SPEC

86740TRANSCEIVER ASSY, TELEPHONE

main86740-48210i201712-201908

CANADA SPEC; HAWAII SPEC; USA DEPENDANCY SPEC

main86740-48220i201712-201908

CANADA SPEC; CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY); HAWAII SPEC; HAWAII SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); HAWAII SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY); USA DEPENDANCY SPEC; USA DEPENDANCY SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY); USA DEPENDANCY SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

9017906274

main90179-06274

5 parts on this diagram · 2 diagrams in section
