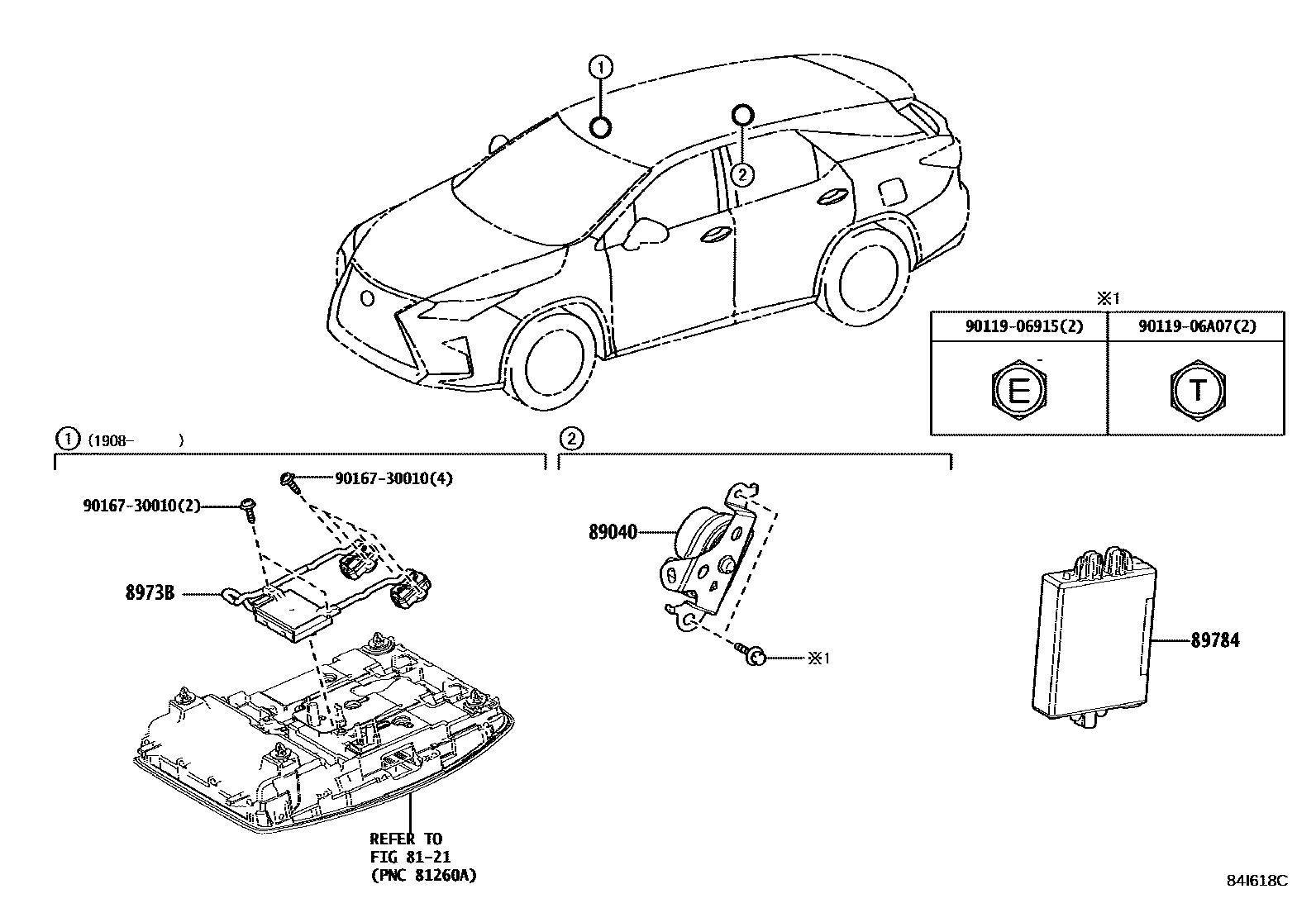

ANTI-THEFT DEVICE

8121INTERIOR LAMP

→ Go to FIG 81-21

89040SIREN ASSY, THEFT WARNING

main89040-48070iGGL2#,GYL26201712-201908

ANTI-THEFT SYSTEM-WITH(SIREN)

8973BSENSOR, THEFT WARNING ULTRASONIC & TILT

main8973B-78020iGYL26201908

ANTI-THEFT SYSTEM-WITH(SILEN & *IS & *INC)

89784COMPUTER, IMMOBILIZER CODE

main89784-12040iGGL2#,GYL26202107

main89784-33020iGGL2#,GYL26201908-202107

main89784-47030iGGL2#,GYL26201712-201908

9011906915

main90119-06915

9011906A07

main90119-06A07

9016730010

main90167-30010

7 parts on this diagram · 1 diagram in section
