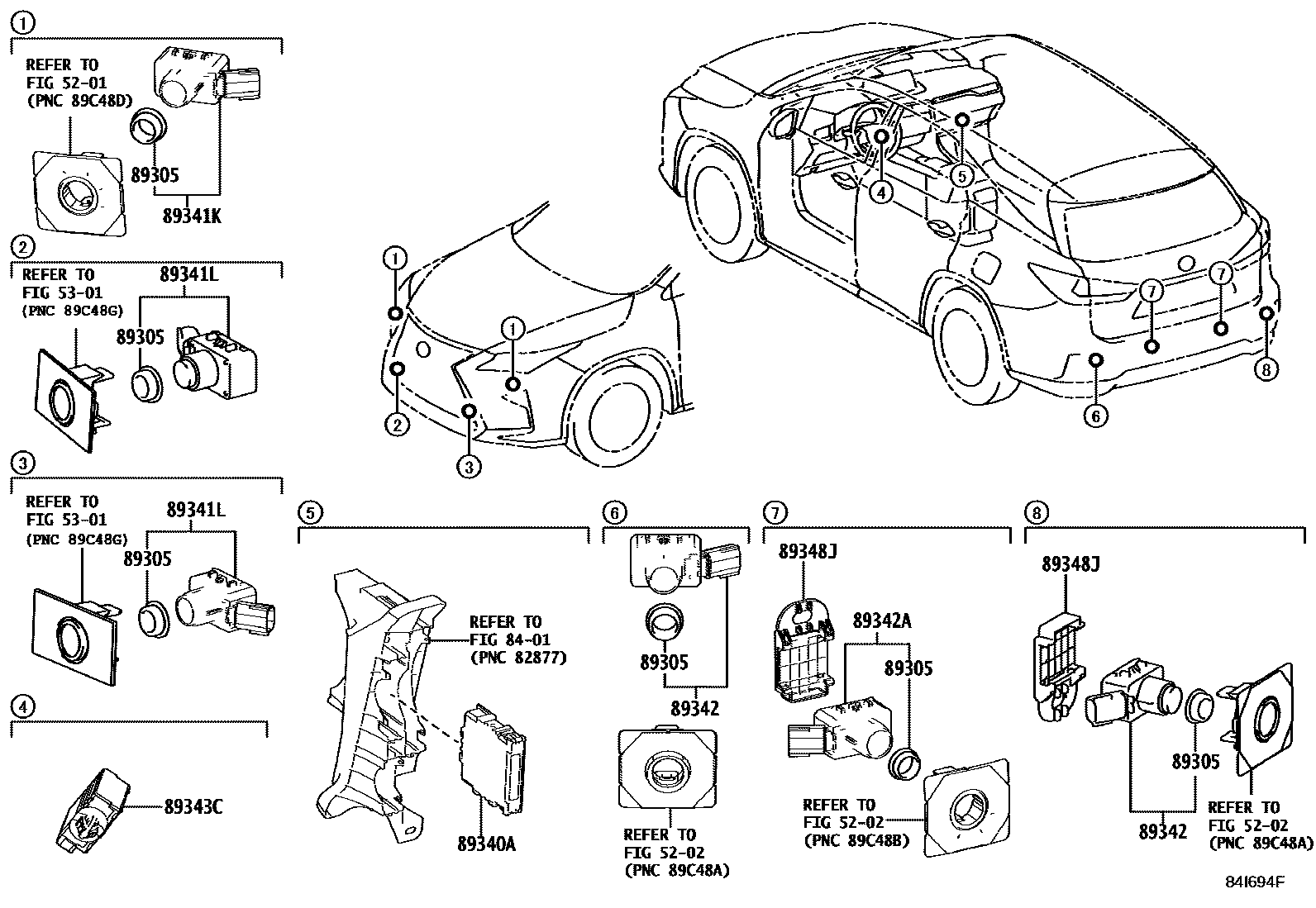

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
5301RADIATOR GRILLE
8401SWITCH & RELAY & COMPUTER
89305CUSHION SET, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
KOREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT); PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
89341KSENSOR, ULTRASONIC, FRONT CORNER
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),BLACK,212
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ICE ECRU M.M.,4X8
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TERRANE KHAKI M.M.,6X4
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT),SONIC CHROME,1L1; PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR),SONIC CHROME,1L1
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT),SONIC IRIDIUM,1L2; PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR),SONIC IRIDIUM,1L2
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SONIC QUARTZ,085; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SONIC QUARTZ,085
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),MERCURY GRAY MC.,1H9; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SONIC TITANIUM,1J7
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),PLATINUM SILVER ME.,1J4; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),BLACK,212; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),BLACK,212
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),RED MC.CS.,3R1; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SLEEK ECRU ME.,4U7
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),AMBER CS.,4X2; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),AMBER CS.,4X2
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),DEEP BLUE MC.,8X5; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DEEP BLUE MC.,8X5
89341LSENSOR, ULTRASONIC, FRONT CENTER
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),MAT BLACK
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),DUMMY-MAT BLACK; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DUMMY-MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),BLACK,212
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ICE ECRU M.M.,4X8
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TERRANE KHAKI M.M.,6X4
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT),SONIC CHROME,1L1; PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR),SONIC CHROME,1L1
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT),SONIC IRIDIUM,1L2; PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR),SONIC IRIDIUM,1L2
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SONIC QUARTZ,085; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SONIC QUARTZ,085
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),MERCURY GRAY MC.,1H9; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SONIC TITANIUM,1J7
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),PLATINUM SILVER ME.,1J4; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),BLACK,212; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),BLACK,212
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),RED MC.CS.,3R1; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SLEEK ECRU ME.,4U7
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),AMBER CS.,4X2; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),AMBER CS.,4X2
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),DEEP BLUE MC.,8X5; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DEEP BLUE MC.,8X5
89342ASENSOR, ULTRASONIC, REAR CENTER
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),BLACK,212
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),GRAPHITE BLACK GF.,223
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),ICE ECRU M.M.,4X8
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),TERRANE KHAKI M.M.,6X4
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT),SONIC CHROME,1L1; PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR),SONIC CHROME,1L1
PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&LANE CHANGE ASSIST-WITH(*BSM & REARCROSS TRAFFIC ALERT),SONIC IRIDIUM,1L2; PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR),SONIC IRIDIUM,1L2
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SONIC QUARTZ,085; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SONIC QUARTZ,085
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),MERCURY GRAY MC.,1H9; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SONIC TITANIUM,1J7; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SONIC TITANIUM,1J7
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),PLATINUM SILVER ME.,1J4; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),BLACK,212; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),BLACK,212
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),GRAPHITE BLACK GF.,223; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),RED MC.CS.,3R1; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),SLEEK ECRU ME.,4U7; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SLEEK ECRU ME.,4U7
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),AMBER CS.,4X2; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),AMBER CS.,4X2
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB),DEEP BLUE MC.,8X5; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DEEP BLUE MC.,8X5
89343CBUZZER, CLEARANCE WARNING, NO.1
KOREA SPEC&PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
89348JCLIP, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
12 parts on this diagram · 2 diagrams in section
